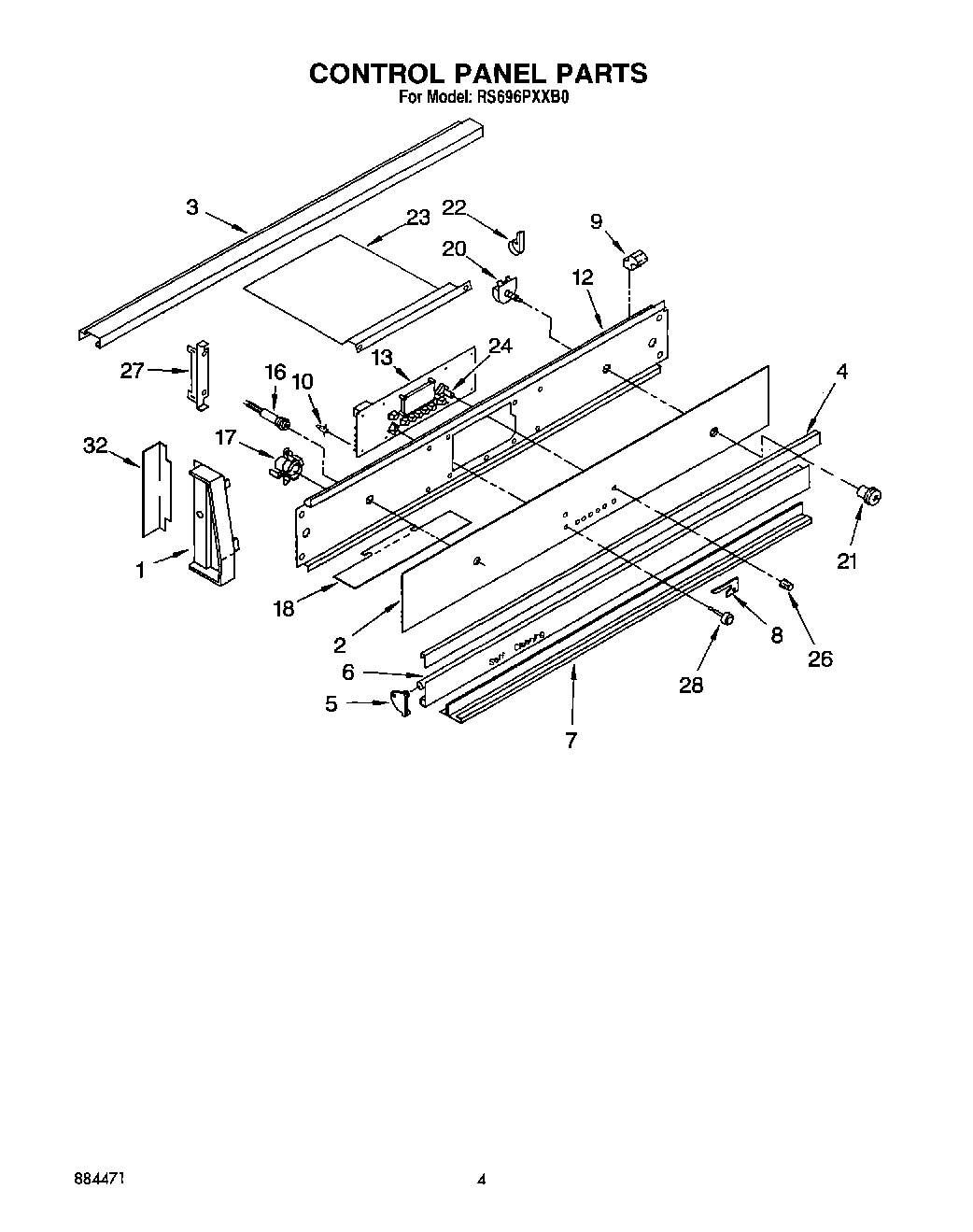

RS696PXXB0 03 – CONTROL PANEL

Products

Position	Product
1	End Cap (L.H.)
1	End Cap (R.H.)
2	Glass, Control Panel
3	Rail, Top
4	Trim, Center (Black)
5	End Trim, Vent (Left Side)
5	End Trim, Vent (Right Side)
6	Door, Vent
6	Screw, 10-32 x 1/2
7	Trim, Bottom
8	Shield, Air
9	Retainer, Glass (4)
10	Support, Circuit Board
12	Bracket, Control
13	Control, Timer
16	Light, Indicator
17	Thermostat, Oven
17	WP313808 Whirlpool Screw
18	Shield, Control
20	Lockwasher
20	Switch, Oven Light
21	Bezel Switch (1)
22	WP308605 Whirlpool Refrigerator Clamp
23	Shield, Heat
24	Shaft, Bit Generator
26	Knob, Bit Generator (Black)
27	Bracket, Control (2)
27	Screw (2)
28	WPL 313958
32	Trim, End Cap (Black)
