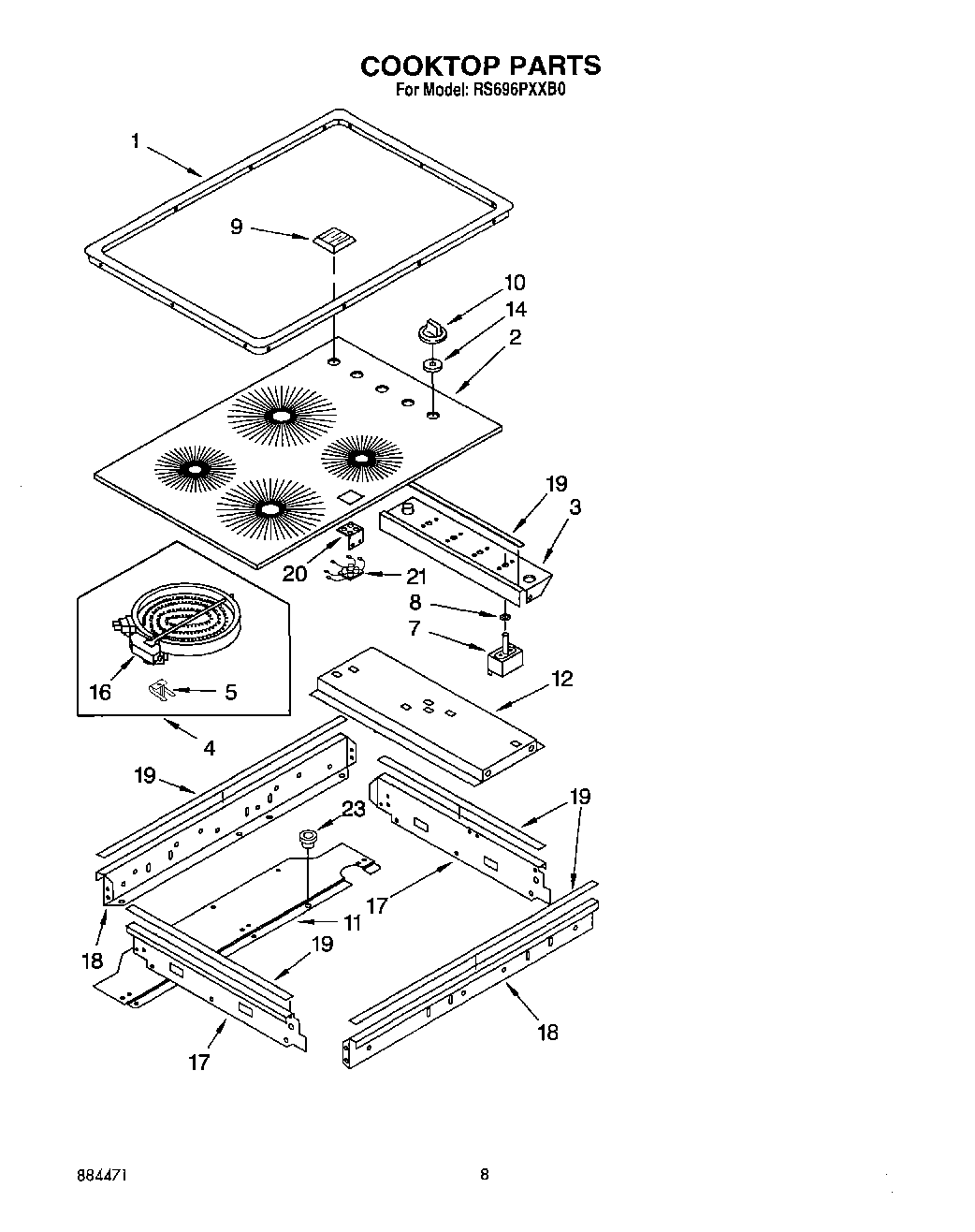

RS696PXXB0 06 – COOKTOP

Products

Position	Product
1	Trim Ring, Cooktop (Black)
1	WP308685 Whirlpool Microwave Screw
2	Cooktop, Glass
3	Bracket, Switch Mounting
4	Element, Surface (Includes No. 1, No. 3) (200 MM – RF)
4	Element, Surface (Includes No. 1, No. 3) (180 MM – LR)
4	Element, Surface (Includes No. 1, No. 3) (230 MM – RR)
4	WP8185663 Whirlpool Surface Element
5	WP486754 Whirlpool Compactor Screw
5	Spring, Locator
7	W10900107 Whirlpool Oven Surface Element Switch
7	Switch, Infinite (Use W/1400W Left Rear Burner)
7	WP486579 Whirlpool Air Conditioner Screw
7	Switch, Inifinite (Rear Burner (Orange Shaft))
7	Switch, Inifinite (Front Burner (Green Shaft))
8	Seal, Switch Shaft (2)
9	Cover, Vent
10	Knob, Control (4)
11	Cover, Top Rear
12	Support, Element
14	Seal, Inifinite Switch
16	Limiter, Temp. (200 MM – RF)
16	Limiter, Temp. (180 MM – LR)
16	Limiter Temp. (8“ – RR)
16	Limiter, Temp. (250 mm (LF))
17	Rail, Side (Right Hand)
17	Rail, Side (Left H
18	WPL 3181646
18	WPL 3183380
19	Seal, Sili
19	WPL 3181645
20	WP488729 Whirlpool Refrigerator Door Screw
20	WPL 3150321
21	WPL 3150304
23	WPL 258109
