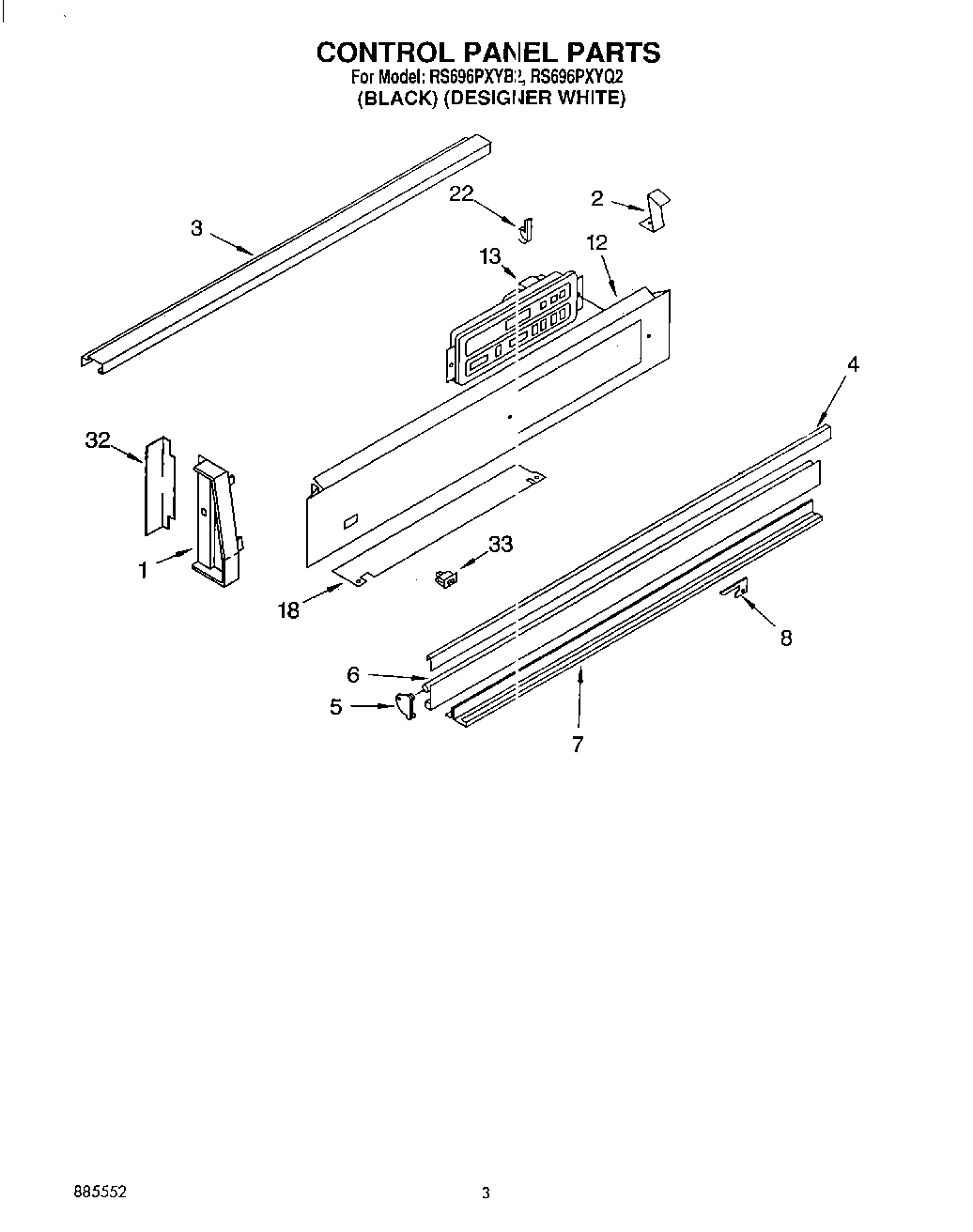

RS696PXYB2 02 – CONTROL PANELadmin2025-04-26T10:57:22+00:00RS696PXYB2 02 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | End Cap (L.H.) |
| 1 | End Cap Black (Right Hand) |
| 1 | End Cap Black (Left Hand) |
| 1 | End Cap (R.H.) |
| 2 | Bracket, Control |
| 3 | Rail, Top |
| 4 | Trim, Center (Black) |
| 4 | Trim, Center (White) |
| 5 | End Trim, Vent (Right Side) |
| 5 | End Trim, Vent (Left Side) |
| 5 | Trim, Vent Door (Brite Aluminum, L.H.) |
| 5 | Trim, Vent Door (Brite Aluminum, R.H.) |
| 6 | Door, Vent (Brushed Aluminum) |
| 6 | Door, Vent (Black) |
| 7 | Screw, 10-32 x 1/2 |
| 7 | Trim, Bottom |
| 8 | Shield, Air |
| 12 | Panel, Control (White) |
| 12 | Panel, Control (Black) |
| 13 | Screw (2) |
| 13 | Control, Electronic (White) |
| 13 | Control, Electronic (Black) |
| 18 | Shield, Control |
| 22 | WP488729 Whirlpool Refrigerator Door Screw |
| 22 | 488946 Whirlpool Air Conditioner Clamp |
| 32 | Trim, End Cap (White) |
| 32 | Trim, End Cap (Black) |
| 33 | Switch, Rocker (White) |
| 33 | Switch, Rocker |
