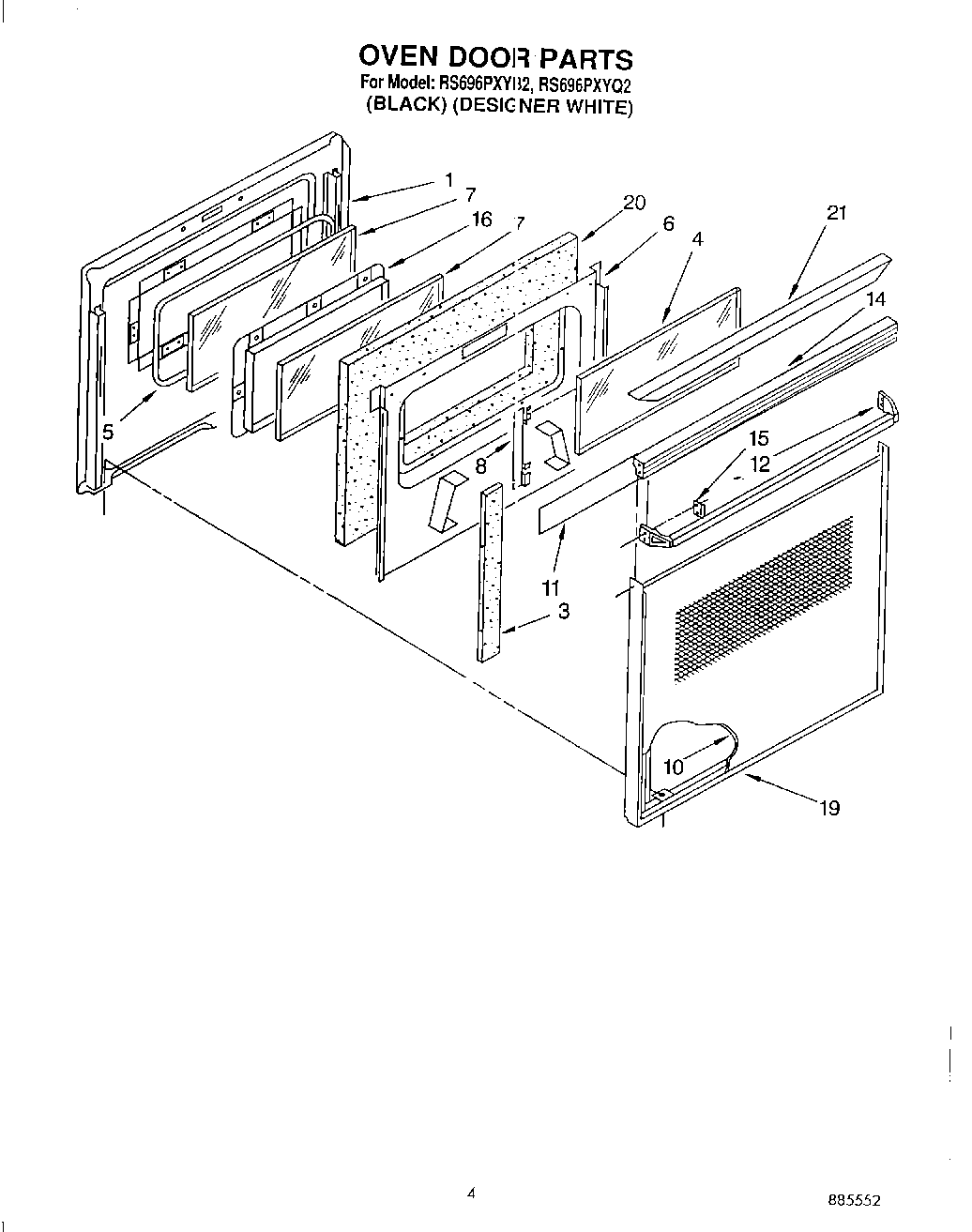

RS696PXYB2 03 – OVEN DOOR

Products

PositionProduct
1Liner, Door
3Seal, Flange (2)
4Glass, Clear
5Seal, Door
6Retainer,
7WP3169203 Whirlpool Door Glass
8Retainer, Glass (2)
10Glass, Panel (Black Model)
10Glass, Panel (White)
11Foil, Door
12Handle, Oven Door
12Handle, Door (White)
14Top, Door (Black Model)
14Top, Door (White Model)
15Clip, Mtg (2)
16Screw
16Frame, Inner
19Frame, Door
20Insulation, Door
21Cap, Top
21WP355515 Whirlpool Screw
