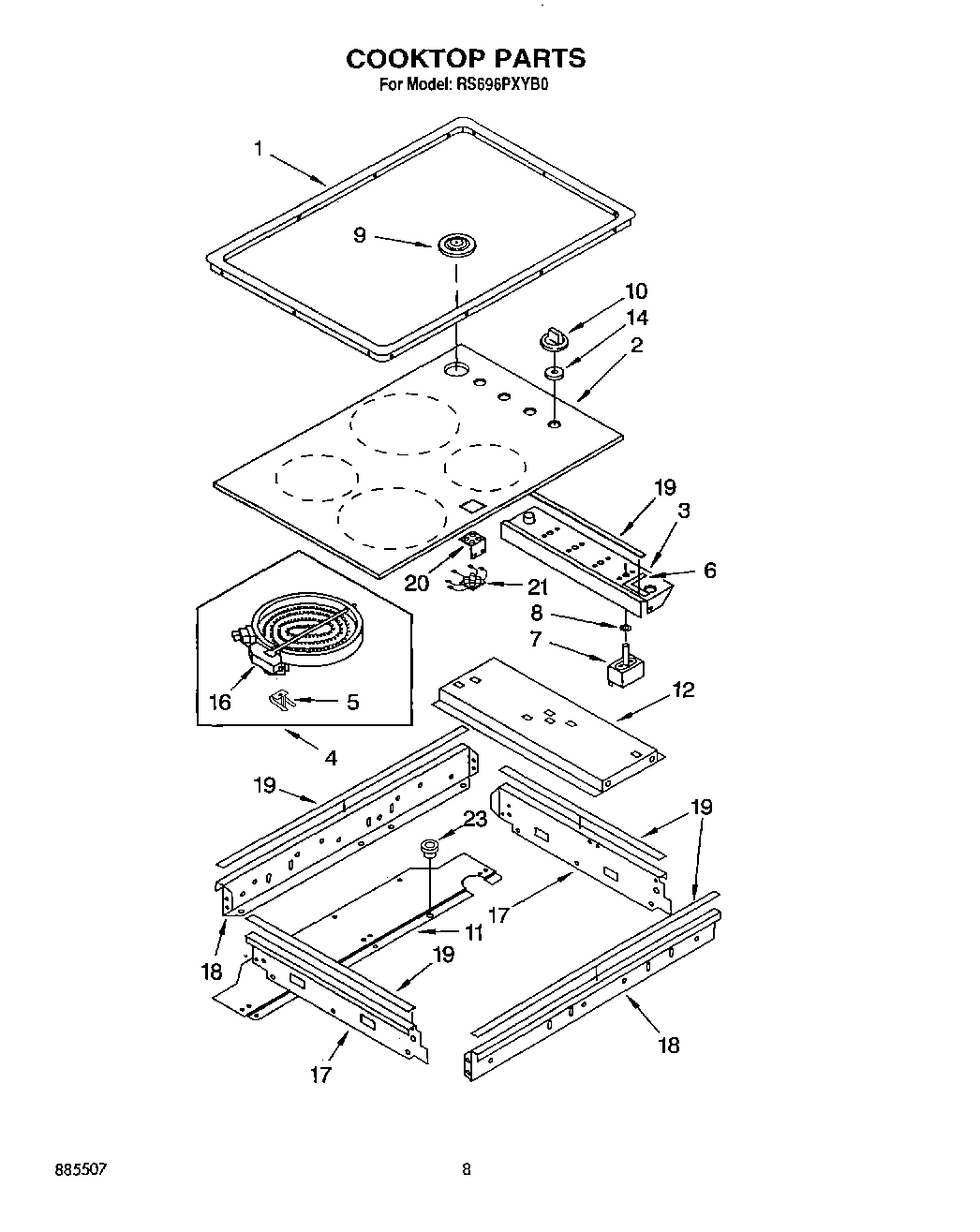

RS696PXYQ0 06 – COOKTOP

Products

Position	Product
1	Trim Ring, Cooktop (White)
1	Trim Ring, Cooktop (Black)
1	Vent, Lower Trim (Screw (2))
2	Cooktop, Glass (White)
2	Cooktop, Glass (Black)
3	Bracket, Switch Mounting
4	WP8185663 Whirlpool Surface Element
4	Element, Surface (1400W Left Rear)
4	Element, Surface (1700W Right Front)
4	Element, Surface (2100W Right Rear)
5	WP486754 Whirlpool Compactor Screw
5	Spring, Locator
6	Seal, Cooktop
7	W10900107 Whirlpool Oven Surface Element Switch
7	Switch, Infinite (Use W/1400W Left Rear Burner)
7	Switch, Inifinite (Rear Burner (Orange Shaft))
7	Switch, Inifinite (Front Burner (Green Shaft))
7	WP486579 Whirlpool Air Conditioner Screw
8	Seal, Switch Shaft (2)
9	Cover, Vent (White)
9	Cover, Vent (Black)
10	WP3183119 Whirlpool Knob Assembly
10	Knob, Control (4)
11	Cover, Top Rear
12	Support, Element
14	Seal, Inifinite Switch
16	Limiter, Temp. (6“ L.R.)
16	Limiter Temp. (7“ – RF)
16	Limiter, Temperature (Use W/3183649 Element)
16	Limiter, Temperature (Use W/3183648 Element)
17	Rail, Side (Right Hand)
17	Rail, Side (Left H
18	WPL 3183380
18	WPL 3181646
19	WPL 3181645
19	Seal, Sili
20	WPL 3150321
20	WP488729 Whirlpool Refrigerator Door Screw
21	WPL 3150304
23	WPL 258109
