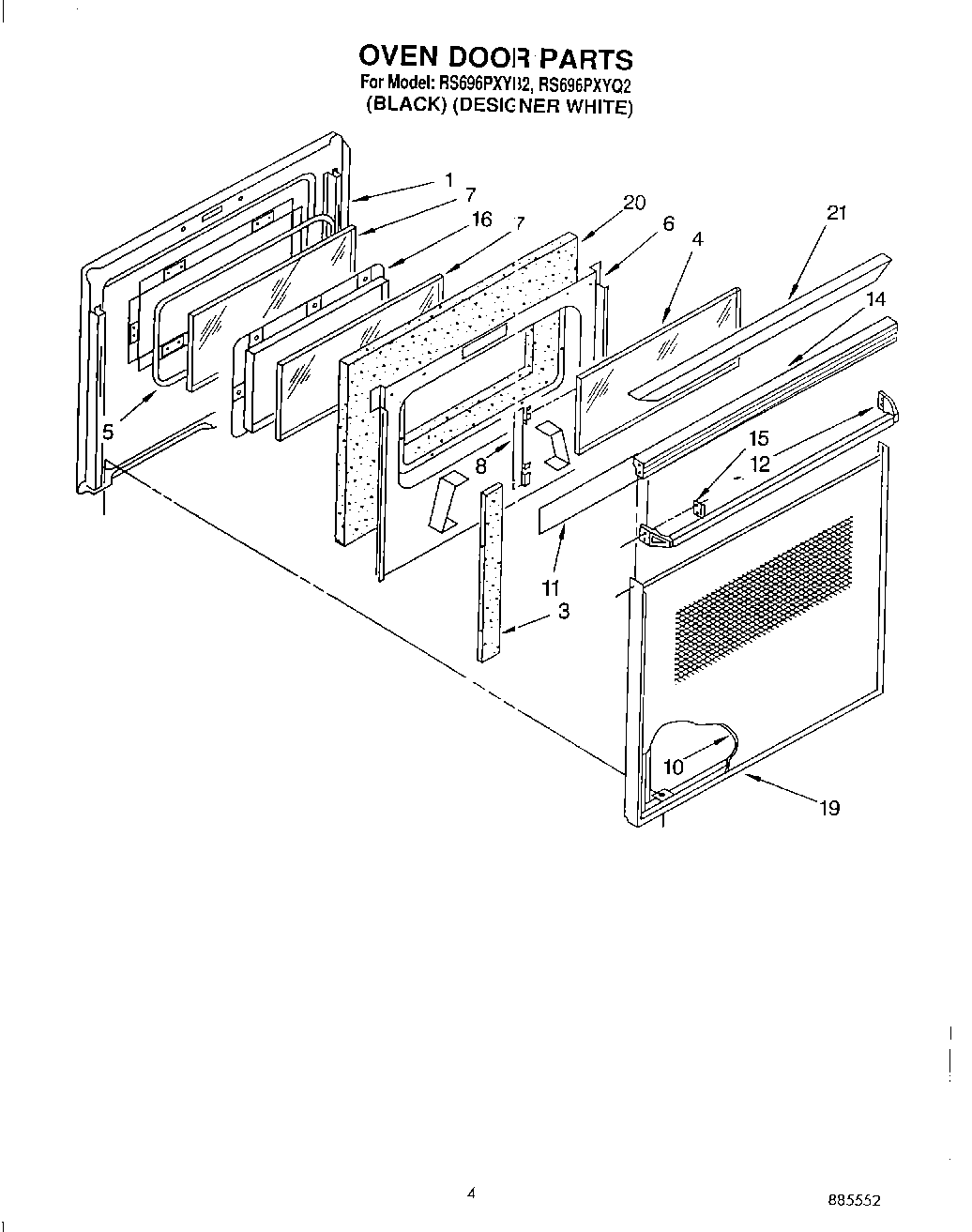

RS696PXYQ2 03 – OVEN DOOR

Products

Position	Product
1	Liner, Door
3	Seal, Flange (2)
4	Glass, Clear
5	Seal, Door
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
10	Glass, Panel (Black Model)
10	Glass, Panel (White)
11	Foil, Door
12	Handle, Oven Door
12	Handle, Door (White)
14	Top, Door (Black Model)
14	Top, Door (White Model)
15	Clip, Mtg (2)
16	Screw
16	Frame, Inner
19	Frame, Door
20	Insulation, Door
21	Cap, Top
21	WP355515 Whirlpool Screw
