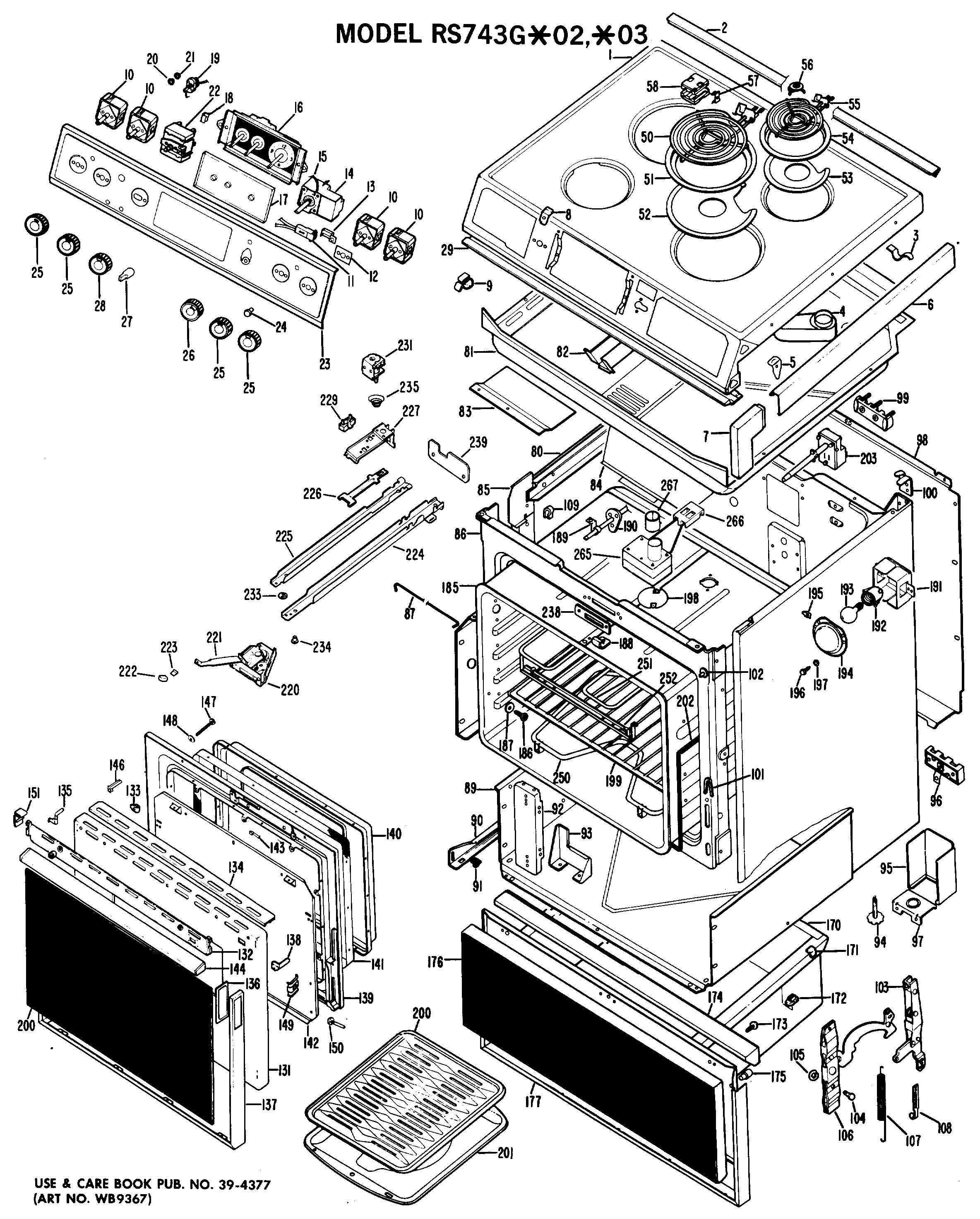

RS743G*02

RS743G*02

Written by

in

RS743G*02

Products

Position	Product
1	SCREW MTG. COOKTOP
1	GEN WB62X5276
2	GEN WB07X5664
3	CLIP LEAD
4	BODY VENT
5	CLIP TRIM
6	GEN WB07X6666
6	GEN WB07X6665
7	GEN WB07X6668
7	GEN WB07X6667
7	GEN WB01X0271
8	GEN WB02X6760
8	WB1X5364 GE Oven Mounting Screw
9	GEN WB02X6761
10	WB21X36771 GE Surface Element Switch
11	NEON LAMP 118V
11	NEON LAMP – 240V
12	GEN WB02X3383
14	GEN WB24X0184
15	GEN WB02X6762
16	GEN WB19X5249
17	GEN WB36X5395
18	GEN WB02X2901
19	GEN WB24X0166
20	GEN WB01X0588
21	NUT SWITCH
22	GEN WB22X5090
22	SCR 8/32 TF FLR 5/16 S
23	GEN WB07X6669
24	CLIP MTG LAMP
24	WB25X65 GE Oven Light Indicator
25	GEN WB03X0440
26	GEN WB03X0452
27	GEN WB03X0218
28	GEN WB03X0428
29	GEN WB07X1100
50	GEN WB01X5485
50	WB30X348 GE Oven 8" Surface Unit Element with Screw
51	TRIM RING 8"
52	WB32X10013 GE Oven 8" Chrome Drip Pan
53	WB32X10012 GE Oven Range Cooktop 6" Chrome Drip Pan
54	WB31X5013 GE Oven 6" Chrome Trim Ring
55	WB30X359 GE Oven Range Stove 6" Surface Element Burner Unit
56	GEN WB32X0052
56	GEN WB32X0051
56	WB1X500D GE Oven Screw Package
57	CLIP INSULATOR
58	WB2X1351 GE Oven Terminal Block
58	TERM BLOCK SINGLE COIL
80	GEN WB02X3229
81	GEN WB49X5204
82	GEN WB02X6769
83	GEN WB02X6770
84	GEN WB02X6764
84	GEN WB02X6763
85	GEN WB02X6765
85	GEN WB02X6766
86	GEN WB02X3240
86	GEN WB56X5861
86	FRONT FRAME
87	GEN WB02X6767
88	GUARD UPPER-RH
88	GEN WB49X5221
88	GUARD UPPER-LH
88	GEN WB49X5222
89	GEN WB49X5156
90	GUIDE DRAWER LH
90	GUIDE DRAWER RH
91	SLIDE GUIDE
92	GEN WB02X6768
93	GEN WB02X6187
94	GEN WB01X5519
94	GEN WB01X5533
94	GEN WB02X6772
95	GEN WB02X6655
96	PLATE GROUND
96	WZ4X345D GE Screw Package 12 C92
96	SCR 10-16 B SL 1-1/8 S
96	WB17X5095 GE Black Oven Terminal
97	BRACKET KNOCKOUT
98	GEN WB49X5201
99	BLOCK TERM DISTRIBUTION
100	GEN WB02X6185
100	GEN WB02X6184
100	GEN WZ05X0211
101	GEN WB02X6342
102	SWITCH, OVEN LIGHT
103	WB1X119D GE Oven Range Washer
103	GEN WB10X5091
103	GEN WB01X0570
103	GEN WB10X5090
103	GEN WB01X5497
104	GEN WB02
