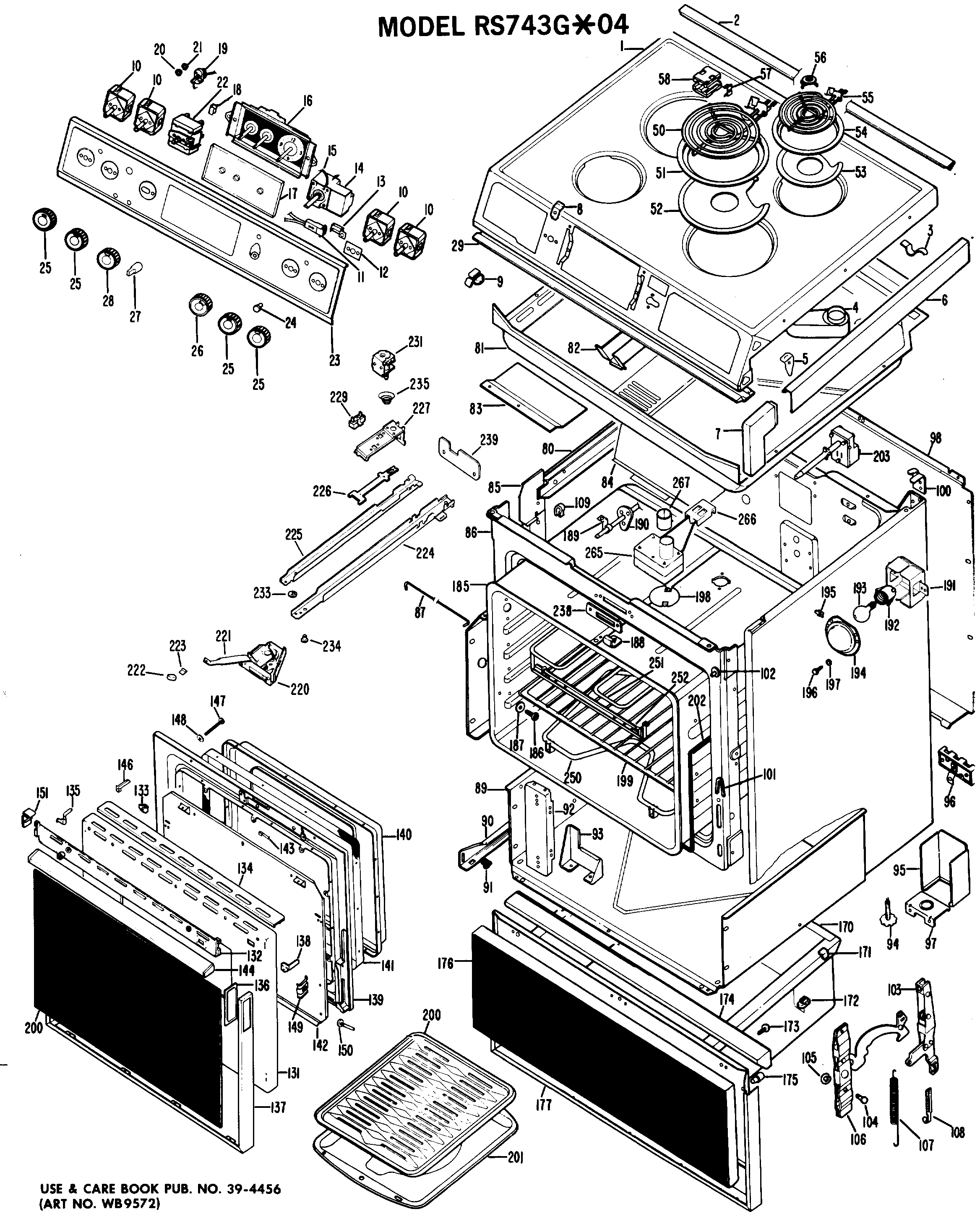

Aparts

RS743G*04

RS743G*04

Written by

in

RS743G*04

Products

PositionProduct
1GEN WB62X5276
2GEN WB07X5664
3CLIP LEAD
4BODY VENT
5CLIP TRIM
6GEN WB07X6665
6GEN WB07X6666
7GEN WB07X6667
7GEN WB01X0271
7GEN WB07X6668
8WB1X5364 GE Oven Mounting Screw
8GEN WB02X6760
9GEN WB02X6761
10WB21X36771 GE Surface Element Switch
11NEON LAMP 118V
11NEON LAMP – 240V
12GEN WB02X3383
14GEN WB24X0184
15GEN WB02X6762
16GEN WB19X5249
17GEN WB36X5395
18GEN WB02X2901
19GEN WB24X0166
20GEN WB01X0588
21NUT SWITCH
22GEN WB22X5090
23GEN WB07X6669
24CLIP MTG LAMP
24WB25X65 GE Oven Light Indicator
25GEN WB03X0440
26GEN WB03X0452
27GEN WB03X0218
28GEN WB03X0428
29GEN WB07X1100
50WB30X348 GE Oven 8" Surface Unit Element with Screw
51TRIM RING 8"
52WB32X10013 GE Oven 8" Chrome Drip Pan
53WB32X10012 GE Oven Range Cooktop 6" Chrome Drip Pan
54WB31X5013 GE Oven 6" Chrome Trim Ring
55WB30X359 GE Oven Range Stove 6" Surface Element Burner Unit
56WB1X500D GE Oven Screw Package
56GEN WB32X0052
56GEN WB32X0051
57CLIP INSULATOR
58TERM BLOCK SINGLE COIL
58WB2X1351 GE Oven Terminal Block
80GEN WB02X7006
80GEN WB02X3229
81GEN WB49X5204
82GEN WB02X6769
83GEN WB02X6770
84GEN WB02X6764
84GEN WB02X6763
85GEN WB02X6765
85GEN WB02X6766
86GEN WB56X5861
86GEN WB02X3240
87GEN WB02X6767
88GEN WB49X5221
88GEN WB49X5222
89GEN WB49X5156
90GUIDE DRAWER LH
90GUIDE DRAWER RH
91SLIDE GUIDE
92GEN WB02X6788
93GEN WB02X6187
94GEN WB01X5519
94GEN WB02X6772
94GEN WB01X5533
95GEN WB02X6655
96WB17X5095 GE Black Oven Terminal
96PLATE GROUND
97BRACKET KNOCKOUT
98GEN WB49X5201
100GEN WB02X6184
100GEN WB02X6185
101GEN WB02X6342
102SWITCH, OVEN LIGHT
103WB1X119D GE Oven Range Washer
103GEN WB01X0570
103GEN WB10X5090
103GEN WB10X5091
103GEN WB01X5497
104GEN WB02X6195
105RING RETAINING
106HINGE LEVER ASM RH & LH
107GEN WB09X5075
108HOOK DOOR SPRING
109CLAMP HARNESS
130GEN WB36X0554
131GEN WB56X5678
131GEN WB02X6366
132GEN WB07X5629
133GEN WB02X3053
134GEN WB07X5630
135GEN WB02X6575
136GEN WB02X6573
137WZ4X345D GE Screw Package 12 C92
137GEN WB07X5625
138GEN WB02
