RS744GN2

RS744GN2

Written by

in

RS744GN2

Products

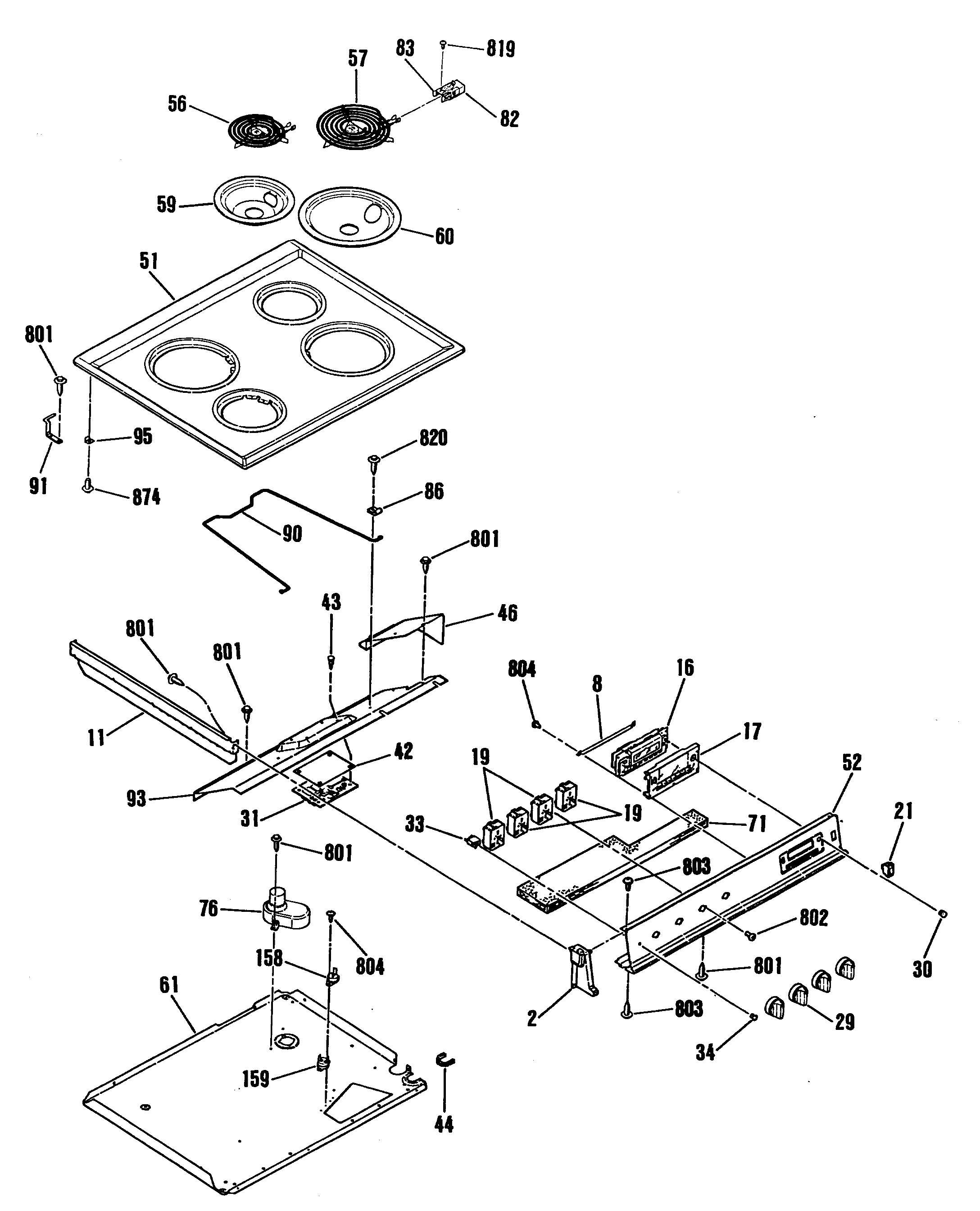

Position	Product
2	END CAP-RT
2	END CAP-LT
8	UNKNOWN
9	UNKNOWN
11	UNKNOWN
16	UNKNOWN
17	UNKNOWN
19	WB23M24 GE Stove Range Infinite Switch 1500W Cooktop Surface Burner
19	WB23K5027 GE Stove Range Oven Infinite Control Burner Switch
21	GEN WB24X0415
29	UNKNOWN
30	UNKNOWN
31	UNKNOWN
33	WB25T10040 GE Oven Light Indicator
34	LENS
42	GEN WB34K5092
43	PC BOARD SPACER
44	UNKNOWN
44	UNKNOWN
46	UNKNOWN
51	MAINTOP-CHROME
52	GEN WB36K5054
56	WB30M1 GE Oven Range Cooktop Burner Unit 6 Inch
57	WB30M2 GE Oven Range Stove Cooktop Burner Unit 8 Inch
59	BOWL BURNER 6 (CH)
60	GEN WB31M0015
71	UNKNOWN
76	UNKNOWN
82	WB17X210 GE Oven Range Cooktop Burner Receptacle Block Kit
83	WB17X211 GE Oven Terminal Clip Black
86	WB2M87 GE Oven Support Rod Clamp
90	UNKNOWN
91	UNKNOWN
91	UNKNOWN
93	UNKNOWN
95	WB10X255 GE Oven Hinge Bracket
102	OVEN DOOR INSULATION
111	GEN WB55M0010
112	UNKNOWN
113	INSULATION RETAINER
114	GEN WB02M0001
116	GEN WB02X9178
121	UNKNOWN
122	OV DR INTERMED GLASS-UP
123	CENTER GLASS
124	OV DR INNER GLASS
125	DOOR FRAME INSULATOR
130	GEN WB02M0045
131	WB2X9168 GE Oven Seal
132	WB2X9373 GE Oven Gasket
133	FELT WASHER
136	OVEN DOOR HANDLE
140	UNKNOWN
143	DR HANDLE SPACER
146	GEN WB02M0046
151	UNKNOWN
158	UNKNOWN
159	UNKNOWN
178	UNKNOWN
184	DOOR LOCK PLATE
185	LOCK LEVER ASM
195	GEN WB09X0243
201	GEN WB63M0040
202	GEN WB63M0057
203	GEN WB63M0056
204	GEN WB58X0065
211	GEN WB02M0004
212	GEN WB02K5093
216	GEN WB34M0044
217	WIRE SHIELD-UPPER
218	GEN WB02X9426
219	GEN WB34M0006
221	GEN WB63M0024
221	GEN WB63M0025
222	LOWER FRONT PANEL
226	LOWER DOOR HANDLE
231	GEN WB35M0022
232	INSULATION BACK & BOTTOM
233	INSULATION-TOP SIDES
235	GEN WB34M0043
241	OVEN RACK-LOWER OVEN
246	WB48X10056 GE Broil Pan Set, Large Porcelain
251	WB44K5012 GE Oven Bake Element
252	WB44X232 GE Oven Broil Element
253	WB21X5301 GE Range Stove Oven Temperature Sensor Probe 6" Length
255	WB17X5095 GE Black Oven Terminal
257	GEN BUY-LOCAL
259	OVEN LAMP LENS
261	OV LIGHT DOOR SWITCH
261	WB24T10147 GE Oven SPDT Light Switch
262	SIDE TRIM-RT
262	SIDE TRIM-LT
264	UNKNOWN
265	GEN WB34K5052
266	BASE ASM W/LEVERS
267	GEN WB56M0003
268	WB2X7909 GE Oven Anti-Tip Kit
269	SERVICE RANGE MTG PLATE
271	FLUE PLATE COVER
273	GEN WB34M0027
281	GEN WB08M0003
281	WB14X104 GE Stove Range Oven Right Hand Door Hinge
281	WB14X103 GE Range Oven Left Door Hinge
282	GEN WB38K5017
286	OV DR SPRING
290	GEN WB63M0021
291	GEN WB02X9152
292	GEN WB02X9146
293	GEN WB02X9148
294	WB2X9719 GE Oven Support Bracket Clip
296	GEN WB01M0018
507	UNKNOWN
511	UNKNOWN
512	UNKNOWN
513	UNKNOWN
514	UNKNOWN
520	UNKNOWN
801	WB1M1 GE Oven Screw
802	GEN WB01X1265
803	WB1X1149 GE Oven Screw
804	WB1X681 GE Oven Screw
807	WB01X32746 GE Oven Screw ST 8A8 X .625 TR NI
809	WB1X1137 GE Oven Screw
810	WB1X1130 GE Oven Screw 10-32
811	GEN WB01X1172
812	WB1K5191 GE Oven Zinc FL Screw
813	WB1X1261 GE Oven Screw
814	WB1X1258 GE Oven Screw
818	GEN WB01X1250
819	WB1X1118 GE Oven Screw 6-32T
820	WB1X1424D GE Oven Screw Package
826	GEN WB01X1167
828	WB1X1141 GE Oven Screw 8-32
874	UNKNOWN
892	UNKNOWN
909	WB1X1173 GE Rivet
926	GROUND WASHER
936	GEN WB02M0021
979	SPACER
996	UNKNOWN
999	GEN WB18K5223
999	GEN 49-8155
999	GEN WB18M0089
999	GEN WB18K5105
999	GEN 31-0888
999	GEN WB18M0090
999	GEN 31-0932
999	GEN WB18K5106
999	GEN WB18K5330
999	GEN 31-13045
