RS744GP3BG

RS744GP3BG

Written by

in

RS744GP3BG

Products

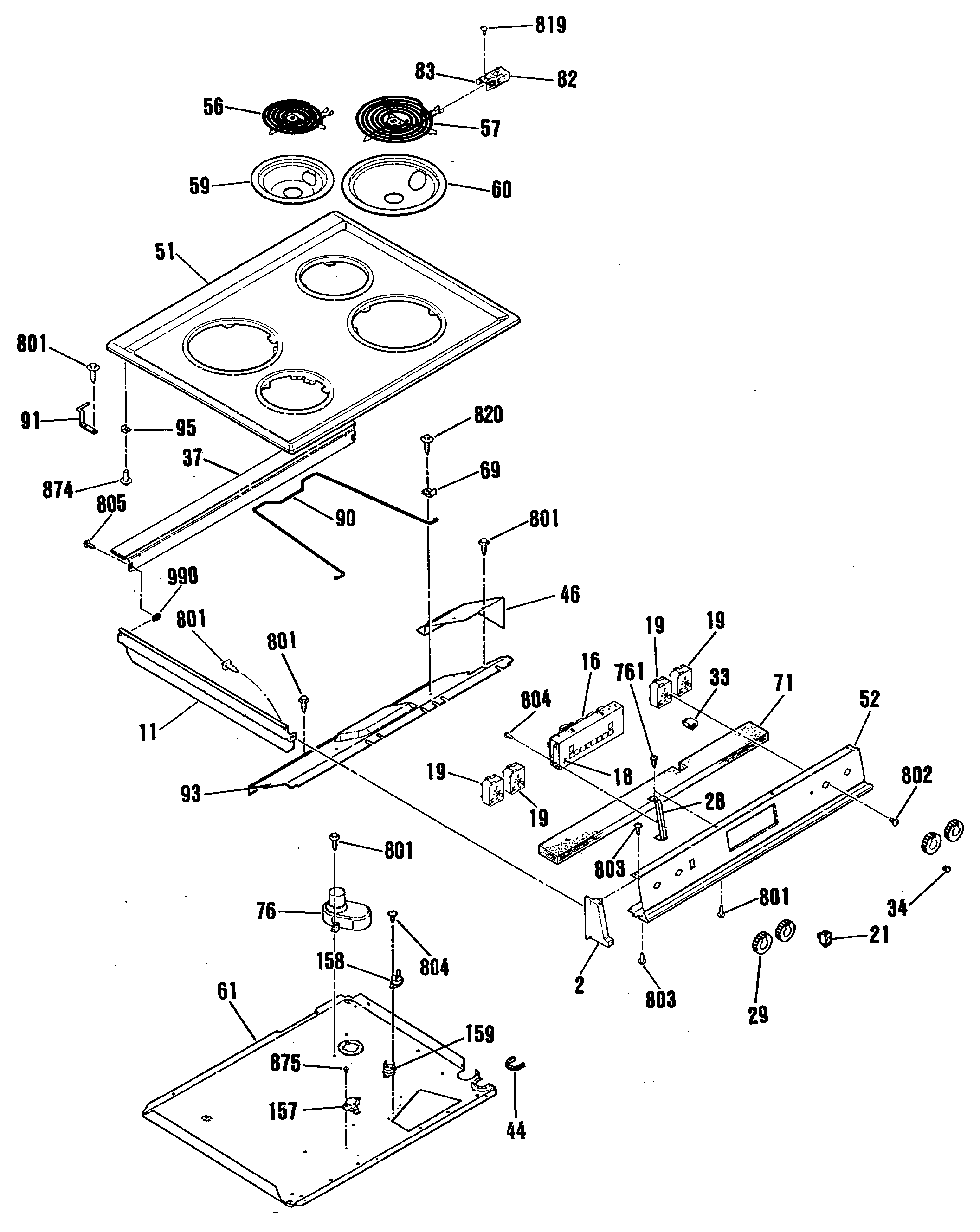

PositionProduct
2GEN WB36K5135
2GEN WB36K5136
9UNKNOWN
11SIDE EXTENSION
16GEN WB27K5073
18UNKNOWN
19WB23M24 GE Stove Range Infinite Switch 1500W Cooktop Surface Burner
19WB23K5027 GE Stove Range Oven Infinite Control Burner Switch
21GEN WB24X0415
29INFINITE KNOB
33WB25T10040 GE Oven Light Indicator
34LENS
37UNKNOWN
42UNKNOWN
44UNKNOWN
44UNKNOWN
46UNKNOWN
51MAINTOP-CHROME
52GEN WB36K5300
56WB30M1 GE Oven Range Cooktop Burner Unit 6 Inch
57WB30M2 GE Oven Range Stove Cooktop Burner Unit 8 Inch
59BOWL BURNER 6 (CH)
60GEN WB31M0015
61UNKNOWN
69WB2M87 GE Oven Support Rod Clamp
71GEN WB35K5034
76UNKNOWN
82WB17X210 GE Oven Range Cooktop Burner Receptacle Block Kit
83GEN WB01K5128
90UNKNOWN
91UNKNOWN
91UNKNOWN
93UNKNOWN
95WB10X255 GE Oven Hinge Bracket
102OVEN DOOR INSULATION
111GEN WB55M0010
112UNKNOWN
113UNKNOWN
114GEN WB02M0001
116GEN WB02X9178
121GEN WB57K5096
122GEN WB57K5141
123CENTER GLASS
125GEN WB35K5031
130GEN WB02K5276
131WB2X9168 GE Oven Seal
132WB2K5319 GE Oven Door Gasket
133FELT PAD
133FELT WASHER
136GEN WB15K5059
140UNKNOWN
151WB49T10020 GE Stove Range Oven Lock Motor Latch Assembly
157GEN WB24K5029
158UNKNOWN
159UNKNOWN
178UNKNOWN
184WB34K5228 GE Oven Door Lock Plate
185WB15K5016 GE Oven Lock Lever Assembly
201GEN WB63K5109
202GEN WB63M0057
203GEN WB63M0056
204GEN WB58X0065
211GEN WB02M0004
212GEN WB02K5093
216UNKNOWN
217UPPER WIRE COVER
219GEN WB34M0006
221GEN WB63M0058
221GEN WB63M0024
222LOWER FRONT PANEL
226LOWER DOOR HANDLE
231GEN WB35M0022
232INSULATION BACK & BOTTOM
233INSULATION-TOP SIDES
241GEN WB48X0208
246WB48X10056 GE Broil Pan Set, Large Porcelain
251WB44K5012 GE Oven Bake Element
252WB44X232 GE Oven Broil Element
253WB21X5301 GE Range Stove Oven Temperature Sensor Probe 6" Length
255WB17X5095 GE Black Oven Terminal
256GEN WB08M0003
257GEN BUY-LOCAL
259OVEN LAMP LENS
261WB24T10147 GE Oven SPDT Light Switch
262UNKNOWN
262UNKNOWN
265UNKNOWN
266BASE ASM W/LEVERS
267GEN WB56M0003
268WB2X7909 GE Oven Anti-Tip Kit
269SERVICE RANGE MTG PLATE
271UNKNOWN
273GEN WB34M0027
281WB14X104 GE Stove Range Oven Right Hand Door Hinge
281WB14X103 GE Range Oven Left Door Hinge
282GEN WB38K5017
286OV DR SPRING
290GEN WB63M0021
291GEN WB02X9152
292GEN WB02X9146
293GEN WB02X9148
294WB2X9719 GE Oven Support Bracket Clip
296GEN WB01M0018
300UNKNOWN
507UNKNOWN
511UNKNOWN
512UNKNOWN
513UNKNOWN
514UNKNOWN
520UNKNOWN
755WZ4X44D GE Screw Package
796WB1K5116 GE Oven Screw
801WB1M1 GE Oven Screw
802GEN WB01K5123
803WB1X1149 GE Oven Screw
804WB1X681 GE Oven Screw
805GEN WB01X1113
807WB01X32746 GE Oven Screw ST 8A8 X .625 TR NI
808WB1X1116 GE Oven Screw
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
811GEN WB01X1172
812WB1K5191 GE Oven Zinc FL Screw
813WB1X1261 GE Oven Screw
814WB1X1258 GE Oven Screw
819WB1X1118 GE Oven Screw 6-32T
820WB1X1424D GE Oven Screw Package
826GEN WB01X1167
857UNKNOWN
874UNKNOWN
892UNKNOWN
908GEN WB01K5143
910WB1X5731D GE Oven Nut Package of 12
926GROUND WASHER
927WB1X119D GE Oven Range Washer
935GEN WB01X1201
936GEN WB02M0021
942GEN WB01X1140
979SPACER
990GEN WB01X1432
996UNKNOWN
999GEN 31-13118
999GEN WB18K5436
999GEN WB18K5248
999MAIN WIRE HARNESS
999GEN 39-4713
999GEN 31-10070
999GEN 31-13029
999GEN WB18K5363
