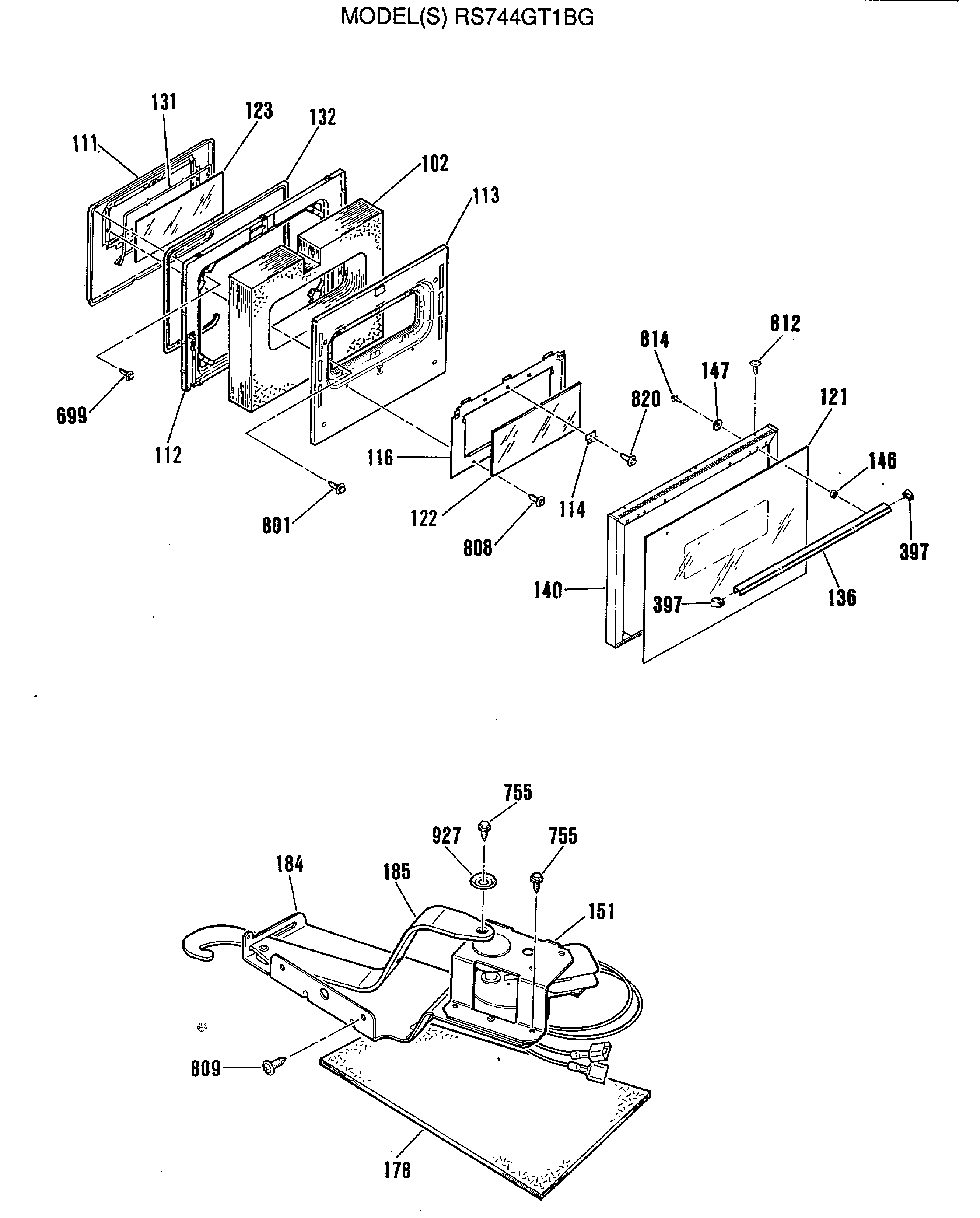

RS744GT1BG

RS744GT1BG

Written by

in

RS744GT1BG

Products

PositionProduct
1GEN WB36K5472
2GEN WB36K5379
2GEN WB36K5378
9UNKNOWN
11SIDE EXTENSION
16GEN WB27K5140
18GEN WB27K5186
19WB23K5027 GE Stove Range Oven Infinite Control Burner Switch
19WB23M24 GE Stove Range Infinite Switch 1500W Cooktop Surface Burner
21GEN WB24X0415
28GEN WB02K5333
29INFINITE KNOB
33WB25T10040 GE Oven Light Indicator
34LENS
37UNKNOWN
42UNKNOWN
44UNKNOWN
44UNKNOWN
46UNKNOWN
51MAINTOP-CHROME
56WB30M1 GE Oven Range Cooktop Burner Unit 6 Inch
57WB30M2 GE Oven Range Stove Cooktop Burner Unit 8 Inch
59BOWL BURNER 6 (CH)
60GEN WB31M0015
61UNKNOWN
69WB2M87 GE Oven Support Rod Clamp
71GEN WB35K5034
76UNKNOWN
82WB17X210 GE Oven Range Cooktop Burner Receptacle Block Kit
83GEN WB01K5128
90UNKNOWN
91UNKNOWN
91UNKNOWN
93UNKNOWN
95WB10X255 GE Oven Hinge Bracket
102OVEN DOOR INSULATION
111GEN WB55K5037
112GEN WB55K5038
113INSULATION RETAINER
114GEN WB02M0001
116GEN WB02X9178
121GEN WB57K5215
122GEN WB57K5141
123CENTER GLASS
131WB2X9168 GE Oven Seal
132WB2K5319 GE Oven Door Gasket
133FELT WASHER
136WB15X10225 GE Range Handle
140GEN WB56K5130
146DOOR HANDLE SPACER-BLACK
147GEN WB02K5312
151WB49T10020 GE Stove Range Oven Lock Motor Latch Assembly
157GEN WB24K5029
158GEN WB24K5086
159UNKNOWN
178UNKNOWN
184WB34K5228 GE Oven Door Lock Plate
185WB15K5016 GE Oven Lock Lever Assembly
201GEN WB63K5109
202GEN WB63M0057
203GEN WB63M0056
204GEN WB58X0065
211GEN WB02M0004
212GEN WB02K5093
216UNKNOWN
217UPPER WIRE COVER
219GEN WB34M0006
221GEN WB63M0058
221GEN WB63K5195
221GEN WB63M0024
221GEN WB63K5192
222LOWER FRONT PANEL
226GEN WB15K5091
231GEN WB35M0022
232INSULATION BACK & BOTTOM
233INSULATION-TOP SIDES
241GEN WB48X0208
247WB48X10056 GE Broil Pan Set, Large Porcelain
251WB44K5012 GE Oven Bake Element
252WB44X232 GE Oven Broil Element
253WB21X5301 GE Range Stove Oven Temperature Sensor Probe 6" Length
255WB17X5095 GE Black Oven Terminal
256GEN WB08K5042
257RANGE ONLY 40W 120V APPL BULB
259OVEN LAMP LENS
261WB24T10147 GE Oven SPDT Light Switch
262GEN WB07K5298
262GEN WB07K5297
265UNKNOWN
266GEN WB02K5334
267GEN WB56M0003
268WB2X7909 GE Oven Anti-Tip Kit
269SERVICE RANGE MTG PLATE
271UNKNOWN
273GEN WB34M0027
281WB14X103 GE Range Oven Left Door Hinge
281WB14X104 GE Stove Range Oven Right Hand Door Hinge
282GEN WB38K5017
286OV DR SPRING
290GEN WB63M0021
291GEN WB02X9152
292GEN WB02X9146
293GEN WB02X9148
294WB2X9719 GE Oven Support Bracket Clip
296GEN WB01M0018
323CAP HANDLE LEFT
324CAP HANDLE RIGHT
507UNKNOWN
511UNKNOWN
512UNKNOWN
513UNKNOWN
514UNKNOWN
520UNKNOWN
691WB1K5177 GE Oven Trim Screw
699WB1M1 GE Oven Screw
755WZ4X44D GE Screw Package
761WB1K5062 GE Oven Screw
796WB1K5116 GE Oven Screw
802GEN WB01K5123
804WB1X681 GE Oven Screw
805GEN WB01X1113
807SCREW-BLACK
808WB1X1116 GE Oven Screw
809WB1X1137 GE Oven Screw
812WB1K5191 GE Oven Zinc FL Screw
814WB1X1258 GE Oven Screw
820WB1X1424D GE Oven Screw Package
927WB1X119D GE Oven Range Washer
