RS776G*01

RS776G*01

Written by

in

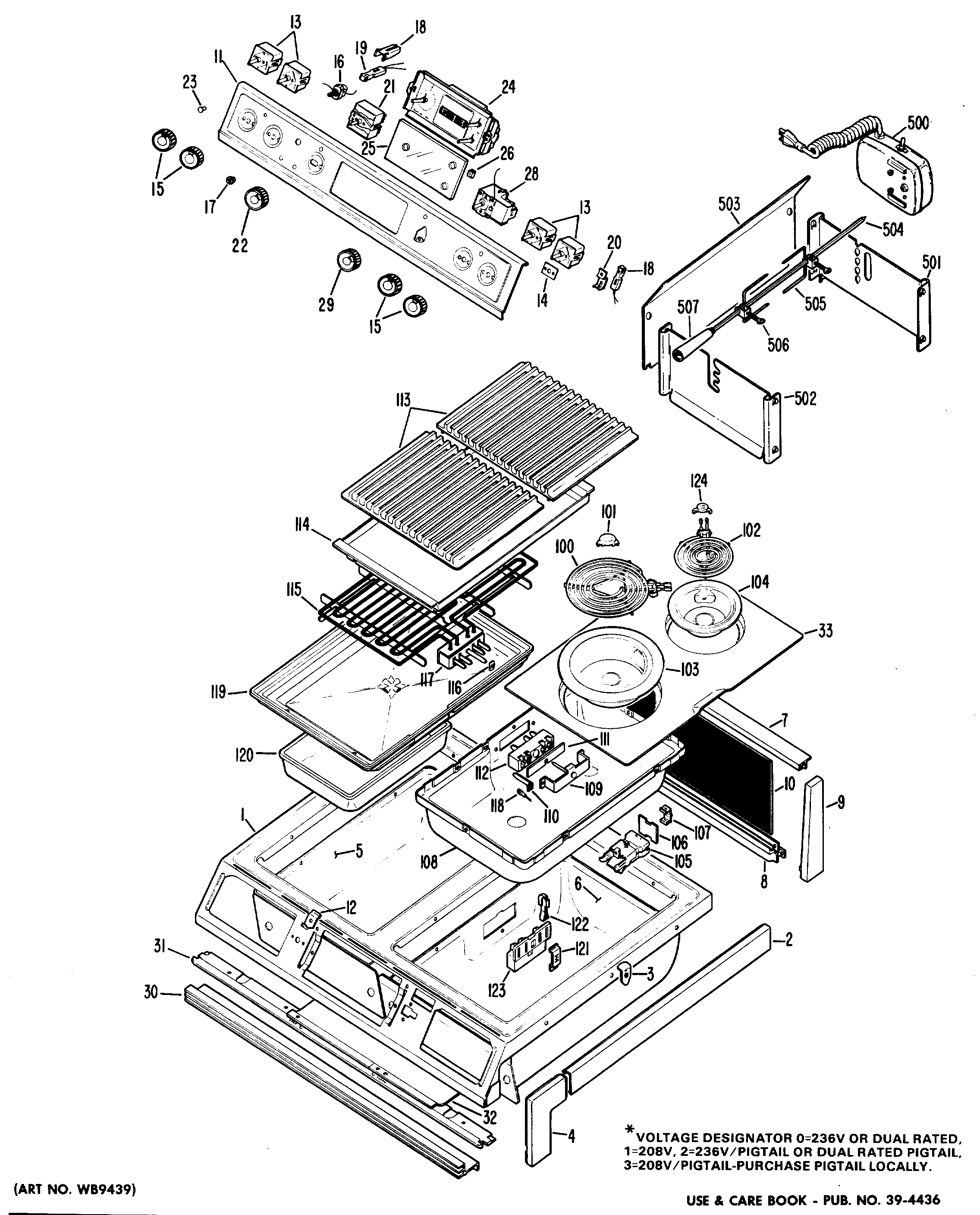

RS776G*01

Products

Position	Product
1	GEN WB62X5287
2	GEN WB07X6666
2	GEN WB07X6665
3	CLIP TRIM
4	GEN WB07X6734
4	GEN WB01X0271
4	GEN WB07X6735
4	GEN WB02X6939
5	GEN WB49X5235
6	GEN WB49X5236
7	GEN WB07X6730
8	GEN WB07X6731
9	GEN WB07X6733
9	WZ5X158D GE Screw Package of 12
9	GEN WB07X6732
10	GEN WB36X5443
10	GEN WB02X3191
11	GEN WB07X6757
12	GEN WB02X6760
13	WB21X36771 GE Surface Element Switch
13	GEN WB01X5550
13	GEN WB02X6823
14	GEN WB02X3383
15	GEN WB03X5615
16	GEN WB24X5139
16	GEN WB01X0588
17	NUT SWITCH
18	SURFACE LIGHT BRACKET
19	NEON LAMP – 240V
19	NEON LAMP 118V
20	CLIP MTG LAMP
21	GEN WB01X5547
21	GEN WB22X5090
22	GEN WB03X5616
23	WB25X65 GE Oven Light Indicator
23	GEN WB01X5505
24	WZ4X345D GE Screw Package 12 C92
24	GEN WB19X5246
25	GEN WB36X5444
26	GEN WB02X2901
27	GEN WB03X0459
28	GEN WB24X0184
28	GEN WB02X6713
28	GEN WB02X6937
29	GEN WB03X5569
30	GEN WB07X6739
30	GEN WZ05X0252
31	SCREW
31	GEN WB07X6737
32	GEN WB49X5237
32	WB1X5364 GE Oven Mounting Screw
33	WZ4X230D GE Screw Package 12
33	GEN WB62X5286
100	WB30X219 GE Range Cooktop Burner Unit 8 Inch
101	GEN WB32X0051
102	WB30X218 GE Range Cooktop Burner Unit 6 Inch
103	WB31X5011 GE Oven 8" Chrome Drip Bowl
104	GEN WB31X5010
105	RR122 Supco Receptacle WB17X5051
106	GEN WB02X6171
107	CLIP INSULATOR
108	GEN WB49X5234
109	GEN WB17X5066
110	GEN WB01X5551
110	GEN WB17X5067
111	GEN WB02X6925
112	GEN WB02X6953
113	GEN WB32X5043
114	GEN WB49X5247
115	GEN WB30X5069
115	GEN WB30X5070
116	GEN WB01X5549
117	GEN WB02X6954
117	GEN WB02X6936
118	GEN WB18X5065
119	GEN WB32X5044
120	BROIL PAN SMALL
121	GEN WB02X6938
122	GEN WB05X5027
123	GEN WB17X5068
124	GEN WB32X0052
150	GEN WB63X5202
151	GEN WB49X5242
152	GEN WB49X5245
153	GEN WB49X5248
154	GEN WB49X5249
155	SCR 10-16 B SL 1-1/8 S
155	WB17X5095 GE Black Oven Terminal
155	PLATE GROUND
156	GEN WB56X5870
156	GEN WB56X5868
156	GEN WB02X6941
156	GEN WB56X5869
157	GEN WB02X6947
157	GEN WB02X6948
158	GEN WB02X3018
159	SWITCH, OVEN LIGHT
160	GEN WB56X5867
161	GEN WB49X5239
162	GUIDE DRAWER
163	SLIDE-NYLON(AT FRONT OF GUIDE)
164	GEN WB49X5238
165	GEN WB01X5533
166	GEN WB10X5129
166	GEN WB10X5128
167	HINGE PIN FOR SERVICE 3/16" DIA.
168	RETAINING RING FOR HINGE PIN
169	GEN WB10X5131
169	GEN WB10X5130
170	GEN WB09X5090
171	GEN WB02X6946
172	UNKNOWN
173	GEN WB49X5240
174	GEN WB49X5241
175	GEN WB29X5010
176	INSULATOR TERMINAL
177	GEN WB02X6943
178	GEN WB49X5244
178	GEN WB49X5243
179	GEN WB07X0552
180	CLIP LEAD
181	GEN WB02X6342
250	GEN WB36X5379
251	GEN WB07X5625
252	GEN WB02X6573
253	GEN WB02X6574
254	GEN WB02X6575
256	GEN WB07X5623
257	GEN WB07X5624
258	GEN WB02X3052
259	CAM LINK
260	GEN WB09X5089
261	GEN WB07X5636
262	GEN WB02X3053
263	GEN WB56X1351
263	PAD
264	GEN WB02X3258
265	SPACER PANEL
266	GEN WZ04X0385
268	GEN WB02X3047
268	GEN WB55X5235
268	GEN WB02X6940
268	GEN WB02X3134
269	COVER GUARD & RIVET ASM.
270	GEN WB09X0128
271	GEN WB09X0154
272	GEN WB55X0378
273	SHIELD
274	GEN WB15X0144
274	GEN WB15X0143
275	GEN WB02X3040
276	SPACER DOOR
277	GEN WB02X2276
277	GEN WB55X5236
278	GEN WB01X0547
279	GEN WB01X0548
280	WB2X3138 GE Oven Self-Clean Door Gasket
281	GEN WB02X2616
281	GEN WZ04X0413
282	GUIDE & SPRING ASM. – RH
282	GUIDE & SPRING ASM. – LH
283	GEN WB36X0448
284	GASKET WINDOW
285	WB1X558D GE Oven Screw Package
285	GEN WB02X3285
286	GEN WB07X5631
287	GEN WB15X5102
288	WB1X119D GE Oven Range Washer
300	GEN WB56X5871
301	GEN WB07X6738
302	HANDLE DRAWER
303	GEN WB02X5521
304	GEN WB58X5003
305	GEN WB02
360	UNKNOWN
360	GEN WB44X5087
361	SHELF – STRAIGHT
361	GEN WB48X5061
402	GEN WB44X5074
402	WB1X500D GE Oven Screw Package
500	GEN WB26X5064
501	GEN WB49X5264
502	GEN WB49X5263
503	GEN WB49X5265
504	GEN WB02X7023
505	SKEWER ASM
506	GEN WB01X5571
507	HANDLE SPIT
