RS780GN1

RS780GN1

Written by

in

RS780GN1

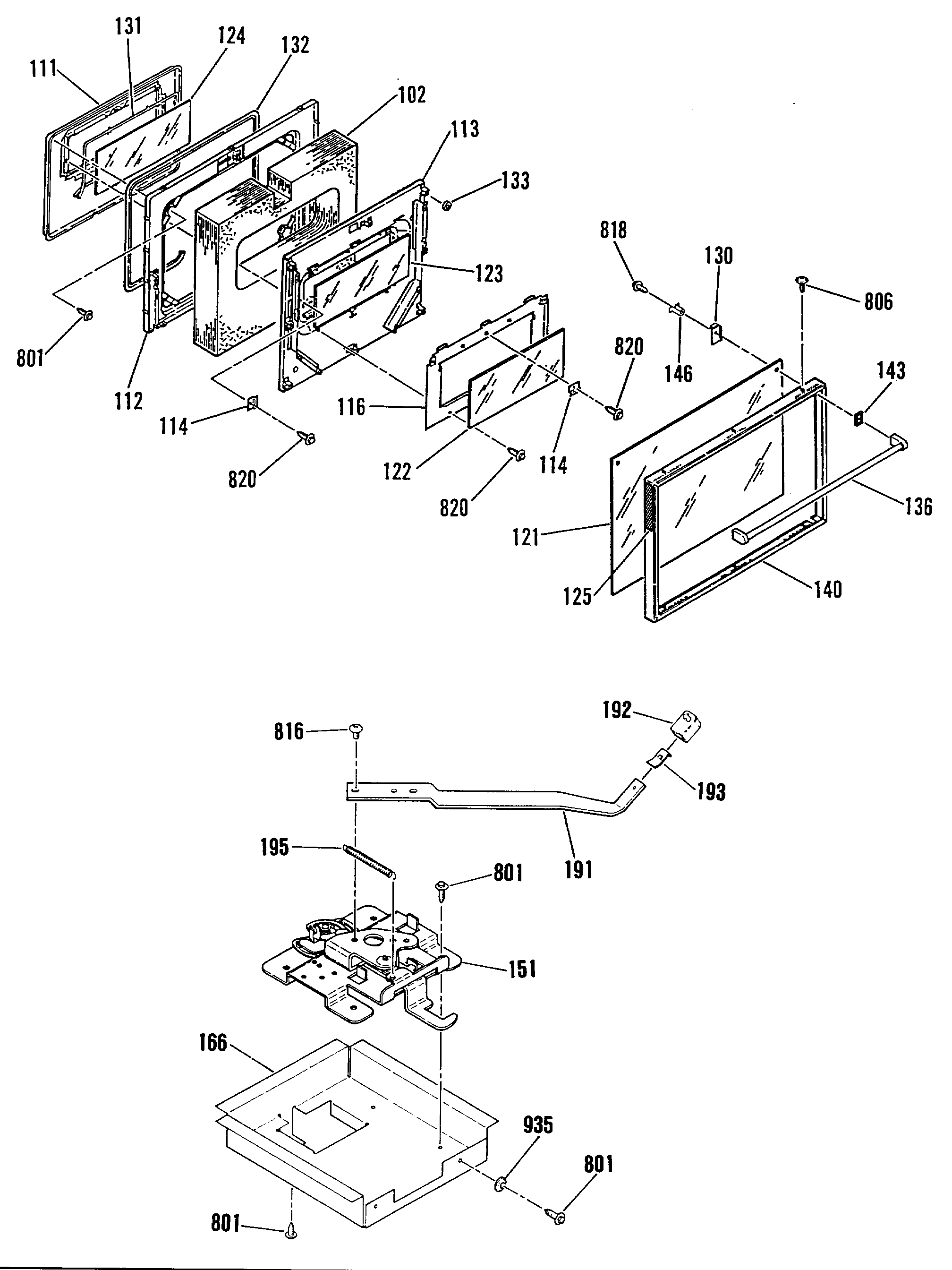

Products

Position	Product
1	GEN WB23M0019
1	GEN WB23M0020
2	GEN WB36M0032
2	GEN WB36M0033
3	GEN WB27M0015
4	GEN WB37M0006
8	UNKNOWN
12	GEN WB23M0017
16	GEN WB27K5052
17	GEN WB36X0800
18	GEN WB02X9664
19	WB24X29365 GE Oven Infinite Control Switch
21	GEN WB24M0005
27	WB6X3 GE Oven Control Seal
28	GEN WB27M0012
29	UNKNOWN
30	UNKNOWN
31	GEN WB27X0611
32	WB26X114 GE Oven Lower Fan Assembly
33	INDICATOR LIGHT-CLEAN
34	GEN WB25M0009
42	GEN WB35M0010
43	GEN WB02X9657
45	SPACER
51	GEN WB62M0019
52	GEN WB56M0010
55	GEN WB23M0021
59	GEN WB31M0021
61	GEN WB64M0012
61	GEN WB64M0013
74	GEN WB31M0022
76	GEN WB38M0009
82	GEN WB17M0007
82	GEN WB17M0006
102	INSULATION OV BTM & BACK
111	UNKNOWN
112	GEN WB56K5026
113	GEN WB02M0056
116	GEN WB02X9178
116	GEN WB02M0001
121	GEN WB57M0029
122	OV DR INTERMED GLASS-UP
123	CENTER GLASS
124	OV DR INNER GLASS
125	OV DR OVERLAY
130	GEN WB02M0045
131	WB2X9168 GE Oven Seal
132	WB2X9373 GE Oven Gasket
133	FELT WASHER
136	OVEN DOOR HANDLE
137	GEN WB14M0003
138	GEN WB02M0053
139	GEN WB02M0052
140	GEN WB56M0009
143	DR HANDLE SPACER
146	GEN WB02M0046
151	GEN WB10X0268
161	GEN WB02X0436
166	GEN WB58M0002
171	SWITCH INSULATOR
175	GEN WB34M0026
191	LOCK HANDLE
192	LOCK KNOB
193	KNOB CLIP
201	GEN WB63M0040
202	GEN WB63M0049
203	GEN WB63M0050
205	GEN WB55M0007
209	GEN WB63M0048
211	SIDE INS RETAINER
212	INSULATION BTTM RETAINER
213	GEN WB02M0067
214	GEN WB38M0011
216	REAR WIRE COVER UPPER
217	GEN WB34M0027
218	WIRE COVER REAR
219	GEN WB34M0025
222	GEN WB56M0011
223	GEN WB06M0002
226	LOWER FRONT PANEL HANDLE
231	INSULATION TOP & SIDES
232	UNKNOWN
237	GEN WB56M0012
239	GEN WB03M0023
241	OVEN RACK-LOWER OVEN
246	WB48X10056 GE Broil Pan Set, Large Porcelain
251	WB44K5012 GE Oven Bake Element
252	WB44X232 GE Oven Broil Element
253	WB21X5301 GE Range Stove Oven Temperature Sensor Probe 6" Length
254	GEN WB06M0004
255	GEN WB17X0213
256	GEN WB08M0003
257	GEN BUY-LOCAL
259	OVEN LAMP LENS
262	GEN WB07M0014
262	GEN WB07M0013
266	BASE ASM W/LEVERS
268	WB2X7909 GE Oven Anti-Tip Kit
269	SERVICE RANGE MTG PLATE
273	GEN WB34M0024
281	WB14X103 GE Range Oven Left Door Hinge
281	LOWER PANEL HINGE
281	WB14X104 GE Stove Range Oven Right Hand Door Hinge
282	GEN WB38M0010
284	GEN WB06M0003
286	PV DR SPRING
291	GEN WB02X9152
294	WB2X9719 GE Oven Support Bracket Clip
295	GEN WB02X9424
296	GEN WB01M0018
300	GEN WB02M0058
300	GEN WB02M0049
300	GEN WB02M0057
557	GEN WB17M0008
559	GEN WB27K5049
801	WB1M1 GE Oven Screw
803	WB1X1149 GE Oven Screw
804	WB1X681 GE Oven Screw
806	SCREW-BRT. NI.
807	WB01X32746 GE Oven Screw ST 8A8 X .625 TR NI
813	WB1X1261 GE Oven Screw
814	WB1X1258 GE Oven Screw
815	SCREW
816	GEN WB01X1125
817	GEN WB01X1346
818	GEN WB01X1250
820	WB1X1424D GE Oven Screw Package
825	GEN WB01M0002
826	GEN WB01X1167
833	WB1X1131 GE Screw 6-32
846	SCREW
880	WB1K5191 GE Oven Zinc FL Screw
885	GEN WB01M0032
886	GEN WB01M0031
887	GEN WB01M0026
889	GEN WB01M0029
890	WB1X1118 GE Oven Screw 6-32T
926	GROUND WASHER
931	GEN WB01M0030
935	GEN WB01X1201
971	GEN WB01M0025
972	GEN WB01M0028
978	WB1X1259 GE Hex Nut
979	SPACER
999	GEN WB18K5200
999	GEN 39-4658
999	GEN WB18M0077
999	GEN WB18M0075
999	GEN 31-0889
999	GEN WB18M0076
999	GEN WB18K5199
999	GEN 31-0919
