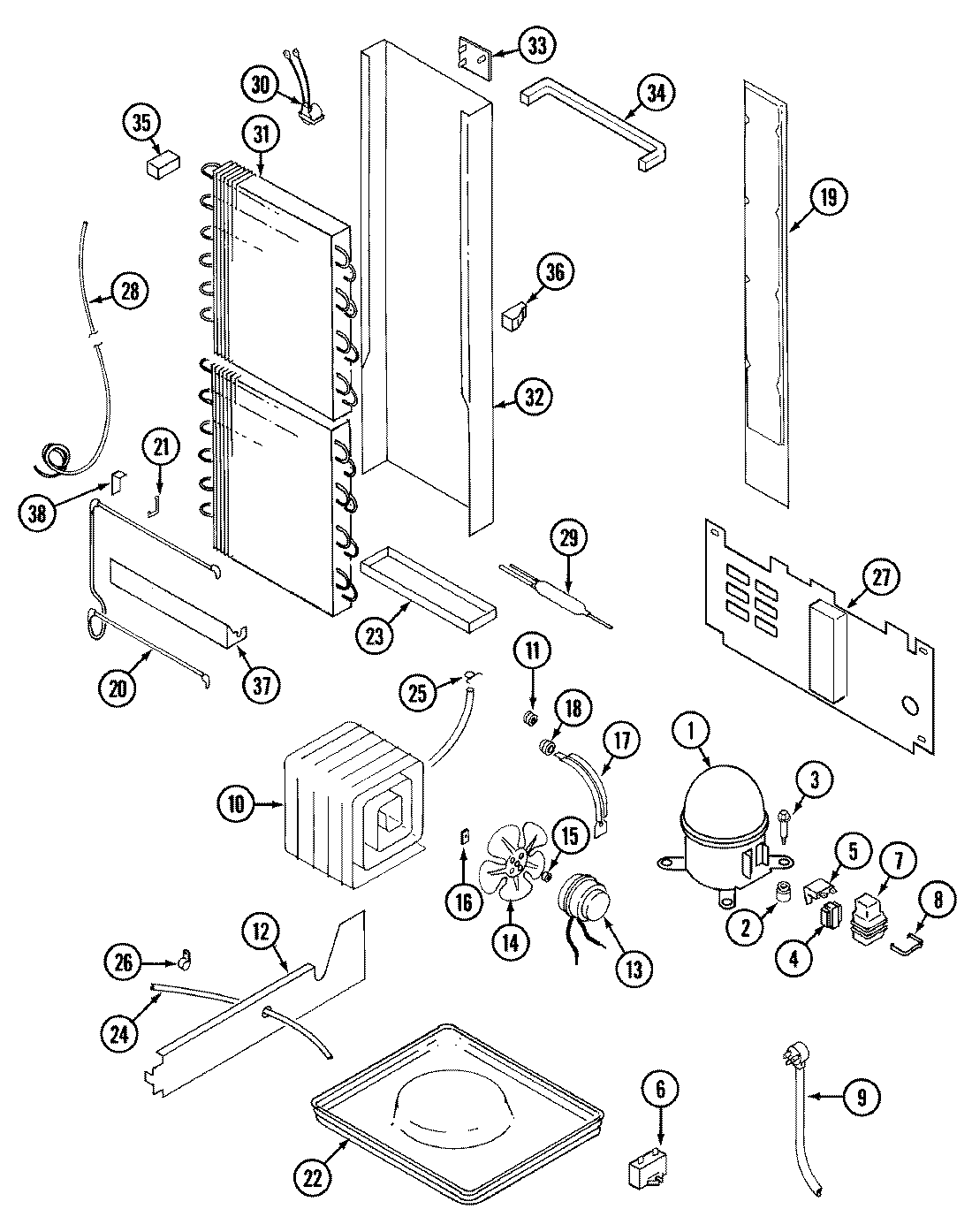

RSD2400EAE 09 – UNIT COMPARTMENT & SYSTEM
Written by
in
RSD2400EAE 09 – UNIT COMPARTMENT & SYSTEM
Products
Position
Product
1
W10309995 Whirlpool Refrigerator Compressor
1
MAY 61001017
2
MAY 17245-4
3
MAY 65275-9
4
WP10097204 Whirlpool Start Relay
5
MAY 61001627
6
WP65889-4 Whirlpool Refrigerator Capacitor
7
MAY 66589-2
8
MAY 65886-1
9
MAY 52890-3
10
MAY 64998-1
10
MAY 60408-2
10
MAY 414001-1
11
MAY 53351-1
12
MAY 61001533
12
WP488729 Whirlpool Refrigerator Door Screw
13
MAY 65275-33
13
MAY 61001018
14
WP12587601 Whirlpool Refrigerator Condenser Blade
15
MAY 61001686
16
WP486692 Whirlpool Refrigerator Nut
17
MAY 69181-1
18
MAY 56933-1
19
MAY 70264-2
19
MAY 67094-1
20
MAY 61001140
21
MAY 52067-1
23
MAY 53523-2
24
MAY 26911-25
25
WP596669 Whirlpool Hose Clamp
26
MAY 53516-5
27
MAY 65275-5
27
MAY 61001737
28
MAY 66223-1
28
MAY 26088-23
28
MAY 61001039
29
WPW10143759 Whirlpool Dryer Filter
30
MAY 52085-29
31
MAY 52551-22
32
MAY 68834-2
33
MAY 55878-1
34
MAY 66325-18
35
MAY 65063-1
36
MAY 65064-1
37
MAY 29915-13
37
WP489478 Whirlpool Refrigerator Screw
38
MAY 52561-1
39
MAY 61001679
40
MAY 16000327
←
