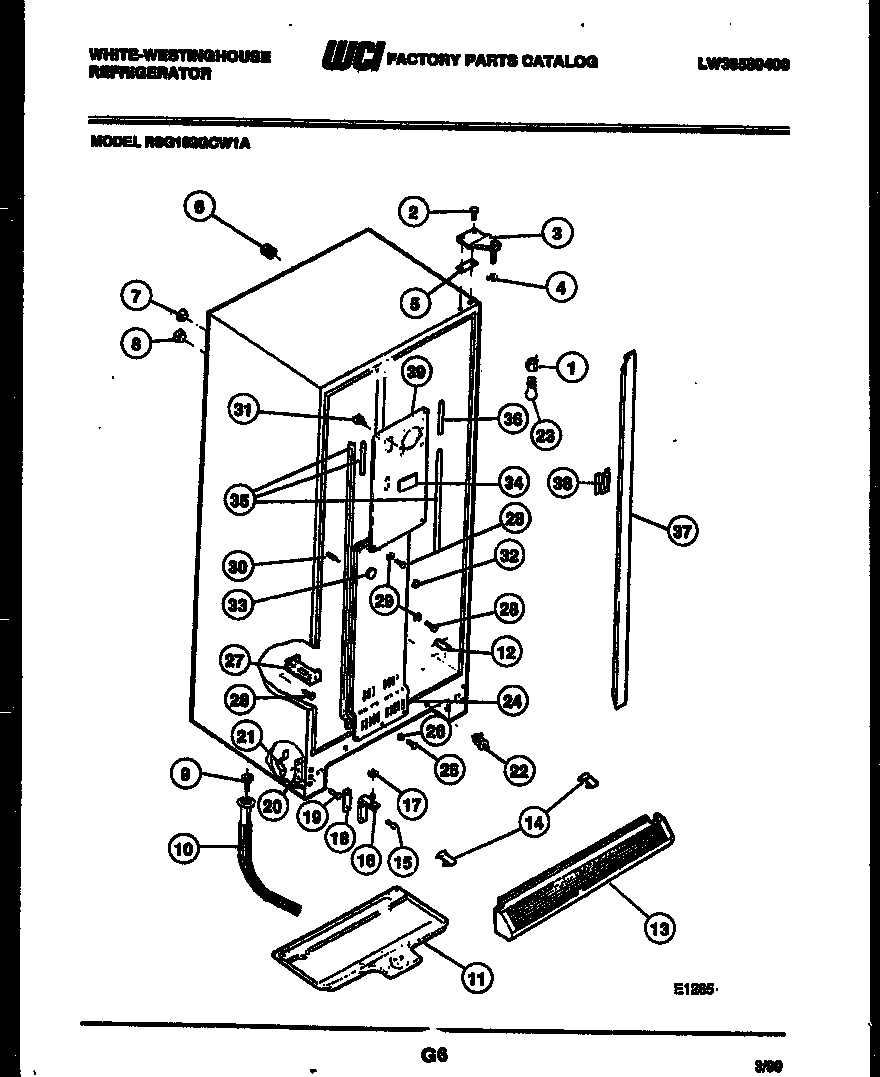

RSG192GCV1A 04 – CABINET PARTS

Products

Position	Product
1	218906802 Frigidaire Light Lamp Socket
2	241710601 Frigidaire Refrigerator Screw
3A	WCI 5303001062
3	WCI 5308012934
3B	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
4	WCI 5308000186
5	SHIM – UPPER HINGE
6	TUBE-RUBBER
7	WCI 5303001287
8	WCI 5303001286
9	WCI 5308000853
10	241957901 Frigidaire Refrigerator Tube-Drain
11	WCI 5308000086
12	DAMPER, MEAT KEEPER
13	WCI 5303016726
14	CLIP-GRILLE
15	SCREW-HINGE MTG (2) (NON-ILLUSTRATED)
16	HINGE-BOTTOM
17	WASHER, .28 X .62 X .19, NYLON
18	SHIM-BTM HINGE (3)
19	WCI 5308000013
20	WCI 5303001273
21	WCI 5300077210
22	5303289051 Frigidaire Refrigerator Light Switch
23	316538904 Frigidaire Oven Lamp Light
24	WCI 5308017223
25	WCI 5303001230
26	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
27	WCI 5308000738
28	5304455650 Frigidaire Refrigerator Screw
29	WASHER-NYLON,3/16 X 5/8 OD
30	WCI 5303001250
31	SUPPORT-COIL COVER
32	WCI 5303001231
33	WCI 5303203044
34	PLUG-DECORATIVE
35	WCI 5303001233
36	WCI 5303001219
37	WCI 3916445
37	WCI 5303916448
38	WCI 5300169100
38A	WCI 5303001281
39	WCI 5303006543
