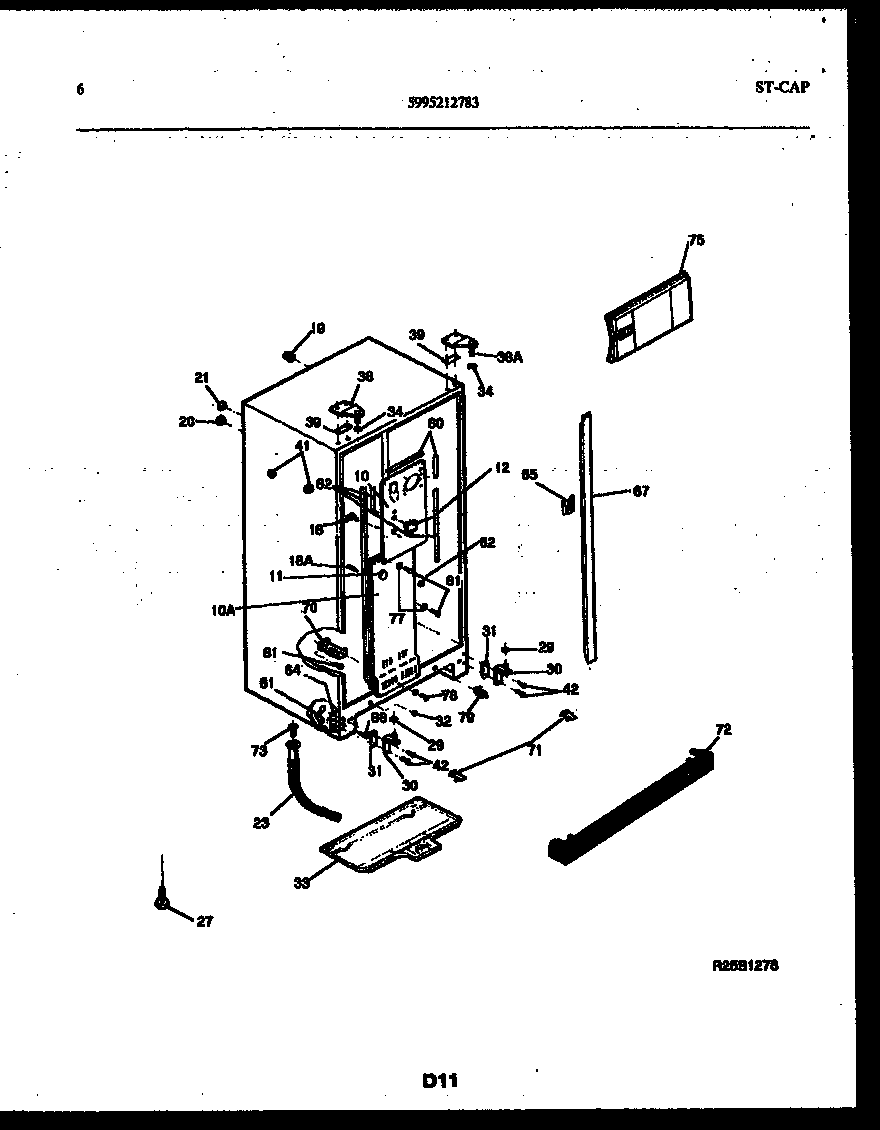

RSG192NCD1 04 – CABINET PARTS

Products

Position	Product
10	COVER-EVAP COIL, UPPER
10A	COVER-COIL LOWER
10A	NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
11	5303208309 Frigidaire Refrigerator Plug Hole
12	PLUG-DECORATIVE, ICE MAKER HOLE
18	SUPPORT-COIL COVER
18A	WCI 5303001250
19	TUBE-RUBBER
20	WCI 5303001286
21	WCI 5303001287
23A	CLAMP-TUBE
23	WCI 5303209723
27	LEVELING SCREW (2)
29	WASHER, .28 X .62 X .19, NYLON
30	HINGE-BOTTOM
31	SHIM-BTM HINGE (3)
32	BUTTON PLUG-CAB BASE
33A	WCI 08000099
33	WCI 5308000086
34	WCI 5308000186
38A	WCI 5308012934
38	WCI 5303001062
38C	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
38B	241710601 Frigidaire Refrigerator Screw
39	SHIM – UPPER HINGE
41	5304509705 Frigidaire Refrigerator Grommet
42	SCREW-HINGE MTG (2) (NON-ILLUSTRATED)
61	WCI 5300077210
62	WCI 5303001231
64	WCI 5303001273
65	WCI 5303001281
65A	WCI 5300169100
67	WCI 5303916448
