RSG20IBMBFWW SEALED SYSTEM & MOTHER BOARD

RSG20IBMBFWW SEALED SYSTEM & MOTHER BOARD

Written by

in

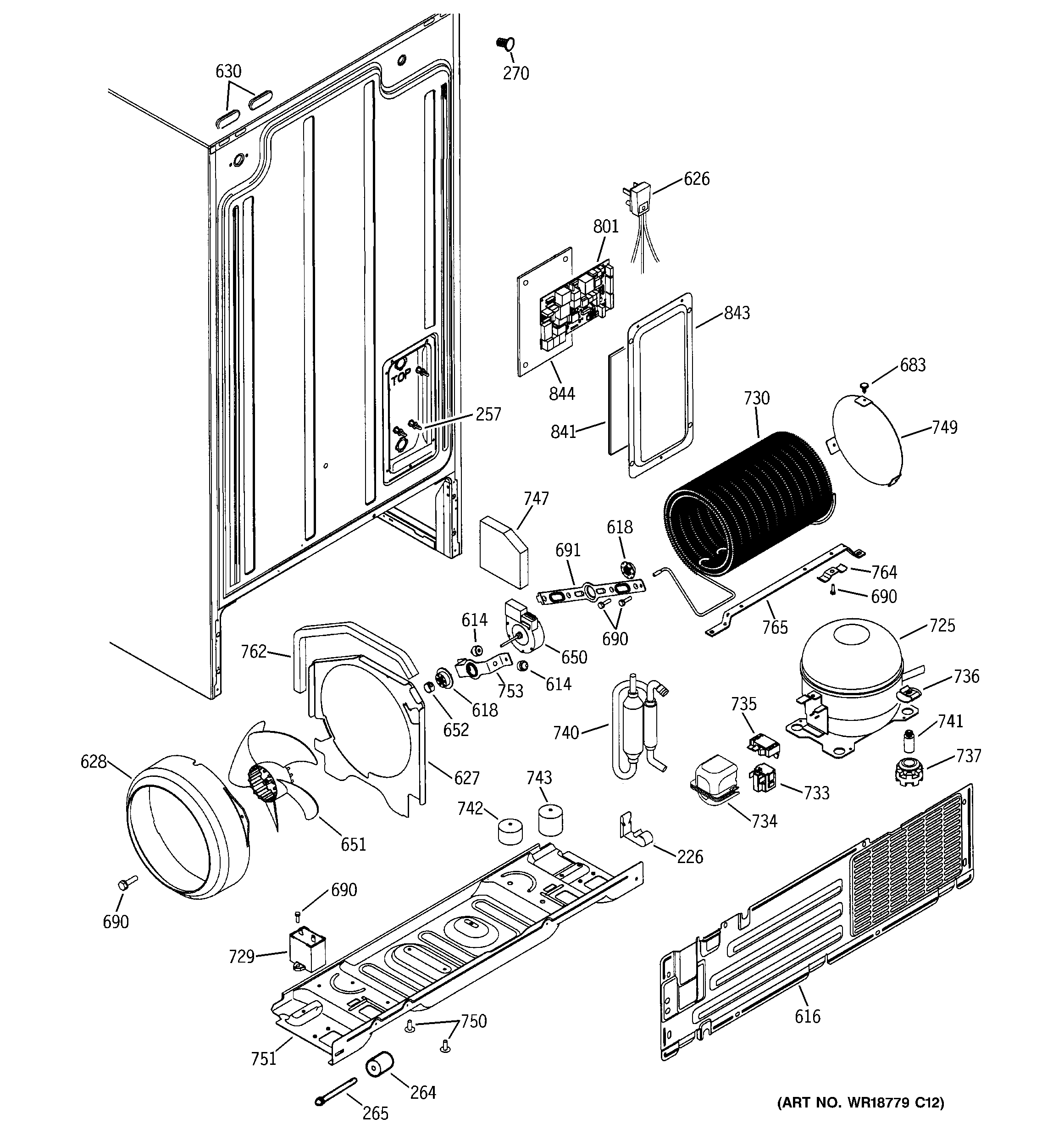

RSG20IBMBFWW SEALED SYSTEM & MOTHER BOARD

Products

PositionProduct
226WR02X10558 GE Refrigerator Drain Tube Clip
257GEN WR02X10159
264WR02X10695 GE Refrigerator Wheel
265GEN WR01X10039
270GEN WR02X10974
614BUMPER
616GEN WR82X10075
618WR02X10520 GE Refrigerator Fan Motor Grommet
626GEN WR23X10216
627WR17X35527 GE Refrigerator Condenser Fan Shroud
630WR2X4097 GE Button Plug
650WR60X10209 GE Refrigerator DC Condenser Fan Motor
651WR60X24484 GE Refrigerator Condenser Fan Blade
652WR02X12149 GE Refrigerator Ring
683WR02X10562 GE Push Fastener
690WZ5X158D GE Screw Package of 12
691WR02X10593 GE Refrigerator Bracket Condenser Fan (Rear)
725WR87X10103 GE Refrigerator Compressor Replacement Kit R134A
729GEN WR62X10014
730WR84X10022 GE Refrigerator Condenser Replacement Kit
733GEN WR07X10016
734GEN WR02X10556
735WR08X10019 GE Overload Relay
736GEN WR02X8203
737WR02X22869 GE Refrigerator Grommet
740WR86X25269 GE Refrigerator R134 Dryer
741WR1X1779 GE Refrigerator Stud Mounting Compressor
742GEN WR02X10587
743GEN WR02X10588
747GEN WR82X10073
749WR17X13159 GE Refrigerator Baffle Condenser Air
750WR1X1786 GE Refrigerator Screw
751GEN WR17X10773
753WR02X11863 GE Refrigerator Condenser Fan Bracket (Mounting)
762WR14X10053 GE Refrigerator Foam Strip Adhesive
764WR2X9000 GE Refrigerator Condenser Clip
765WR17X10763 GE Condenser Bracket Bar
801WR55X26733 GE Refrigerator Control Board
841GEN WR02X10599
843GEN WR17X10700
844GEN WR02X10569
