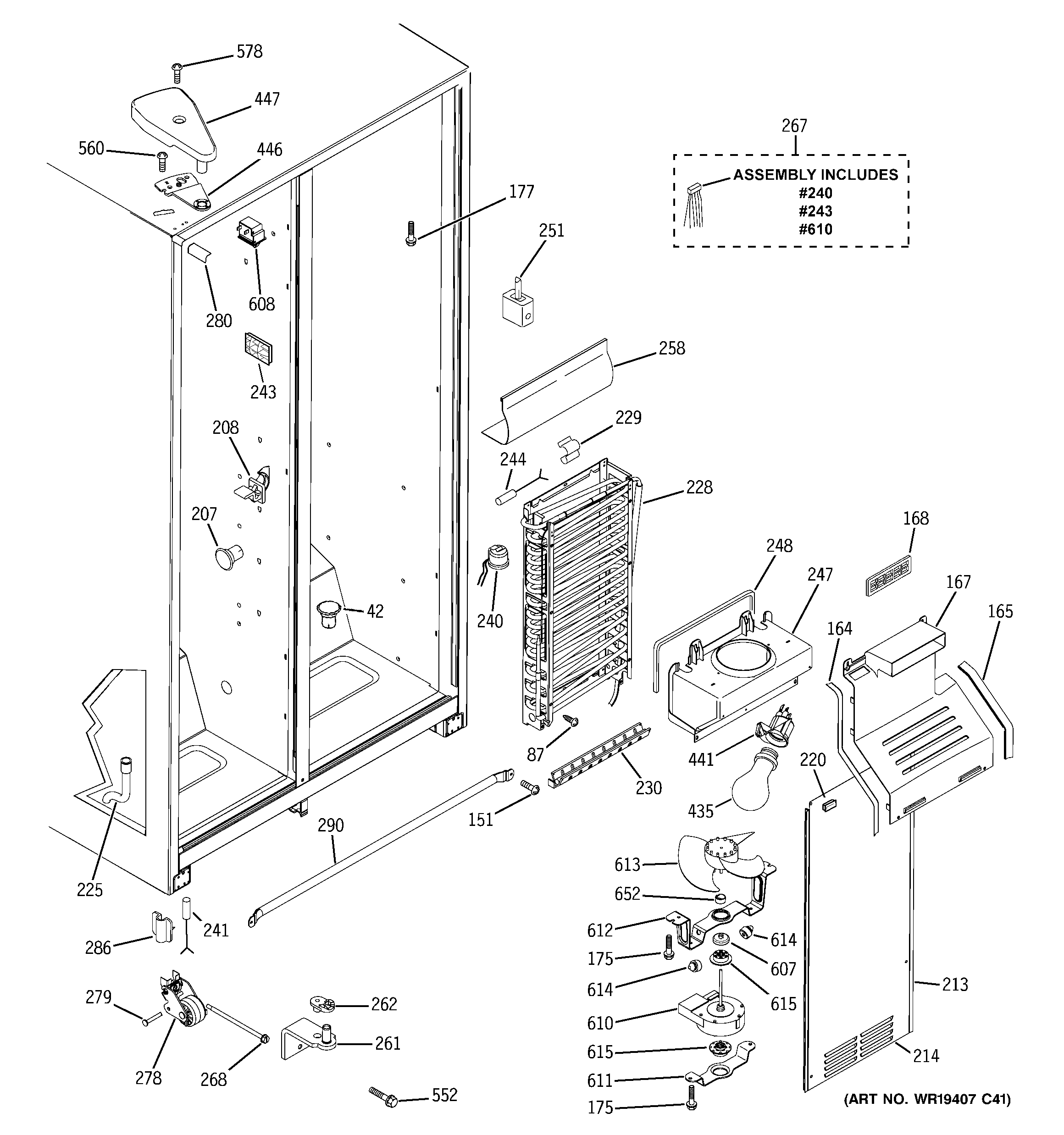

RSG22IBPDFWW FREEZER SECTION

RSG22IBPDFWW FREEZER SECTION

Written by

in

RSG22IBPDFWW FREEZER SECTION

Products

PositionProduct
42WR2X3139 GE Refrigerator Plug Button
87WZ4X241D GE Screw Package
151WR01X10623 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
164GEN WR14X10049
165GEN WR14X10048
167GEN WR17X11003
168GEN WR17X11004
175WR01X10652 GE Refrigerator Screw 8-18 AB IHW 5/8 S
177SCREW
207GEN WR02X4676
208GEN WR02X11561
213GEN WR14X10054
214GEN WR17X11147
220GEN WR02X11487
225GEN WR02X11476
228WR87X28949 GE Refrigerator Evaporator
229GEN WR02X10552
230GEN WR51X10048
240WR50X10068 GE Refrigerator Defrost Thermostat
241WR55X10025 GE Refrigerator Temperature Sensor
243GEN WR17X10842
247GEN WR17X11626
248GEN WR14X10050
251GEN WR02X10632
258GEN WR17X10765
261GEN WR13X10313
262WR02X11743 GE Refrigerator Hinge Cam Riser
267WR60X10185 GE Refrigerator Evaporator Fan Motor
268GEN WR01X10199
278WR02X12454 GE Refrigerator Mobility Front Assembly
279GEN WR02X10574
280GEN WR02X10549
286GEN WR17X10728
290GEN WR17X11528
435WR02X12207 GE Refrigerator Net Bulb Light
441WR2X9014 GE Refrigerator Socket & Terminal C02
446GEN WR13X10290
447CVR HNG WHT
552WR01X10600 GE Refrigerator Screw 12-24 Tapping Hex .811 S Z
560GEN WR01X10195
578WR01X10379 GE Refrigerator Hinge Cover Screw
607WR02X10322 GE Refrigerator Dust Cap B02
608FREEZER LIGHT SWITCH
611WR02X11622 GE Refrigerator Bottom Evaporator Fan Bracket
612GEN WR02X11124
613EVAPORATOR FAN BLADE
614BUMPER
615WR02X11331 GE Refrigerator Grommet
652WR02X12149 GE Refrigerator Ring
