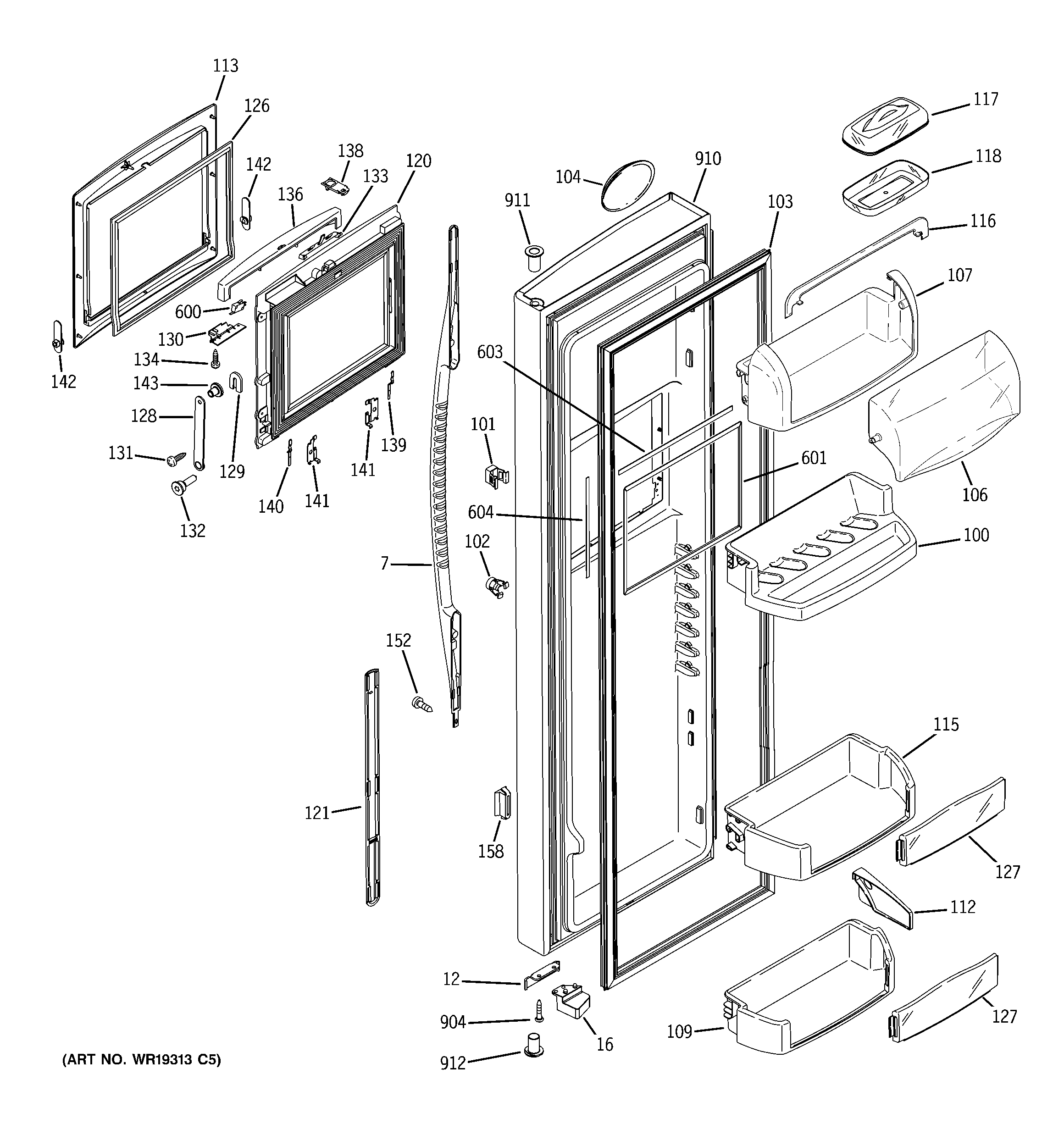

RSK29NHSBCCC FRESH FOOD DOOR

RSK29NHSBCCC FRESH FOOD DOOR

Written by

in

RSK29NHSBCCC FRESH FOOD DOOR

Products

Position	Product
7	GEN WR12X10432
12	GEN WR02X10817
16	WR02X10637 GE Refrigerator Cam Closure
100	GEN WR17X10806
101	WR02X10040 GE Refrigerator Rectangular Fastener
102	WR02X12272 GE Tubular Fastener
103	WR24X10155 GE Refrigerator White Door Gasket
104	GEN WR04X10115
106	WR22X10046 GE Refrigerator Clear Dairy Door
107	WR22X10045 GE Refrigerator Dairy Compartment
109	WR71X10979 GE Refrigerator Module Shelf Fresh Food
112	WR02X10582 GE Refrigerator Modu Snug R
113	GEN WR38X10233
115	WR71X10245 GE Refrigerator Shelf Module
116	WR22X10047 GE Refrigerator Trim DIARY Compartment
117	WR22X10059 GE Refrigerator Butter Dish Lid
118	GEN WR22X10018
120	GEN WR17X11293
121	GEN WR12X10431
126	WR24X10085 GE Refrigerator Door Gasket CMK
127	CLEAR INSERT DOOR MODULE
128	WR13X10005 GE Refrigerator Hinge Arm
129	WR02X10035 GE Hinge Cap Arm
130	WR02X10032 GE Refrigerator Bracket Side CMK
131	SCR 10-24 TX 11/16
132	WR02X10037 GE Refrigerator Stop Hinge Arm
133	WR02X10033 GE Refrigerator Door Trigr CMK
134	WR01X10616 GE Refrigerator Screw 6-10 PL FLP 1/2 S
136	GEN WR12X10439
138	WR02X10840 GE Refrigerator Door Latch
139	WR02X10659 GE Left Spring Leaf
140	WR02X10660 GE Leaf Spring Right
141	WR02X10651 GE Left Hand Bracket Retainer
141	WR02X10652 GE Right Hand Retainer Bracket
142	GEN WR02X10465
143	WR02X10041 GE Arm Hinge Stud
152	WR01X10620 GE Refrigerator Screw 10-32
158	GEN WR02X10646
600	WR23X10027 GE Refrigerator Micro Switch
601	WR02X11459 GE Inner Door Trim Assembly
603	WR02X11483 GE Foam Tape
604	WR02X11484 GE Foam Tape Short
904	WR01X10611 GE Screw
910	GEN WR78X10511
911	WR01X10957 GE Refrigerator Door Thimble
912	GEN WR01X10235
