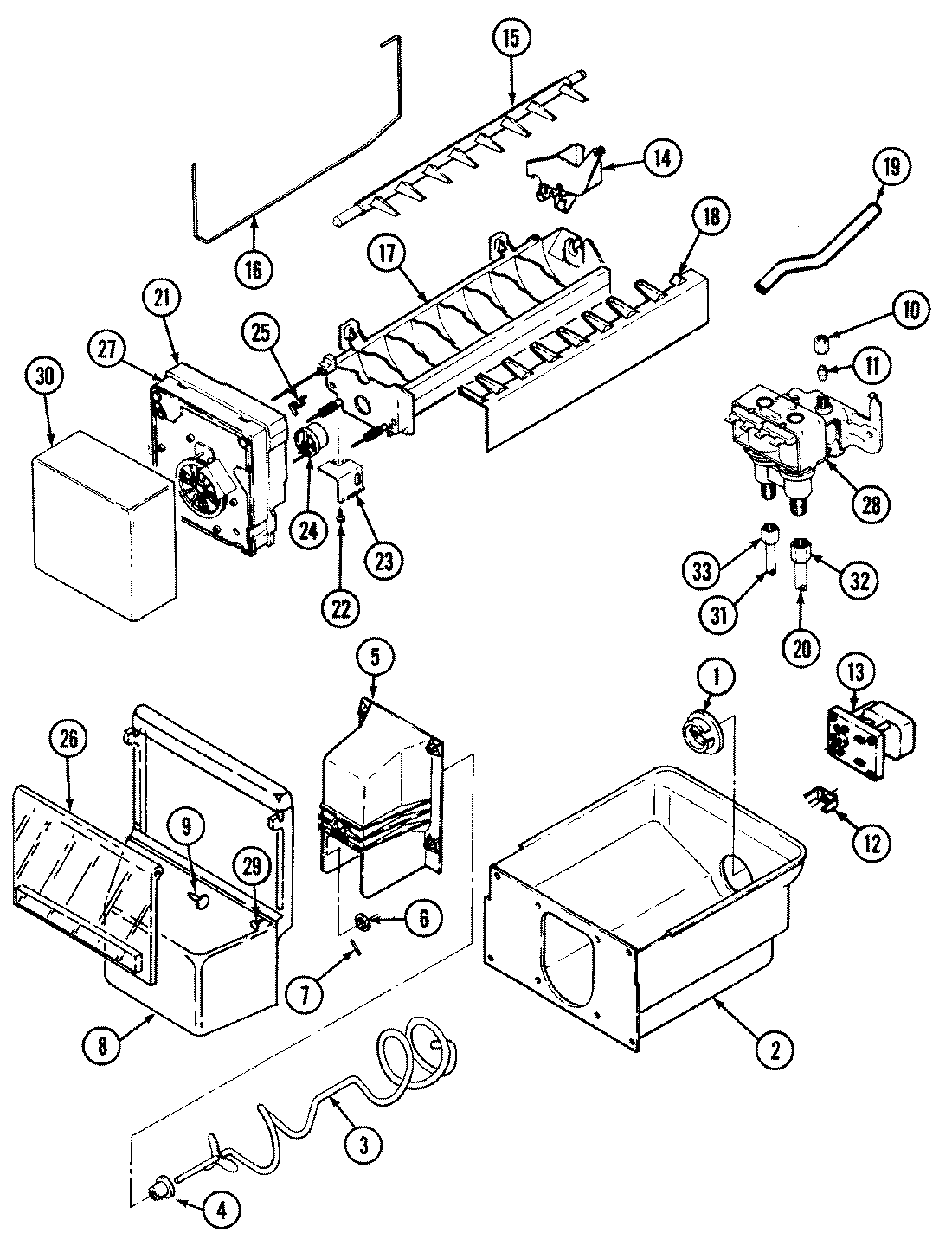

RSW2400CKL 16 – ICE MAKER & BIN

Products

Position	Product
1	WP61003336 Whirlpool Refrigerator Drive Ring
2	MAY 67830-1
3	MAY 67833-1
4	MAY 67172-2
5	MAY 67829-1
6	MAY 67834-2
7	MAY 492007-703
8	415013-35 Whirlpool Refrigerator Screw
8	MAY 69875-32
9	WP61006081 Whirlpool Refrigerator Top Cover
10	WP245183 Whirlpool Nut
11	WP487627 Whirlpool Refrigerator Sleeve
12	WP63052-2 Whirlpool Refrigerator Impeller
13	MAY 69048-1
13	MAY 65186-2
13	MAY 406026-103
14	WP628356 Whirlpool Refrigerator Fill Cup
15	WP627843 Whirlpool Refrigerator Ejector Arm
16	W11342242 Whirlpool Refrigerator Ice Level Arm
17	MAY Y06100047
18	WP2182124 Whirlpool Refrigerator Stripper Arm
19	MAY 67666-1
20	MAY 67187-5
21	SCREW
21	WP2195914 Whirlpool Refrigerator Ice Maker Housing
22	MAY 95108-1
23	BRACKET, MODULE & HEATER
24	MAY 95093-1
24	WP627985 Whirlpool Icemaker Cycling Thermostat
25	WP2315522 Whirlpool Refrigerator Clip
26	MAY 69038-15
27	MAY Y06100048
27	MAY 400031-1
27	WP489478 Whirlpool Refrigerator Screw
28	MAY 401018-1
28	MAY 69825-4
29	MAY 28272-6
30	MAY 68328-2
31	MAY 67579-2
32	MAY 69583-2
33	WP627018 Whirlpool Refrigerator Nut
