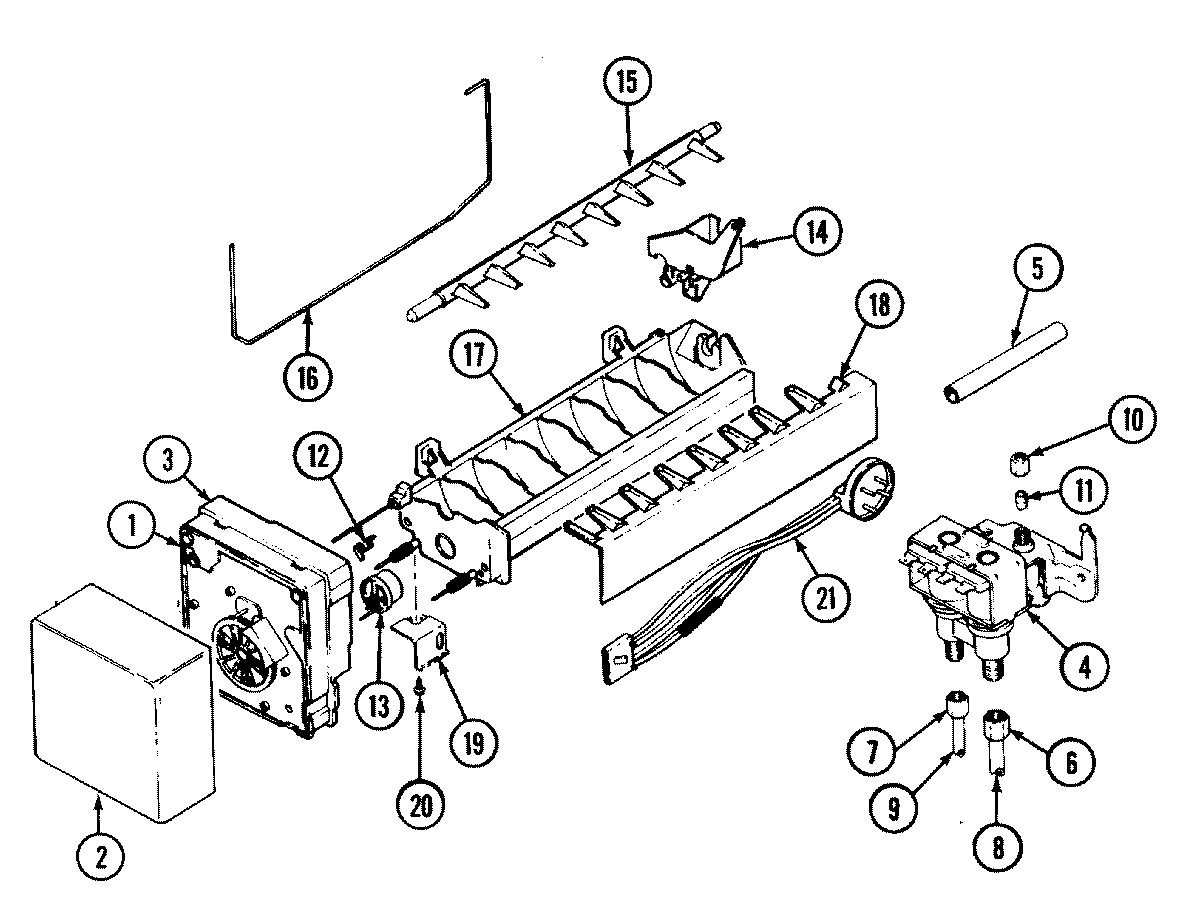

RSW24E0CAE 07 – ICE MAKER

Products

Position	Product
1	MAY 400031-1
1	MAY 95109-1
2	MAY 68328-2
3	WP2195914 Whirlpool Refrigerator Ice Maker Housing
3	SCREW
4	MAY 401018-1
4	MAY 69825-1
5	MAY 67666-1
6	MAY 69583-2
7	WP627018 Whirlpool Refrigerator Nut
8	MAY 67187-5
9	MAY 67579-2
10	WP245183 Whirlpool Nut
11	WP487627 Whirlpool Refrigerator Sleeve
12	WP2315522 Whirlpool Refrigerator Clip
13	WP627985 Whirlpool Icemaker Cycling Thermostat
13	MAY 95093-1
14	WP628356 Whirlpool Refrigerator Fill Cup
15	WP627843 Whirlpool Refrigerator Ejector Arm
16	W11342242 Whirlpool Refrigerator Ice Level Arm
17	D7824706Q Whirlpool Refrigerator Ice Maker Assembly
18	WP2182124 Whirlpool Refrigerator Stripper Arm
19	BRACKET, MODULE & HEATER
20	MAY 95108-1
21	MAY 70076-1
