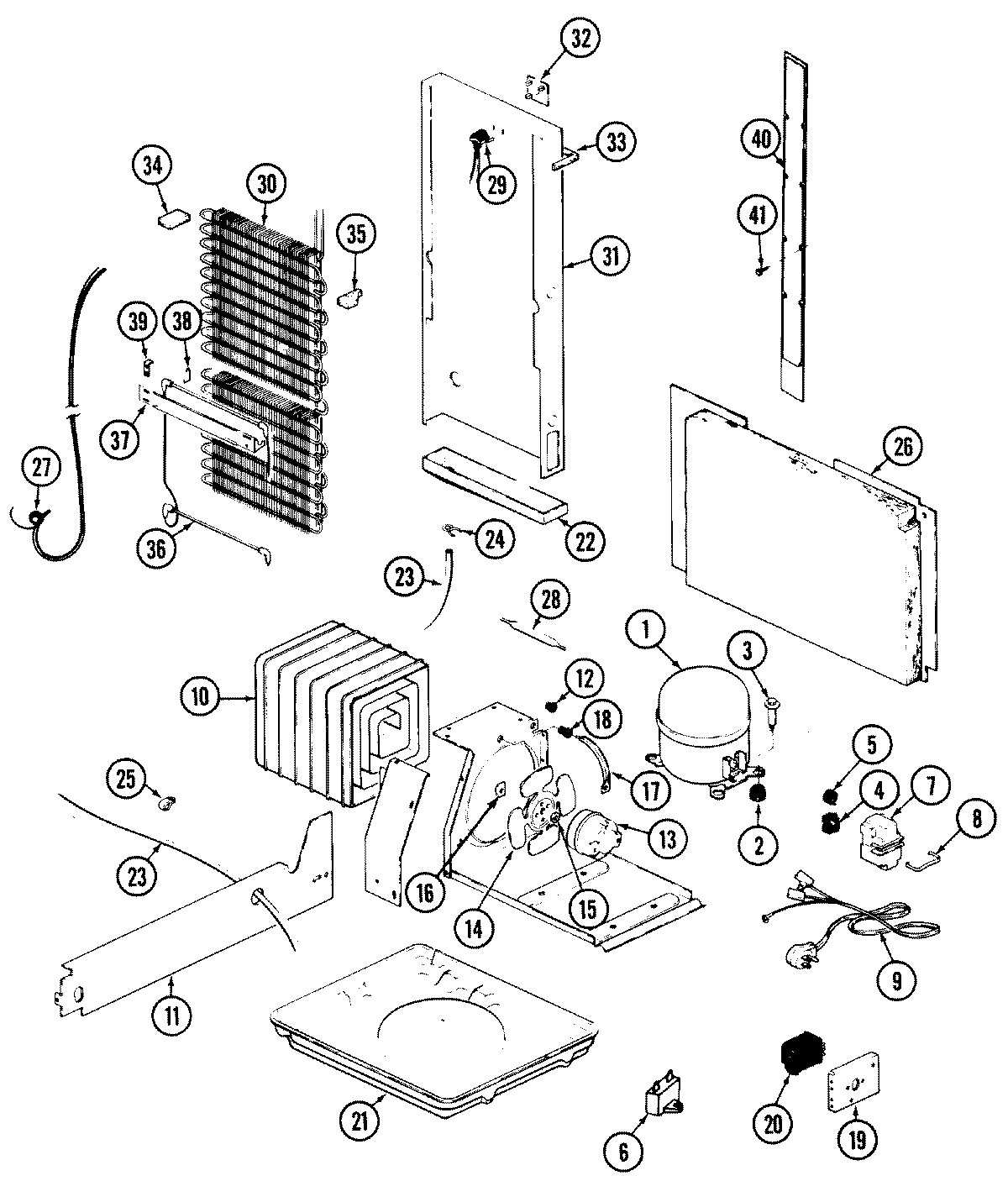

RSW24E0ZAE 09 – UNIT COMPARTMENT & SYSTEM

Products

Position	Product
NI	MAY 108872-1
NI	MAY 108617-1
NI	MAY 16000327
1	MAY 69062-1
2	MAY 17245-4
3	MAY 65275-9
4	MAY 66588-5
5	MAY 69105-6
6	WP65889-4 Whirlpool Refrigerator Capacitor
7	MAY 66589-2
8	MAY 65886-1
9	MAY 52890-3
10	MAY 64998-1
10	MAY 60408-2
10	MAY 400062-1
11	MAY 66494-1
12	MAY 53351-1
13	833697 Whirlpool Condenser Fan Motor
13	MAY 65275-33
14	WP12587601 Whirlpool Refrigerator Condenser Blade
15	MAY 69063-1
16	WP486692 Whirlpool Refrigerator Nut
17	MAY 69181-1
18	MAY 56933-1
19	MAY 29282-2
20	MAY 405007-1
20	MAY 69543-6
22	MAY 53523-2
23	MAY 26911-25
24	WP596669 Whirlpool Hose Clamp
25	MAY 53516-5
26	MAY 69139-3
26	WP488729 Whirlpool Refrigerator Door Screw
27	MAY 65013-15
27	MAY 26088-23
27	MAY 66223-1
28	SEE NOTE GROUND WIRE, GREEN
29	MAY 52085-29
30	MAY 52551-22
31	MAY 68834-2
32	MAY 55878-1
33	MAY 66325-18
34	MAY 65063-1
35	MAY 65064-1
36	MAY 69848-2
37	MAY 29915-13
38	MAY 52067-1
39	MAY 52561-1
40	MAY 69805-1
40	MAY 67094-1
41	WP489478 Whirlpool Refrigerator Screw
