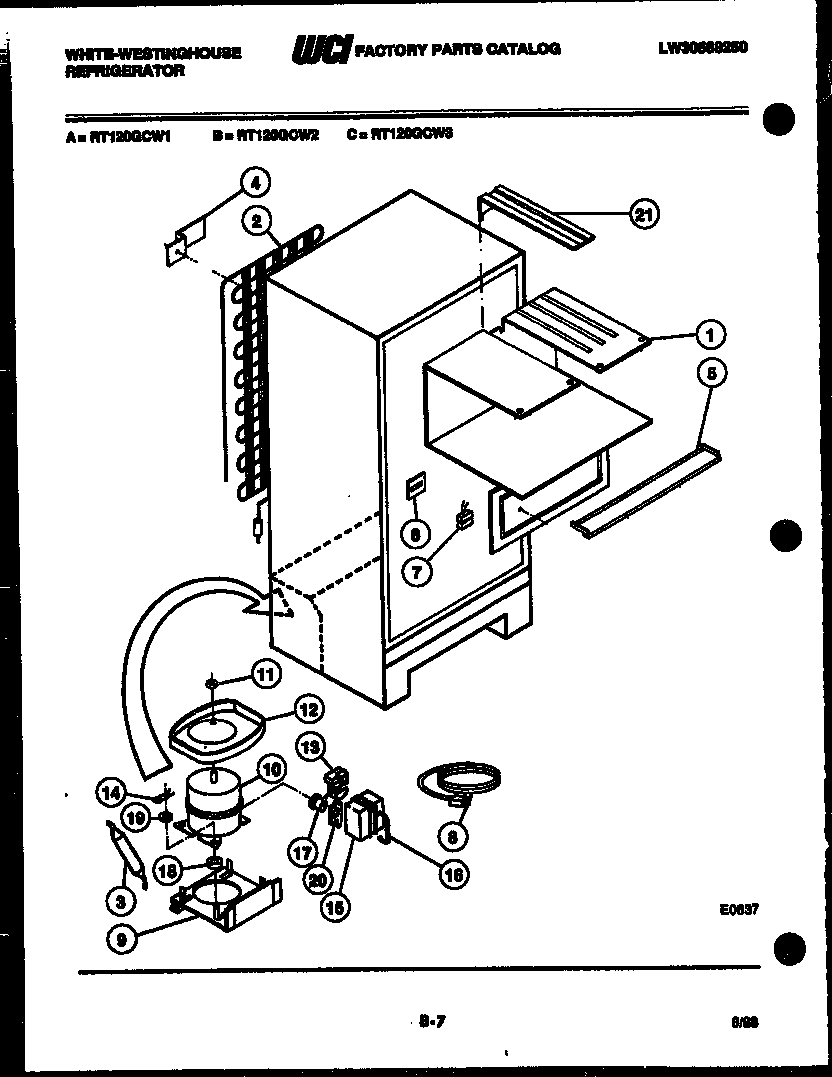

RT120GCD1 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
1	WCI G163384
2	WCI G164857
3	5303305677 Frigidaire Replacement Filter Dryer Filters
3A	WCI R900125
4	BRACKET-CONDENSER MOUNTING (4)
5	WCI G162980-01
6	WCI G178497
7	WCI G162743
8	CORD, SERVICE
9	WCI G162822
10	COMPRESSOR W/RELAY-OVLD, (SEE NOTES 1 AND 2)
11	NUT, LOCK
12	DEFROST PAN-ORIGINAL COMPRESSOR
13	WCI G150618-11
14	CLIP, COMPRESSOR MOUNTING (4)
16	5303006412 Frigidaire Refrigerator Cover Mounting Strap
17	WCI G166094
18	218513300 Frigidaire Refrigerator Compressor Mount Grommet
19	WCI G168120
20	CLIP, OVERLOAD
20A	HOT TUBE REPAIR KIT (NON-ILLUSTRATED)
