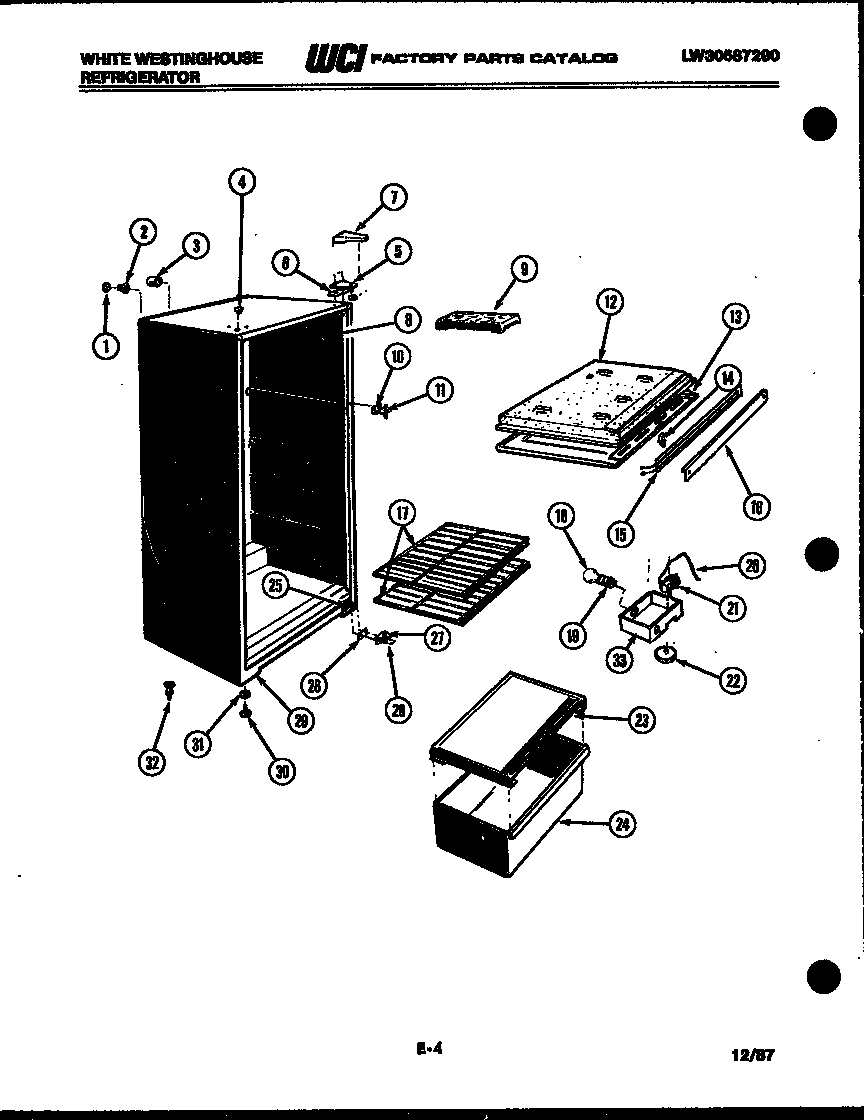

RT120GLD4 03 – CABINET PARTS

Products

Position	Product
1	WCI G174733
2	WCI G174734
3	TUBE, INSULATION (2)
4	WCI G174747-11
5	BRACKET, TOP HINGE
6A	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
6	WCI G183861
6A	WCI G103903
7	COVER, TOP HINGE, ALMOND
8	TRIM CORNER-ALMOND
9	215667501 Frigidaire Refrigerator Ice Tray Primary
10	BRACKET, HINGE CENTER
11	WCI G142220
12	WCI G163220
13	WCI G174766
14	5309918806 Frigidaire Refrigerator Light Switch Door
15	WCI G187921
16A	SPACER-MULLION MOUNTING (2) (NON-ILLUSTRATED)
16	WCI G174520-11
16A	CLAMP, MULLION MOUNTING
17	SHELF-SLIDING (2)
18	316538904 Frigidaire Oven Lamp Light
19	SOCKET LIGHT
20	TUBE
21	WCI G162205-02
22A	WCI G180037
22	KNOB
23	COVER
24	WCI G162973-34
25	TAPPING, PLATE (2)
26	SHIM, HINGE
27	5303001321 Frigidaire Refrigerator Lower Hinge Pin
28	BRACKET, HINGE, LOWER
29	WCI G166912
30	LEG-LEVELING (2)
31	NUT, ANCHOR (2)
32	CLIP (4)
32A	WIRING HARNESS-MAIN
33	WCI G176722-02
