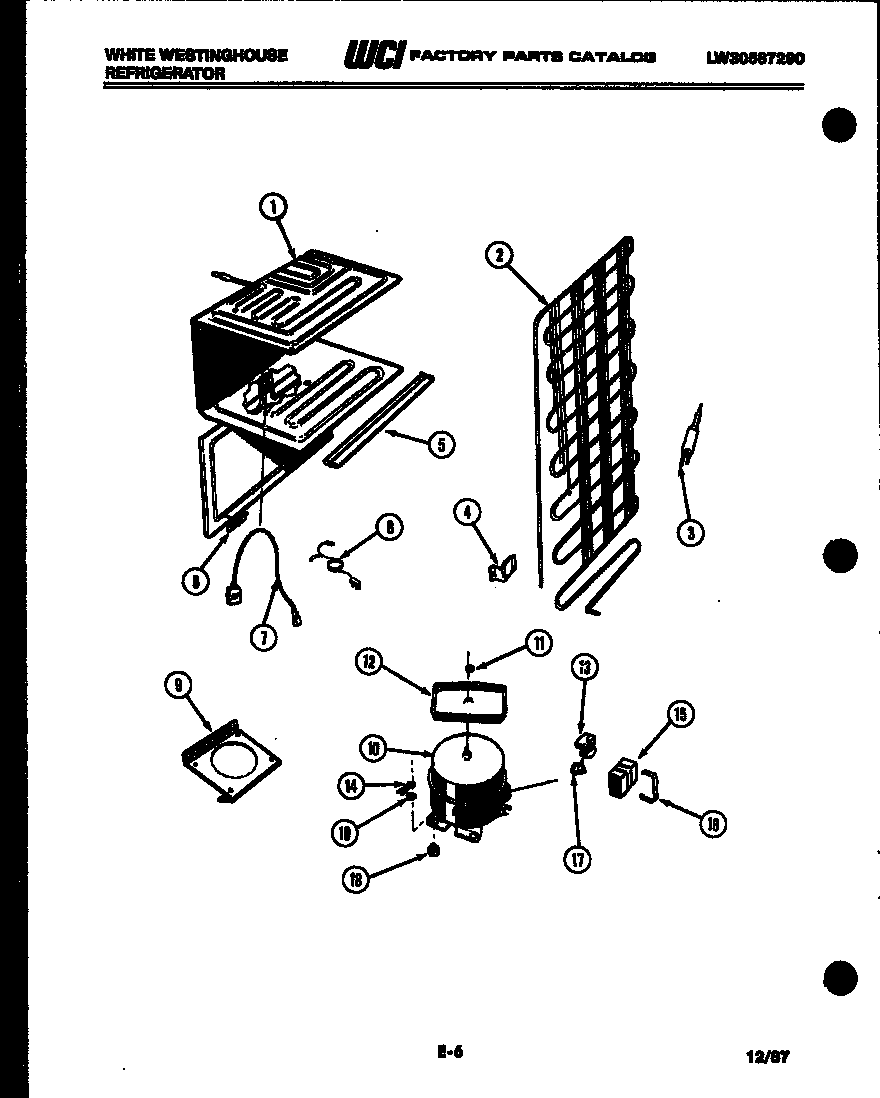

RT120GLV4 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*49341	HOT TUBE REPAIR KIT (NON-ILLUSTRATED)
1	WCI G186727
2	WCI G164857
3	5303305677 Frigidaire Replacement Filter Dryer Filters
4	BRACKET-CONDENSER MOUNTING (4)
5	WCI G162980-01
6	WCI G178497
7	WCI G186467
8	CORD, SERVICE
9	WCI G162822
10A	WCI G167234
10	WCI G186043
11	NUT, LOCK
12	DEFROST PAN
13	WCI G182225-13
14	CLIP, COMPRESSOR MOUNTING (4)
15	WCI G185792
16	STRAP-COVER
17	WCI G187172
18	218513300 Frigidaire Refrigerator Compressor Mount Grommet
19	WASHER, COMPRESSOR MOUNTING (4)
