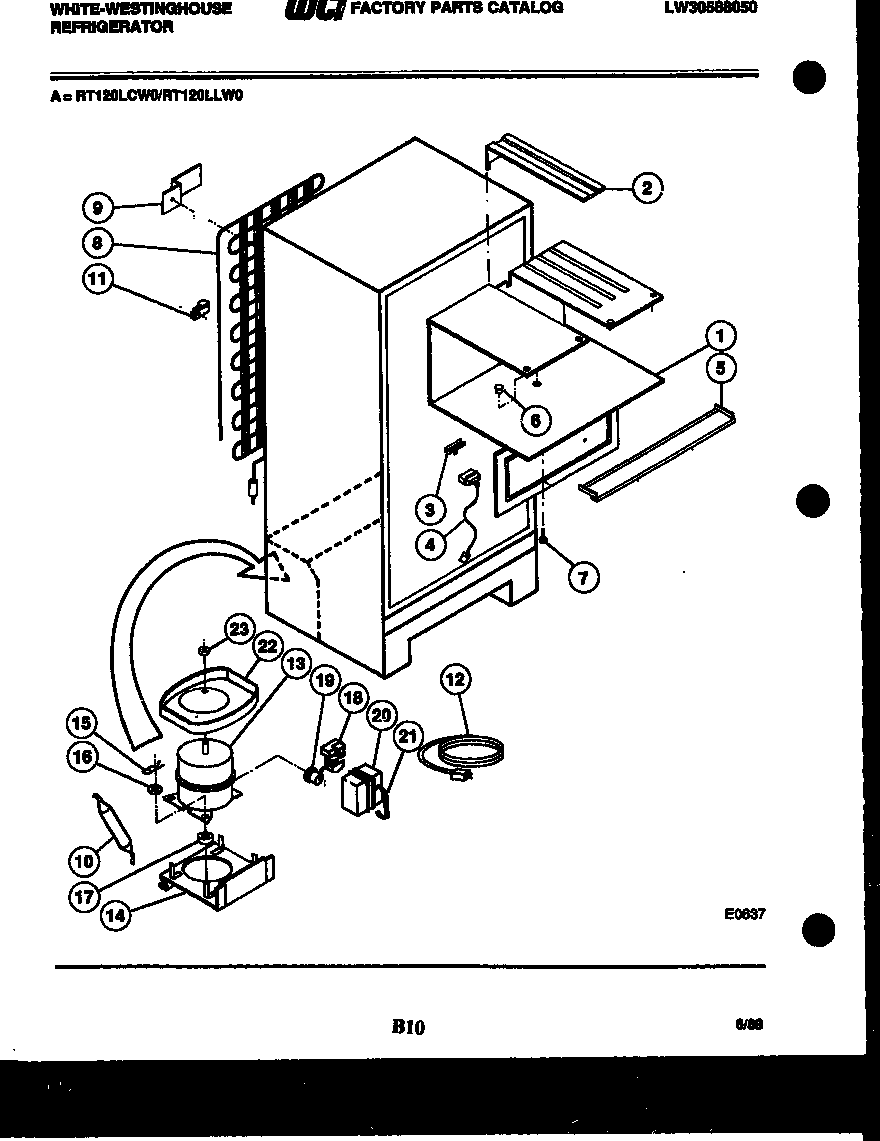

RT120LCV0 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*14512	WCI G167234
*14513	HOT TUBE REPAIR KIT (NON-ILLUSTRATED)
*14513	WIRING HARNESS-MAIN
1	WCI G186727
2	WCI 189211
3	WCI G178497
4	WCI G186467
5	WCI G162980-01
6	WCI G164854
7	SCREW (5)
8	WCI G164857
9	BRACKET-CONDENSER MOUNTING (4)
10	5303305677 Frigidaire Replacement Filter Dryer Filters
11	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
12	CORD, SERVICE
13	WCI G186043
14	WCI G162822
15	CLIP, COMPRESSOR MOUNTING (4)
16	WASHER, COMPRESSOR MOUNTING (4)
17	218513300 Frigidaire Refrigerator Compressor Mount Grommet
18	WCI G182225-13
19	WCI G187172
20	WCI G185792
21	STRAP-COVER
22	DEFROST PAN
23	NUT, LOCK
