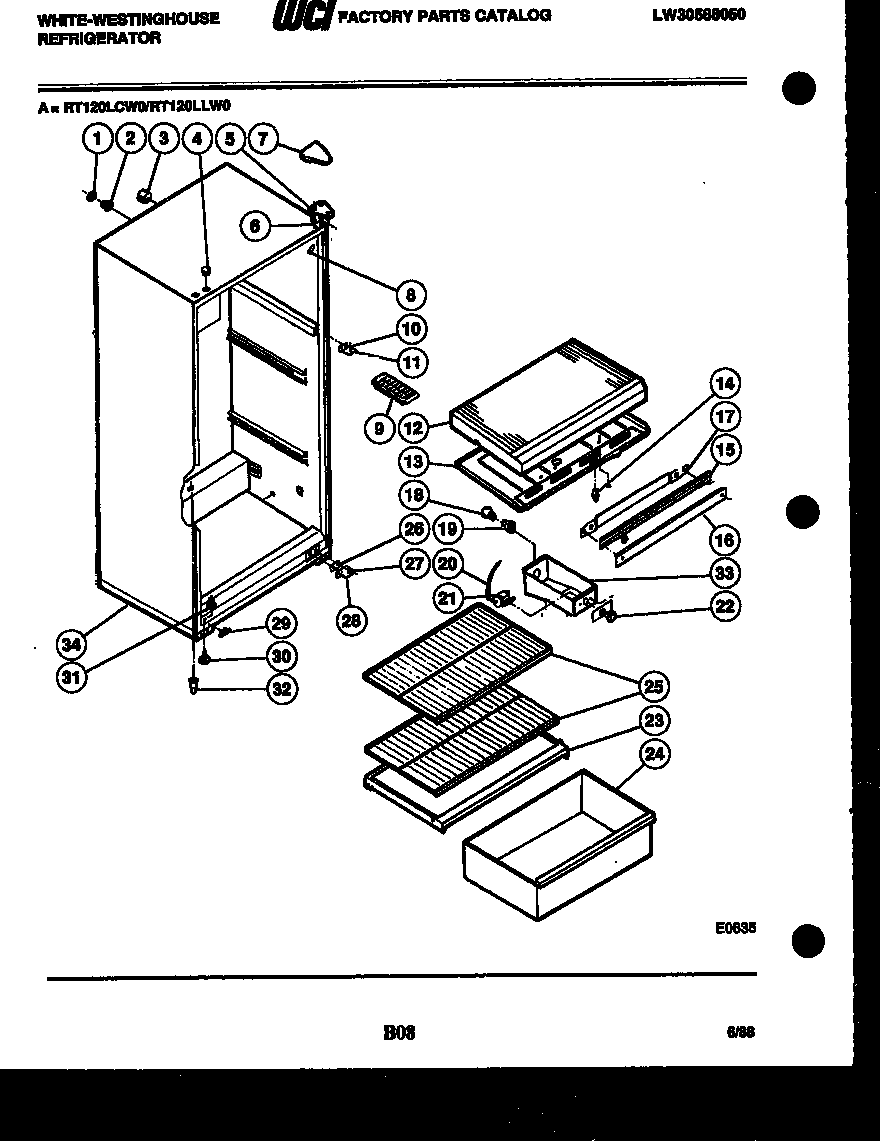

RT120LLV0 03 – CABINET PARTS

Products

Position	Product
*14509	BUTTON, PLUG, LINER (2)
1	WCI G174733
2	WCI G174734
3	TUBE, INSULATION (2)
4	WCI G174747-08
5B	241710601 Frigidaire Refrigerator Screw
5	BRACKET, TOP HINGE
6	WCI G183861
7	COVER, TOP HINGE, AVOCADO
8	TRIM-CAB CORNER-AVOC
9	215667501 Frigidaire Refrigerator Ice Tray Primary
10	BRACKET, HINGE CENTER
11	WCI G142220
11A	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
12	WCI G163220
13	WCI 3016980
14	5309918806 Frigidaire Refrigerator Light Switch Door
15	WCI G187921
17B	SPACER-MULLION MOUNTING (2) (NON-ILLUSTRATED)
17	CLAMP, MULLION MOUNTING
17A	SCREW, BRACKET MOUNTING (4)
17C	WASHER (2)
18	316538904 Frigidaire Oven Lamp Light
19	SOCKET LIGHT
20	TUBE
21	WCI G162205-02
22	KNOB
23	COVER
24	WCI G162973-34
25	SHELF-SLIDING (2)
26	SHIM, HINGE
27A	WCI G103903
27	5303001321 Frigidaire Refrigerator Lower Hinge Pin
28B	TAPPING, PLATE (2)
28	BRACKET, HINGE, LOWER
29	WCI G166912
30	LEG-LEVELING (2)
31	NUT, ANCHOR (2)
32	CLIP (4)
33A	WCI G180037
33	WCI G176722-02
34	BASE-CABINET
