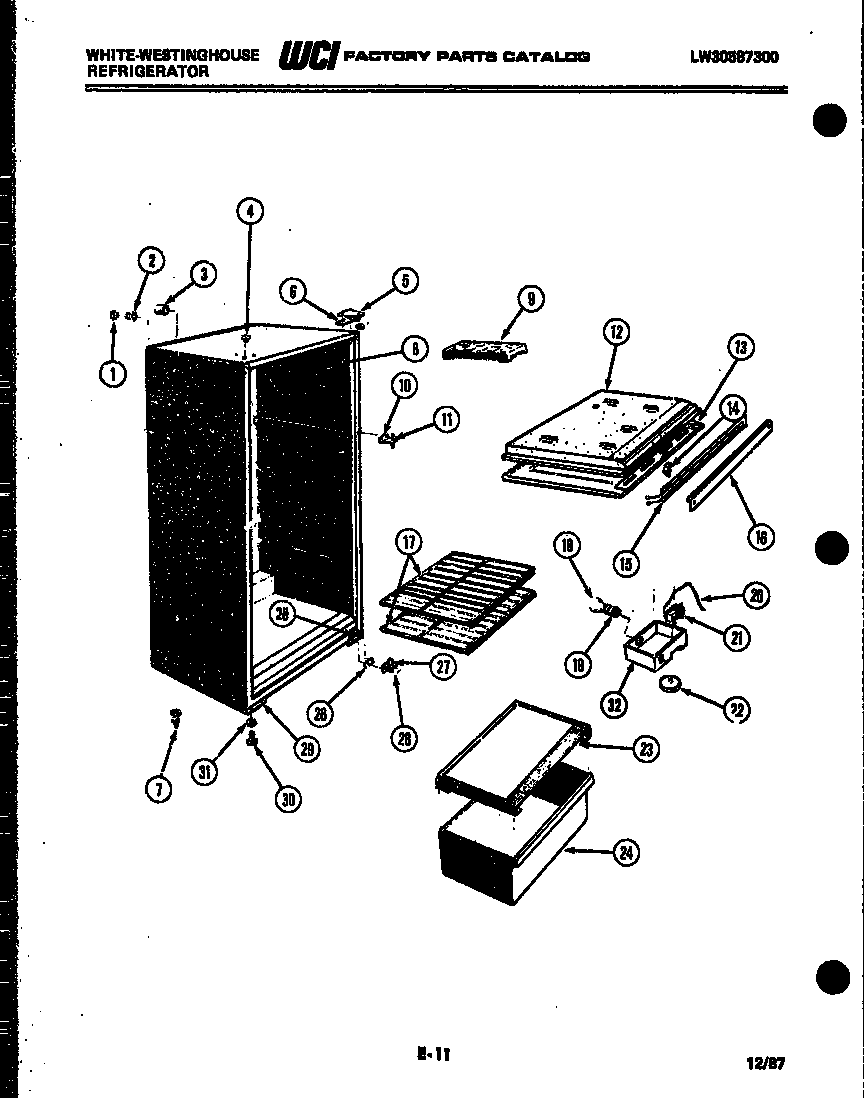

RT123GCHA 03 – CABINET PARTS

Products

Position	Product
1	WCI G174733
2	WCI G174734
3	TUBE, INSULATION (2)
4	WCI G174747-09
5	BRACKET, TOP HINGE
6	WCI G183861
6A	WCI G103903
6A	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
7	CLIP (4)
8	TRIM, WHEAT
9	215667501 Frigidaire Refrigerator Ice Tray Primary
10	BRACKET, HINGE CENTER
11	WCI G142220
12	DIVIDER-COMPARTMENT
13	TOP-REFRIGERATOR
14	5309918806 Frigidaire Refrigerator Light Switch Door
15	WCI G187921
16A	CLAMP, MULLION MOUNTING
16	WCI G174520-09
16B	SPACER-MULLION MOUNTING (2) (NON-ILLUSTRATED)
17	SHELF-SLIDING (2)
18	316538904 Frigidaire Oven Lamp Light
19	SOCKET LIGHT
20	TUBE
21	CONTROL-COLD
22	KNOB
22A	LABEL-BOX
23	COVER
24	WCI G162973-34
25	TAPPING, PLATE (2)
26	SHIM, HINGE
27	5303001321 Frigidaire Refrigerator Lower Hinge Pin
28	BRACKET, HINGE, LOWER
29	WCI G166912
30	LEG-LEVELING (2)
31A	SWITCH SLIDE
31	NUT, ANCHOR (2)
32	WCI G176722-01
