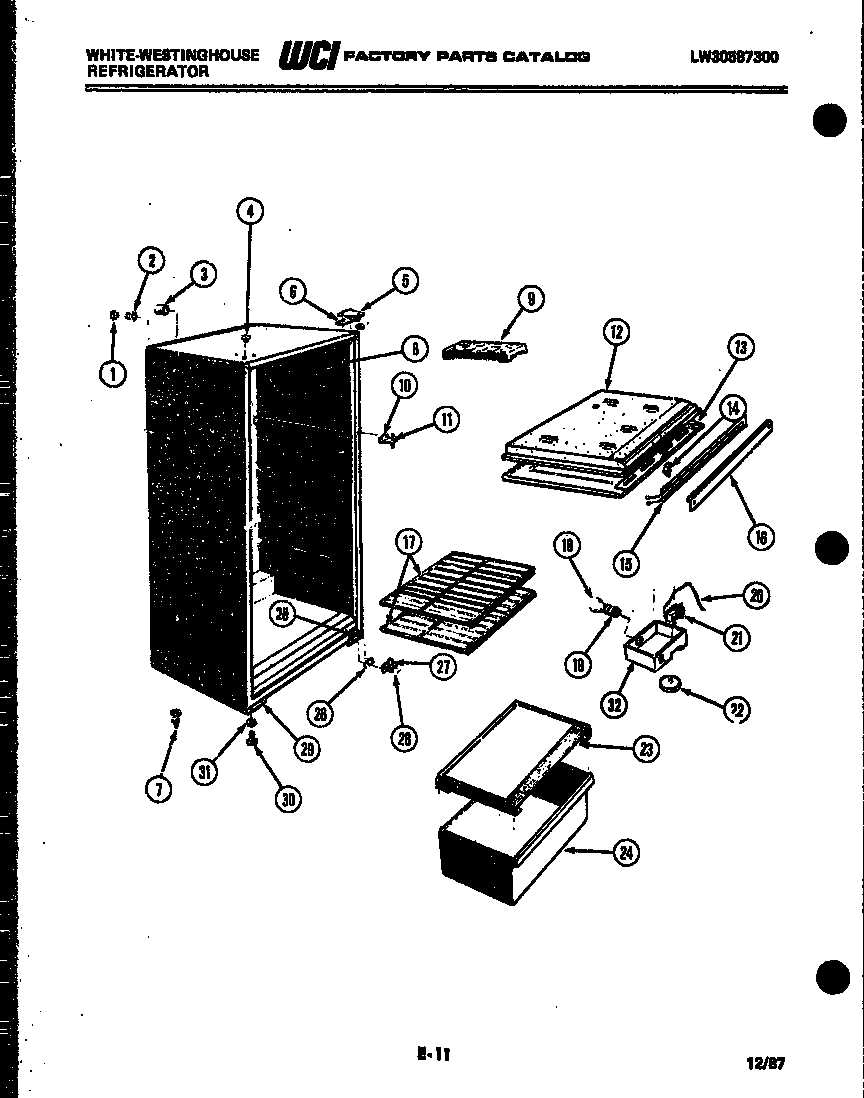

RT123GLFA 03 – CABINET PARTSadmin2025-04-26T08:43:28+00:00RT123GLFA 03 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | WCI G174733 |
| 2 | WCI G174734 |
| 3 | TUBE, INSULATION (2) |
| 4 | WCI G174747-10 |
| 5 | BRACKET, TOP HINGE |
| 6 | WCI G183861 |
| 6A | WCI G103903 |
| 6A | WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET) |
| 7 | CLIP (4) |
| 8 | TRIM, COFFEE |
| 9 | 215667501 Frigidaire Refrigerator Ice Tray Primary |
| 10 | BRACKET, HINGE CENTER |
| 11 | WCI G142220 |
| 12 | DIVIDER-COMPARTMENT |
| 13 | TOP-REFRIGERATOR |
| 14 | 5309918806 Frigidaire Refrigerator Light Switch Door |
| 15 | WCI G187921 |
| 16 | WCI G174520-10 |
| 16B | SPACER-MULLION MOUNTING (2) (NON-ILLUSTRATED) |
| 16A | CLAMP, MULLION MOUNTING |
| 17 | SHELF-SLIDING (2) |
| 18 | 316538904 Frigidaire Oven Lamp Light |
| 19 | SOCKET LIGHT |
| 20 | TUBE |
| 21 | CONTROL-COLD |
| 22 | KNOB |
| 22A | LABEL-BOX |
| 23 | COVER |
| 24 | WCI G162973-34 |
| 25 | TAPPING, PLATE (2) |
| 26 | SHIM, HINGE |
| 27 | 5303001321 Frigidaire Refrigerator Lower Hinge Pin |
| 28 | BRACKET, HINGE, LOWER |
| 29 | WCI G166912 |
| 30 | LEG-LEVELING (2) |
| 31 | NUT, ANCHOR (2) |
| 31A | SWITCH SLIDE |
| 32 | WCI G176722-01 |
