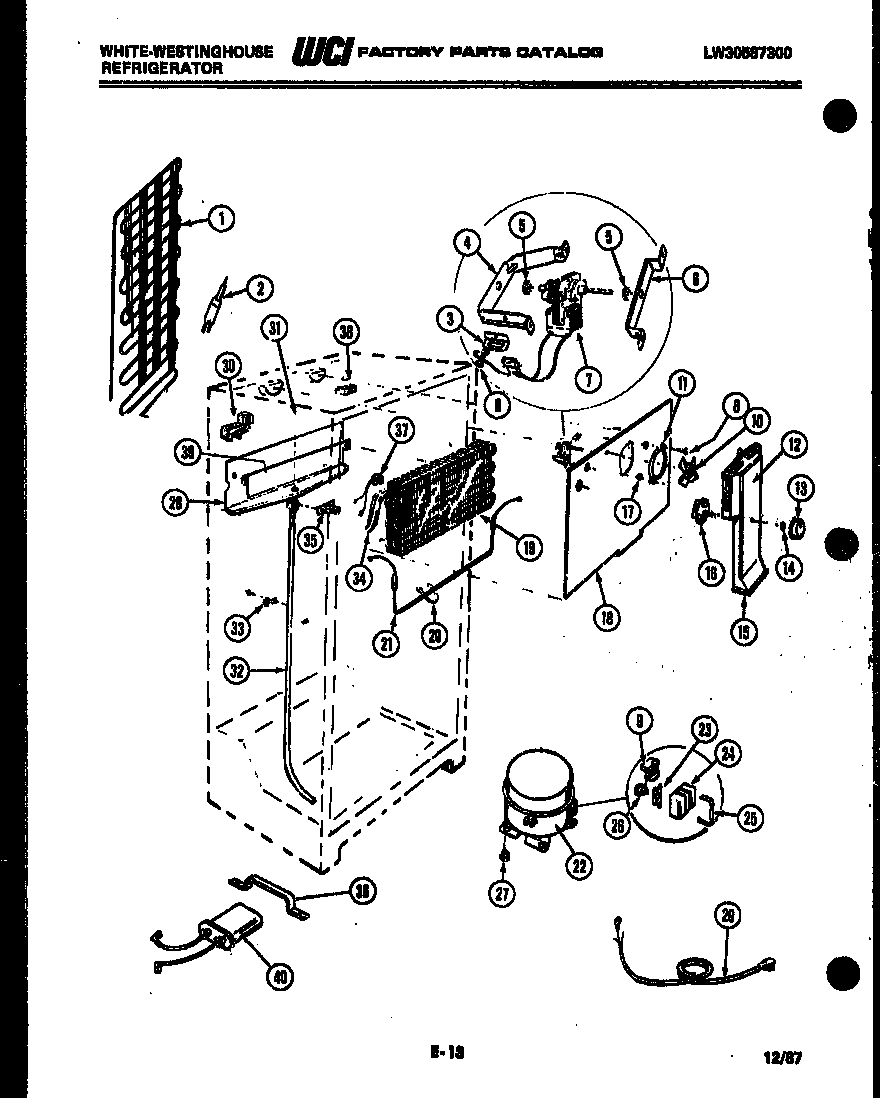

RT123GLFA 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
1	WCI G164924
2	5303305677 Frigidaire Replacement Filter Dryer Filters
3	WCI G164571
4	WCI G185303
5	G187559 Frigidaire Refrigerator Bushing
6	WCI G185302
7	5300158289 Frigidaire Evaporator Fan Motor
8	218843801 Frigidaire Refrigerator Screw
9	WCI G182225-18
10	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
11	RING, FAN ORIFICE
12	LABEL-FAN COVER (NON-ILLUSTRATED)
13	WCI G162663-15
14	NUT, DAMPER MOUNTING
15	WCI 3016524
16	DAMPER FAN COVER
17	NUT, ORIFICE (2)
18	COVER-EVAPORATOR COIL (2)
19	EVAPORATOR
20	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
21	WCI G162432-02
22	WCI G190360
23	RETAINER, OVERLOAD
25	5303006412 Frigidaire Refrigerator Cover Mounting Strap
26	WCI G188877
27	218513300 Frigidaire Refrigerator Compressor Mount Grommet
28	WCI G163216
29	CORD, SERVICE
30	BLOCK, LEFT SIDE
31	WCI G101620
32	CLIP (4)
33	240396801 Frigidaire Refrigerator Tube Clamp
34	WCI G149013
35	SPOUT DRAIN TUBE
36	STRAP-CAPACITOR
37	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
38	PLUG, EVAPORATOR INSULATION BLOCK, R H
38A	HOT TUBE REPAIR KIT (NON-ILLUSTRATED)
39	INSULATOR-EVAPORATOR
40	WCI G188885-01
