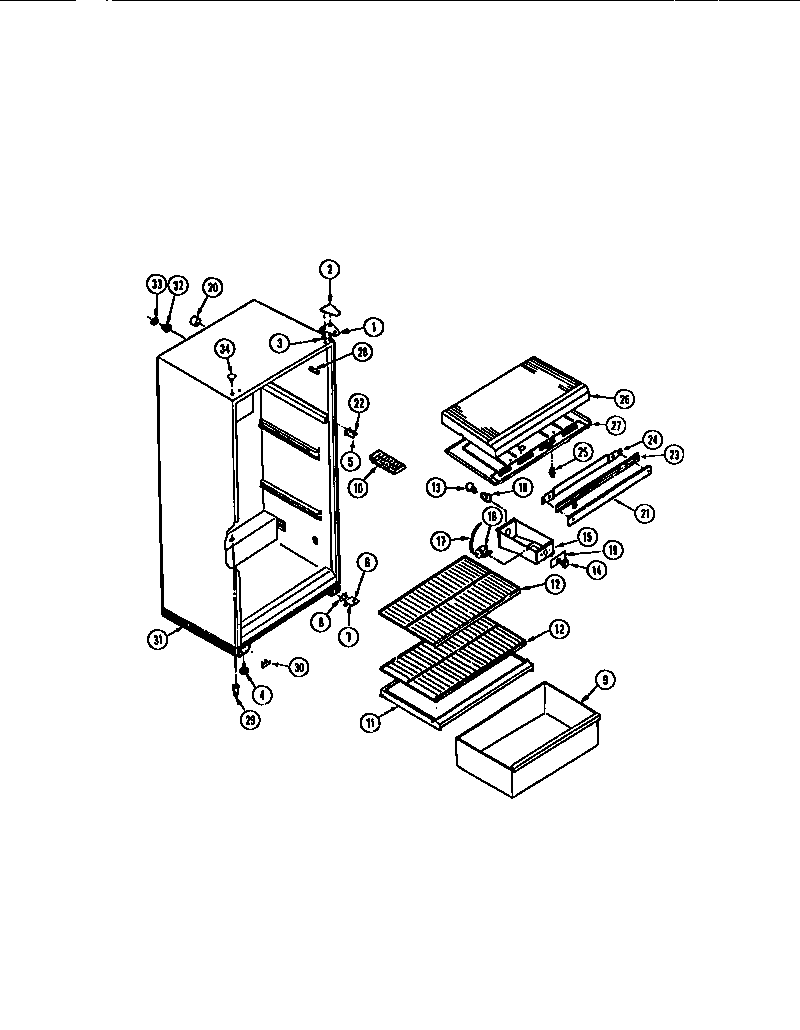

RT12C2DS2B 03 – CABINET

Products

Position	Product
*75486	BUTTON, PLUG, LINER (2)
*75485	TAPPING, PLATE (2)
*75487	WIRING HARNESS-MAIN
1A	241710601 Frigidaire Refrigerator Screw
1	BRACKET, TOP HINGE
2	COVER, TOP HINGE, ALMOND
3B	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
3	WCI G183861
3A	WCI G103903
4A	NUT, ANCHOR (2)
4	LEG-LEVELING (2)
5	WCI G142220
6	5303001321 Frigidaire Refrigerator Lower Hinge Pin
7	BRACKET, HINGE, LOWER
8	SHIM, HINGE
9	WCI G162973-31
10	215667501 Frigidaire Refrigerator Ice Tray Primary
11	COVER-CRISPER
12	SHELF (2)
13	316538904 Frigidaire Oven Lamp Light
14	WCI G174750-01
15	CONTROL BOX
15A	WCI G176554-01
15B	5304455650 Frigidaire Refrigerator Screw
16A	WCI G107080
16	WCI G162205-02
17	TUBE
18	SOCKET LIGHT
19	LABEL-CONTROL BOX
20	TUBE, INSULATION (2)
21B	SPACER-MULLION MOUNTING (2) (NON-ILLUSTRATED)
21	WCI G174520-11
21A	WASHER (2)
22A	SCREW, BRACKET MOUNTING (4)
22	BRACKET, HINGE CENTER
23	WCI G187921
24	CLAMP, MULLION MOUNTING
25	5309918806 Frigidaire Refrigerator Light Switch Door
26	WCI G163220
27	WCI G174766
28	WCI G162634-11
29	CLIP (4)
30	WCI G166912
31	BASE-CABINET
32	WCI G174733
33	WCI G174734
34	WCI G174747-11
