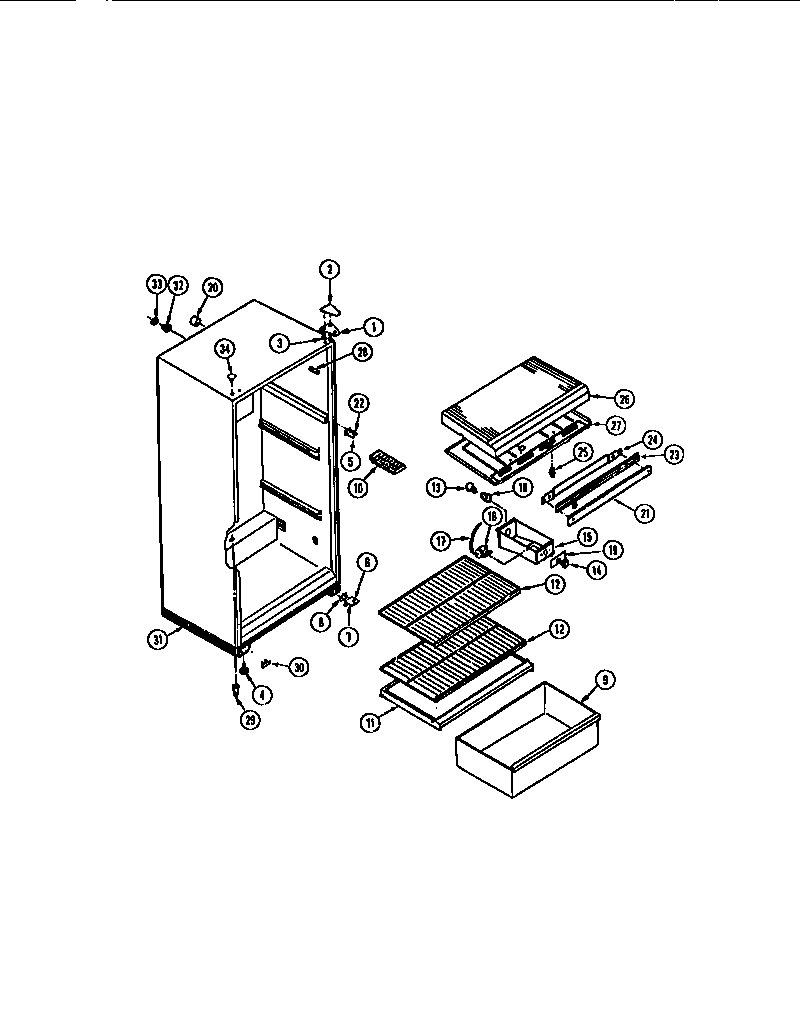

RT12C2YS2A 03 – CABINET

Products

Position	Product
*75486	BUTTON, PLUG, LINER (2)
*75487	WIRING HARNESS-MAIN
*75485	TAPPING, PLATE (2)
1A	241710601 Frigidaire Refrigerator Screw
1	BRACKET, TOP HINGE
2	COVER HINGE, WHEAT
3A	WCI G103903
3	WCI G183861
3B	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
4A	NUT, ANCHOR (2)
4	LEG-LEVELING (2)
5	WCI G142220
6	5303001321 Frigidaire Refrigerator Lower Hinge Pin
7	BRACKET, HINGE, LOWER
8	SHIM, HINGE
9	WCI G162973-31
10	215667501 Frigidaire Refrigerator Ice Tray Primary
11	COVER-CRISPER
12	SHELF (2)
13	316538904 Frigidaire Oven Lamp Light
14	WCI G174750-01
15	CONTROL BOX
15B	5304455650 Frigidaire Refrigerator Screw
15A	WCI G176554-01
16	WCI G162205-02
16A	WCI G107080
17	TUBE
18	SOCKET LIGHT
19	LABEL-CONTROL BOX
20	TUBE, INSULATION (2)
21	WCI G174520-09
21A	WASHER (2)
21B	SPACER-MULLION MOUNTING (2) (NON-ILLUSTRATED)
22A	SCREW, BRACKET MOUNTING (4)
22	BRACKET, HINGE CENTER
23	WCI G187921
24	CLAMP, MULLION MOUNTING
25	5309918806 Frigidaire Refrigerator Light Switch Door
26	WCI G163220
27	WCI G174766
28	WCI G162634-09
29	CLIP (4)
30	WCI G166912
31	BASE-CABINET
32	WCI G174733
33	WCI G174734
34	WCI G174747-09
