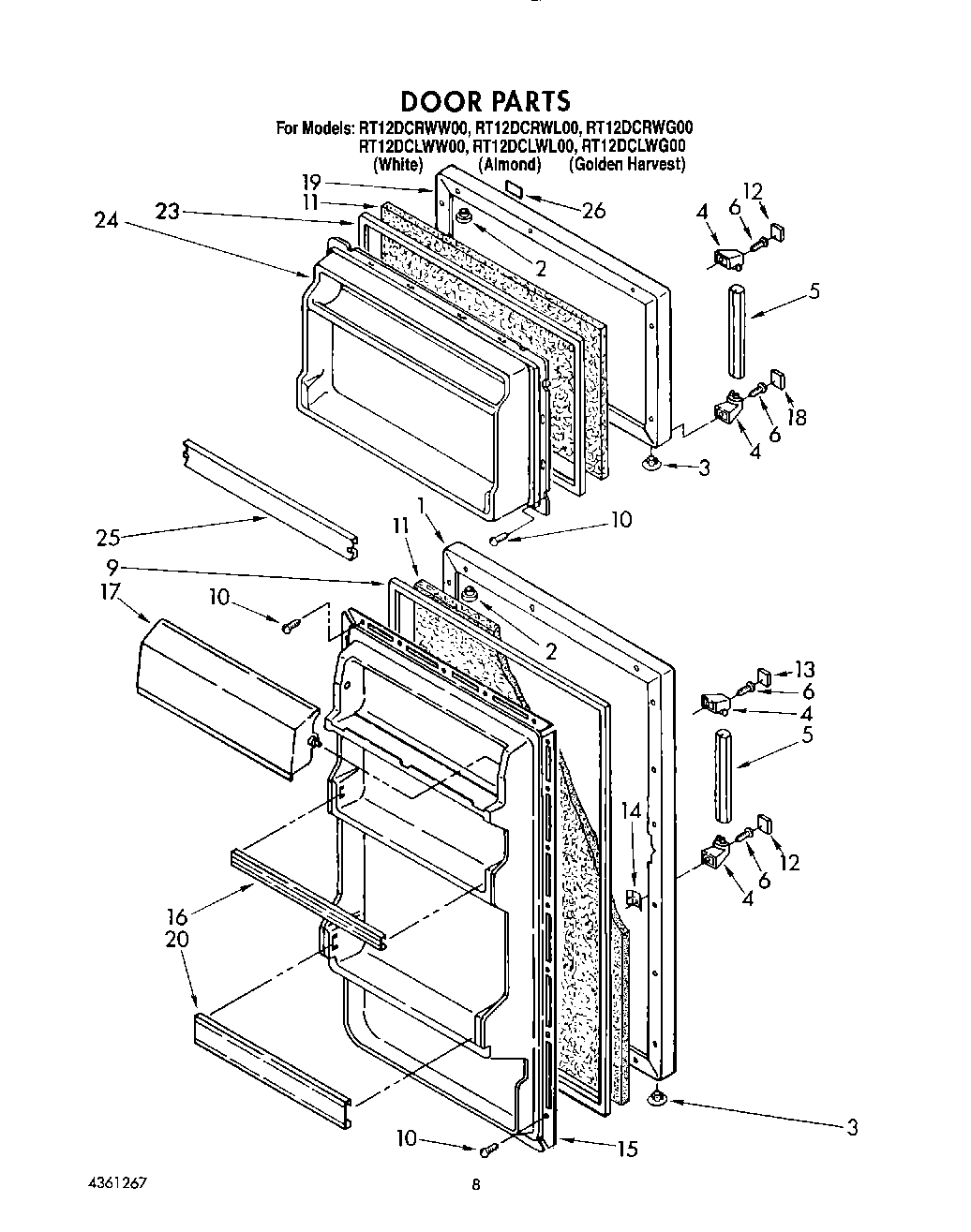

RT12DCLWG00 06 – DOOR, LIT/OPTIONAL

RT12DCLWG00 06 – DOOR, LIT/OPTIONAL

Written by

in

RT12DCLWG00 06 – DOOR, LIT/OPTIONAL

Products

PositionProduct
WPL LIT2152220
WPL LIT2148877
WPL LIT1128207
WPL LIT4361267
1WPL 944913
1Refrigerator Door Panel (Also Order Item 11) (White (R.H.))
1Refrigerator Door Panel (Also Order Item 11) (Almond (R.H.))
1Refrigerator Door Panel (Also Order Item 11) (Almond (L.H.))
1WPL 944919
1Refrigerator Door Panel (Also Order Item 11) (White (L.H.))
2Cap, Hinge Sleeve (2)
3Hole Plug (2)
3Hole Plug (2) (Almond)
4End Cap, Handle (2)
5Handle, Center
6Screw
9Door Gasket, Magnetic
10WP489069 Whirlpool Compactor Screw
14WP939101 Whirlpool Refrigerator Plate
15Interior Door Panel (Refrigerator)
16Trim, Door Shelf
17Compartment Door
18Insert, Screw Cover
19Freezer Door Panel (Also Order Item 30) (Golden Harvest)
19Freezer Door Panel (Also Order Item 30) (Golden Harvest)
19Freezer Door Panel (Also Order Item 11) (Almond (R.H.))
19Freezer Door Panel (Also Order Item 11) (White (R.H.))
19Freezer Door Panel (Also Order Item 11) (White (L.H.))
19Freezer Door Panel (Also Order Item 11) (Almond (L.H.))
20Trim, Door Shelf
23Door Gasket, Magnetic
24Panel, Interior Door (Freezer)
25Trim, Door Shelf
26TAPE, VINYL (3/4 X 108“)
26WP542638 Whirlpool Refrigerator Grease
26350930 Whirlpool White Spray Paint
2672017 Whirlpool Appliance Touch-Up Paint White
26CEMENT, ALUMILASTIC (1 1/4 OZ.)
26WP505587 Whirlpool Refrigerator Sealer
26350956 Whirlpool Spray Assembly
26WP503695 Whirlpool Refrigerator Sealer
26876370 Whirlpool Refrigerator Insulation
26Enamel, Black (1 Qt. Uncut)
26799344 Whirlpool Refrigerator Paint
26350942 Whirlpool Spray Paint
26511873 Whirlpool Refrigerator Paint
26212643 Whirlpool Refrigerator Permagum Sealer
26Almond (Uncut)
26Leveler (Thinner)
26606755 Whirlpool Refrigerator Bag
26WP72107 Whirlpool Touchup
2672032 Whirlpool Touch Up Paint Black
26285006 Whirlpool Spray
26833938 Whirlpool Refrigerator Terminal
26WPL 876029
26WPL 799833
26Nameplate
