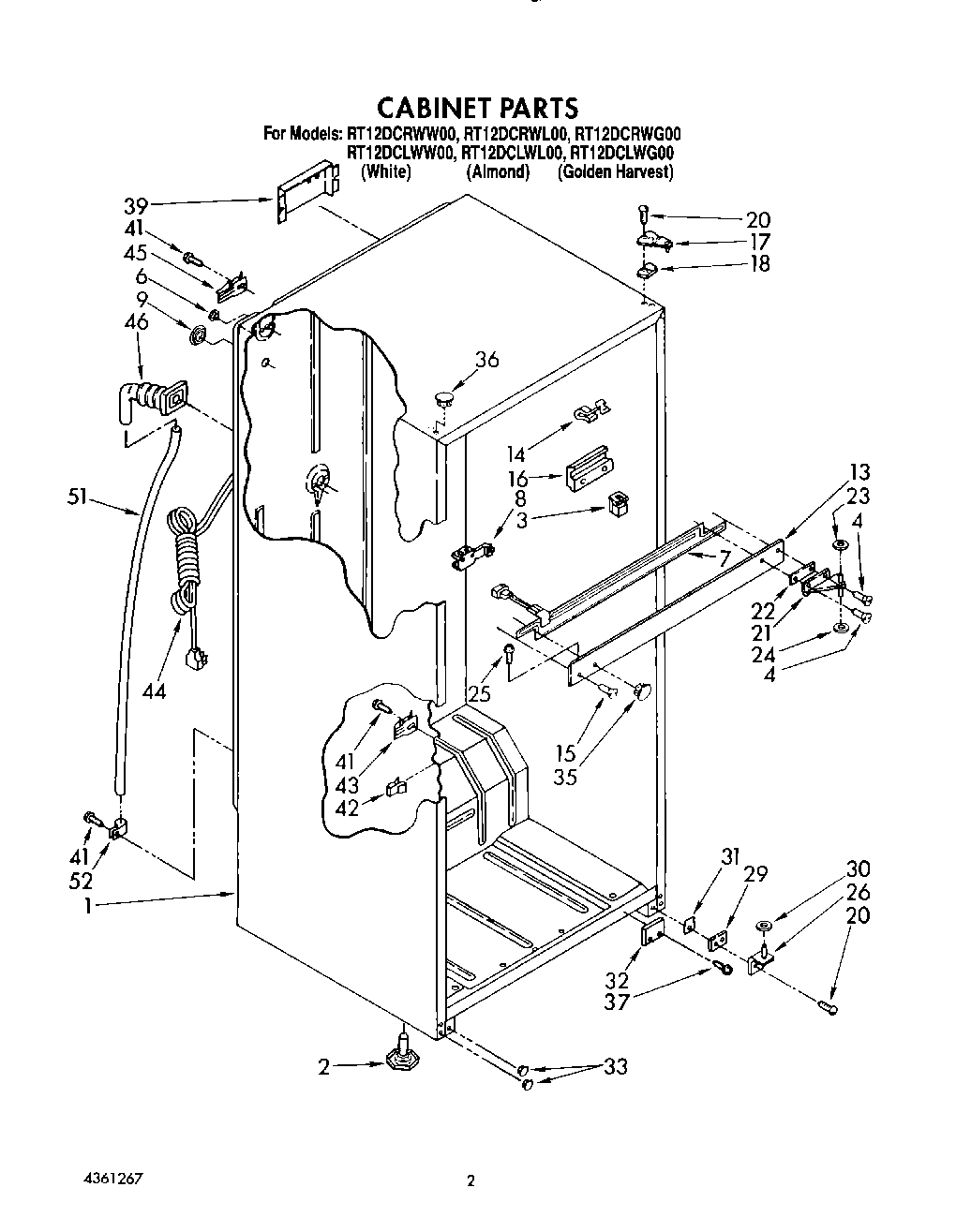

RT12DCRWL00 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	W11117769 Whirlpool Refrigerator Leveler
3	Spacer
4	Screw
6	940014 Whirlpool Refrigerator Primary Button Plug
7	Heater, Mullion
8	Bracket, Center Rail (2)
9	WPL 655411
13	Center, Rail (White)
13	Center, Rail (Almond)
13	Center Rail (Golden Harvest)
14	Breaker, Trim Clip
16	Center, Rail Shim (2)
17	Shim, Hinge Top
18	Shim, Hinge
20	Screw
21	Hinge, Center
22	Shim, Hinge Center
23	WP487802 Whirlpool Refrigerator Washer
24	WP488296 Whirlpool Washer Refrigerator
25	WP488729 Whirlpool Refrigerator Door Screw
26	Hinge, Bottom R.H.
26	Hinge, Bottom L.H.
29	Shim, Bottom Hinge
30	WP487576 Whirlpool Washer
31	Tap Plate, Bottom
32	Tube, Rail Cover (Almond)
32	Tube, Rail Cover (White)
33	WPL 941416
33	Hole Plug (2) (Golden Harvest)
33	Hole, Plug (2) (Almond)
35	Hole Plug (Almond)
35	WPL 1119708
35	Hole Plug (White)
36	Hole Plug (2) (Golden Harvest)
36	Hole Plug (2) (Almond)
36	Hole Plug (2) (White)
37	Screw
39	Cover, Wiring
41	WP489478 Whirlpool Refrigerator Screw
42	W10812038 Whirlpool Refrigerator Clip
43	549193 Whirlpool Refrigerator Power Clamp
44	Cord, Service
45	Clamp
46	Fitting, Drain
51	8316810 Whirlpool Refrigerator Drain Tube
52	488946 Whirlpool Air Conditioner Clamp
