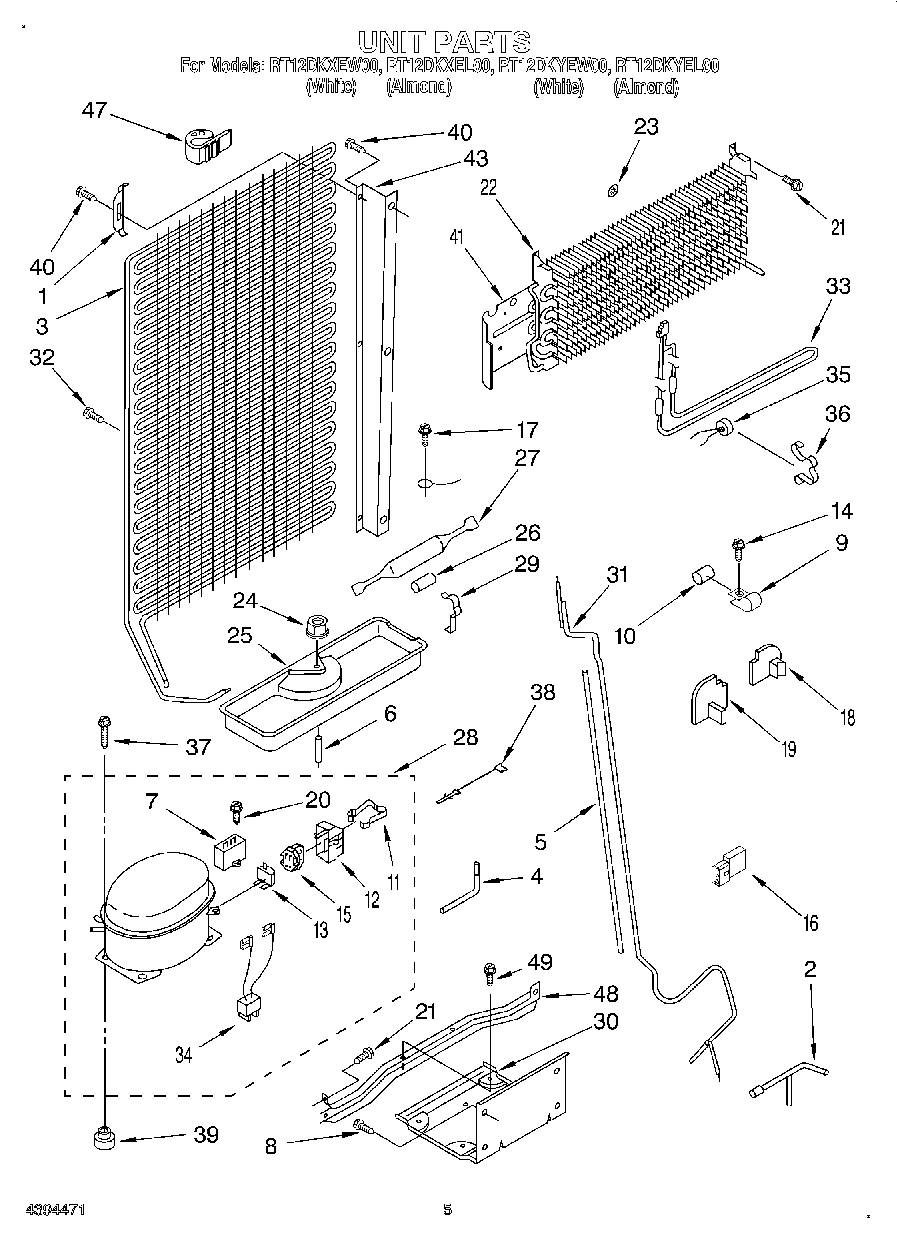

RT12DKXEW00 04 – UNIT

Products

Position	Product
1	Bracket
2	Tube Extension Assembly
3	Condenser Assembly
4	Process Tube
5	WP2002171 Whirlpool Refrigerator Sleeve
6	Spacer
7	Capacitor
8	WP250830 Whirlpool Refrigerator Screw
9	Clamp Tube
10	Dampener (2)
11	Strap
12	Cover
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	4387913 Whirlpool Refrigerator Primary Overload Relay
14	WPW10141625 Whirlpool Refrigerator Screw Assembly
15	Relay (See Overload)
16	WP717253 Whirlpool Dishwasher Connector
17	303776 Whirlpool Dishwasher Screw
18	Side Block, Right Evaporator
19	Side Block, Left Evaporator
20	W11693756 Whirlpool Screw Assembly
21	489340 Whirlpool Refrigerator Screw
22	Evaporator
23	Retainer, Evaporator
24	285002 Whirlpool Nut
25	Tray, Evaporator
26	Restrictor Sleeve
27	W10843121 Whirlpool Refrigerator Tube
28	Installation Kit
28	876765 Whirlpool Primary Mounting Kit Refrigerator
28	W10309988 Whirlpool Refrigerator Compressor
29	Clamp, Dryer
30	Unit Mounting Plate
31	Exchanger, Heat
33	Heater, Defrost
34	WP2172890 Whirlpool Refrigerator Wire
35	Bi-Metal, Defrost
36	Clamp
38	Overload Wiring (White)
38	Overload Wiring (Red)
39	876811 Whirlpool Grommet
40	Screw
41	Heat Shield, Evaporator
43	Channel, Condenser (Left)
43	Channel, Condenser (Right)
47	Bumper (2)
48	Unit Mounting Rail
49	978027 Whirlpool Refrigerator Primary Valve
49	978026 Whirlpool Refrigerator Primary Valve
49	VALVE, ACCESS (5/8“)
49	VALVE, ACCESS (1/2“)
49	WP978025 Whirlpool Refrigerator Valve
49	978030 Whirlpool Refrigerator Valve
49	WP965173 Whirlpool Dishwasher Screw
49	876764 Whirlpool Refrigerator Primary Valve
