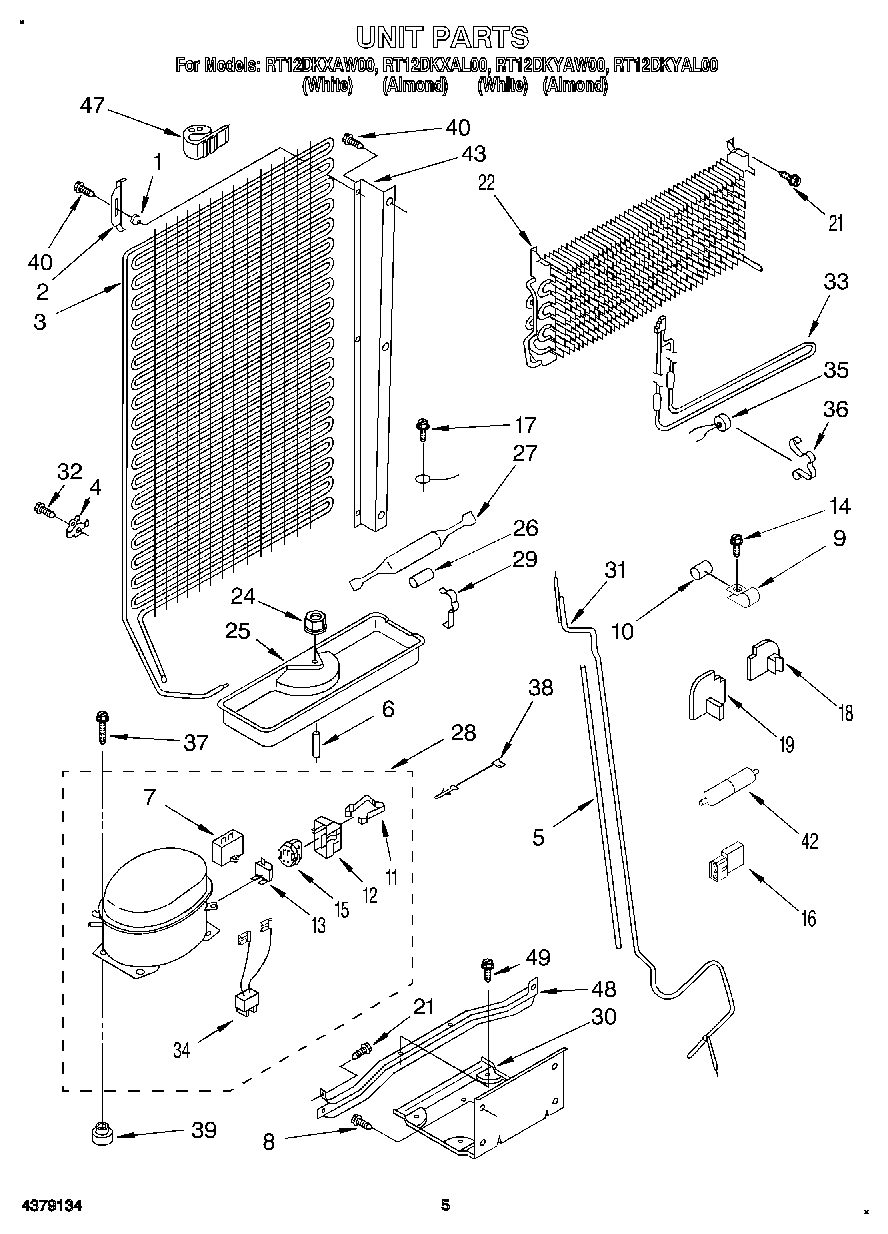

RT12DKYAL00 04 – UNIT

Products

Position	Product
1	Spacer (6)
2	Bracket
3	Condenser & Precooler Assembly
4	Clip, Tube (4)
5	WP2002171 Whirlpool Refrigerator Sleeve
6	Spacer
7	Running Capacitor (Service)
8	WP250830 Whirlpool Refrigerator Screw
9	Clamp Tube
10	Dampener
11	Strap
12	Cover
13	4387913 Whirlpool Refrigerator Primary Overload Relay
13	Overload (Production (Includes Relay))
14	WPW10141625 Whirlpool Refrigerator Screw Assembly
15	Relay (See Overload)
16	WP717253 Whirlpool Dishwasher Connector
17	303776 Whirlpool Dishwasher Screw
18	Side Block, Right Evaporator
19	Side Block, Left Evaporator
21	489340 Whirlpool Refrigerator Screw
22	Evaporator
24	285002 Whirlpool Nut
25	Tray, Evaporator
26	Restrictor Sleeve
27	W10843121 Whirlpool Refrigerator Tube
28	Installation Kit
28	876765 Whirlpool Primary Mounting Kit Refrigerator
28	Compressor (Includes Items 7, 11, 12, 13, 15, 34, 37, 39) (Also Order)
29	Clamp, Dryer
30	Unit Mounting Plate
31	Exchanger, Heat
33	Heater, Defrost
34	WP2172890 Whirlpool Refrigerator Wire
35	Bi-Metal, Defrost
36	Clamp
38	Overload Wiring (Red)
38	Overload Wiring (White)
39	876811 Whirlpool Grommet
40	WP489478 Whirlpool Refrigerator Screw
42	Muffler
43	Channel, Condenser (Left)
43	Channel, Condenser (Right)
47	Bumper (2)
48	Unit Mounting Rail
49	978030 Whirlpool Refrigerator Valve
49	VALVE, ACCESS (5/8“)
49	WP965173 Whirlpool Dishwasher Screw
49	978026 Whirlpool Refrigerator Primary Valve
49	VALVE, ACCESS (1/2“)
49	876764 Whirlpool Refrigerator Primary Valve
49	978027 Whirlpool Refrigerator Primary Valve
49	WP978025 Whirlpool Refrigerator Valve
