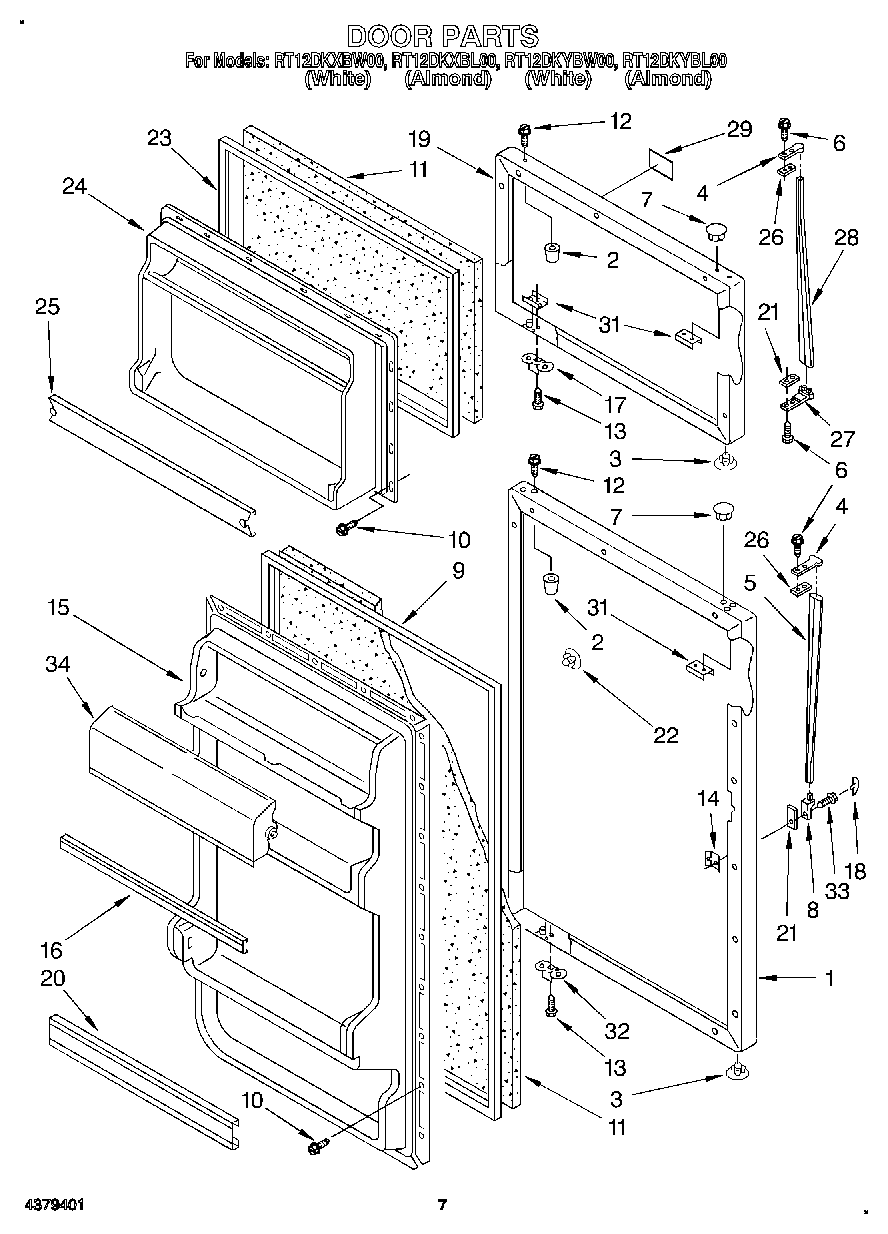

RT12DKYBW00 05 – DOOR, LIT/OPTIONAL

RT12DKYBW00 05 – DOOR, LIT/OPTIONAL

Written by

in

RT12DKYBW00 05 – DOOR, LIT/OPTIONAL

Products

Position	Product
	WPL LIT2151074
	WPL LIT2151371
	WPL LIT2150548
1	Panel, Refrigerator Door (Almond)
1	Panel, Refrigerator Door (White)
2	Cap, Hinge Sleeve (2)
3	Hole Plug (2) (Almond)
3	Hole Plug (2)
4	819342 Whirlpool Refrigerator Endcap Kit
5	Handle, Center
6	WP488920 Whirlpool Refrigerator Screw
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7	Hole Plug (Almond)
9	Door Gasket, Magnetic
10	WP489069 Whirlpool Compactor Screw
12	WP8281206 Whirlpool Refrigerator Screw
13	WP488921 Whirlpool Refrigerator Screw
14	WP939101 Whirlpool Refrigerator Plate
15	Interior Door Panel (Refrigerator)
16	TRIM-DOOR
17	Bracket, Door Stop
18	WP1101634 Whirlpool Refrigerator Cover
19	Panel, Freezer Door (Also Order Item 21) (Almond)
19	Panel, Freezer Door (Also Order Item 21) (White)
20	Trim, Door Shelf
21	Spa
22	Hole Plug, Handle (Almond)
22	WP2189000 Whirlpool Refrigerator Handle Plug
23	Door Gasket, Magnetic
24	Interior Door Panel (Freezer)
26	Shim, Handle
28	Handle, Center
29	Nameplate
31	W10833053 Whirlpool Refrigerator Plate
32	Bracket, Door Stop
33	WP488729 Whirlpool Refrigerator Door Screw
34	606755 Whirlpool Refrigerator Bag
34	511873 Whirlpool Refrigerator Paint
34	350942 Whirlpool Spray Paint
34	212643 Whirlpool Refrigerator Permagum Sealer
34	350930 Whirlpool White Spray Paint
34	Almond (Uncut)
34	Leveler (Thinner)
34	WP72107 Whirlpool Touchup
34	799344 Whirlpool Refrigerator Paint
34	72017 Whirlpool Appliance Touch-Up Paint White
34	350956 Whirlpool Spray Assembly
34	72032 Whirlpool Touch Up Paint Black
34	Door Reversal Instructions
34	285006 Whirlpool Spray
34	WPL 799833
34	WPL 876029
34	Enamel, Black (1 Qt. Uncut)
34	CEMENT, ALUMILASTIC (1 1/4 OZ.)
34	TAPE, VINYL (3/4 X 108“)
34	WP542638 Whirlpool Refrigerator Grease
34	WP505587 Whirlpool Refrigerator Sealer
34	WP503695 Whirlpool Refrigerator Sealer
34	876370 Whirlpool Refrigerator Insulation
34	833938 Whirlpool Refrigerator Terminal
34	Compartment Door
