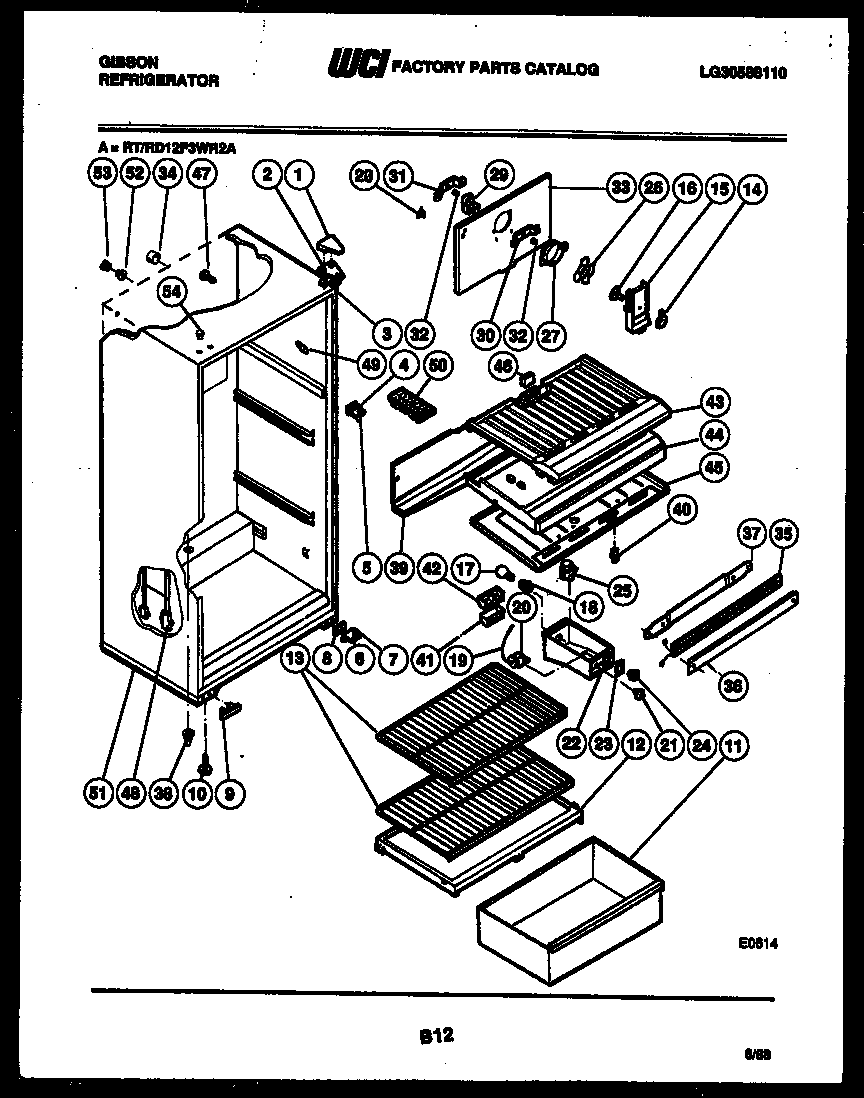

RT12F3WR2A 03 – CABINET PARTS

Products

Position	Product
1	COVER, TOP HINGE, AVOCADO
1	COVER, TOP HINGE, ALMOND
1	COVER HINGE, WHEAT
1	COVER HINGE, WHITE
1	COVER HINGE, COFFEE
2A	WCI G103903
2B	241710601 Frigidaire Refrigerator Screw
2	BRACKET, TOP HINGE
3	WCI G183861
5A	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
5	BRACKET, HINGE CENTER
6B	TAPPING, PLATE (2)
6	BRACKET, HINGE, LOWER
7	5303001321 Frigidaire Refrigerator Lower Hinge Pin
8	SHIM, HINGE
9	WCI G166912
10A	NUT, ANCHOR (2)
10	LEG-LEVELING (2)
11	WCI G162973-33
12	COVER-CRISPER
13	WCI G172174-01
14	KNOB-DAMPER
15	WCI G163061-32
16	DAMPER FAN COVER
16A	NUT, DAMPER MOUNTING
17	316538904 Frigidaire Oven Lamp Light
18	SOCKET LIGHT
19	TUBE
20	CONTROL-COLD
20A	WCI G107080
21	KNOB-TEMP CONTROL
22	WCI G174765-03
22A	5304455650 Frigidaire Refrigerator Screw
23	LABEL
24	SWITCH SLIDE
25	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
25A	5304455649 Frigidaire Refrigerator Screw
26	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
27	RING, FAN ORIFICE
28A	5304455651 Frigidaire Refrigerator Screw
28	WCI G164571
29	5300158289 Frigidaire Evaporator Fan Motor
30	WCI G185302
31	WCI G185303
32	G187559 Frigidaire Refrigerator Bushing
33	COVER-EVAPORATOR COIL (2)
33A	NUT, ORIFICE (2)
34	TUBE, INSULATION (2)
35	WCI G187921
36	MULLION
36	WCI G174520-10
36C	SPACER-MULLION MOUNTING (2) (NON-ILLUSTRATED)
36B	WASHER (2)
36	WCI G174520-09
36	WCI G174520-11
36	WCI G174520-08
36A	SCREW, BRACKET MOUNTING (4)
37	CLAMP, MULLION MOUNTING
38	CLIP (4)
39	WCI G163216
40	5309918806 Frigidaire Refrigerator Light Switch Door
41	WCI G162178
42	DEFLECTOR AIR
43	BOTTOM ( FREEZER )
44	DIVIDER-COMPARTMENT
