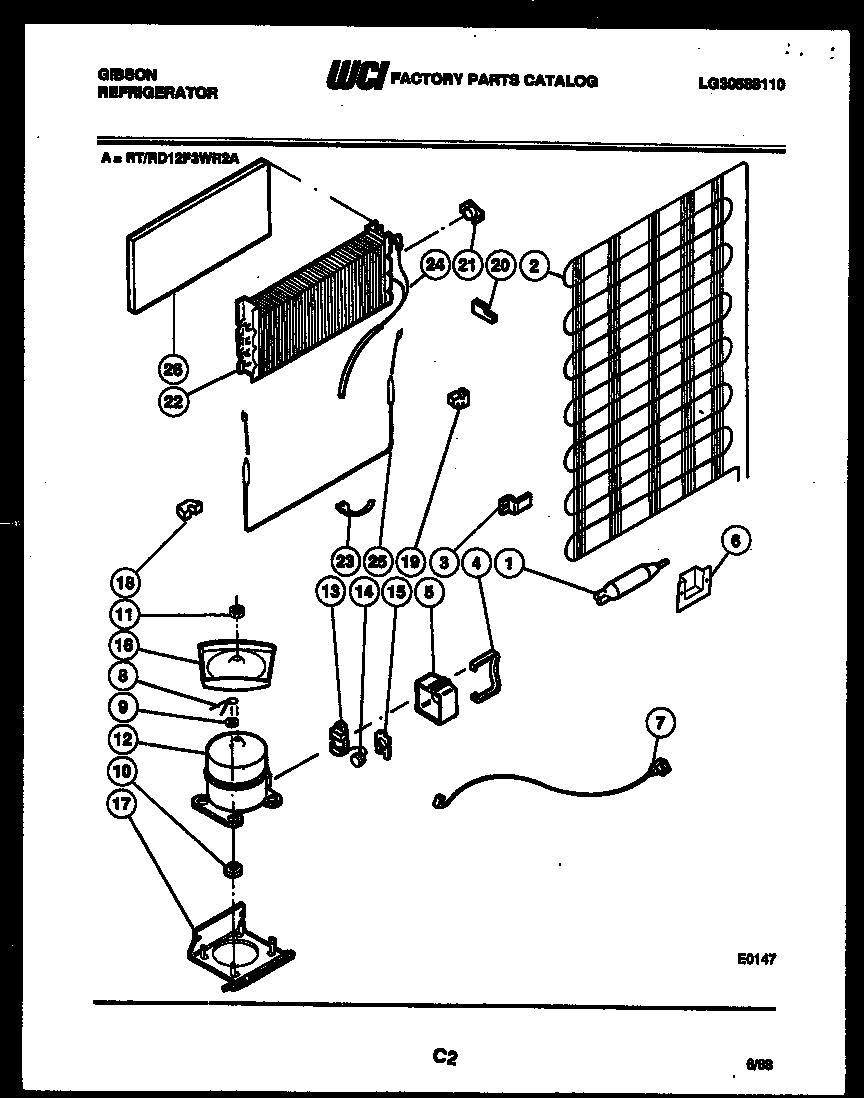

RT12F3WR2A 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

RT12F3WR2A 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

RT12F3WR2A 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
15303305677 Frigidaire Replacement Filter Dryer Filters
2WCI G164924
3BRACKET-CONDENSER MOUNTING (4)
45303006412 Frigidaire Refrigerator Cover Mounting Strap
6WCI G183584
7CORD, SERVICE
8CLIP, COMPRESSOR MOUNTING (4)
9WASHER, COMPRESSOR MOUNTING (4)
10218513300 Frigidaire Refrigerator Compressor Mount Grommet
11NUT, LOCK
12WCI G186043
13WCI G182225-15
14WCI G187544
15RETAINER, OVERLOAD
16DEFROST PAN
17WCI G162822
18BLOCK, LEFT SIDE
19BLOCK, EVAPORATOR, RH
20PLUG, EVAPORATOR INSULATION BLOCK, R H
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22EVAPORATOR
235308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
24WCI G149013
25WCI G162432-01
26INSULATOR
26BHOT TUBE REPAIR KIT (NON-ILLUSTRATED)
26CPAN RETAINER KIT-SERVICE
26AHARNESS-COMPRESSOR
