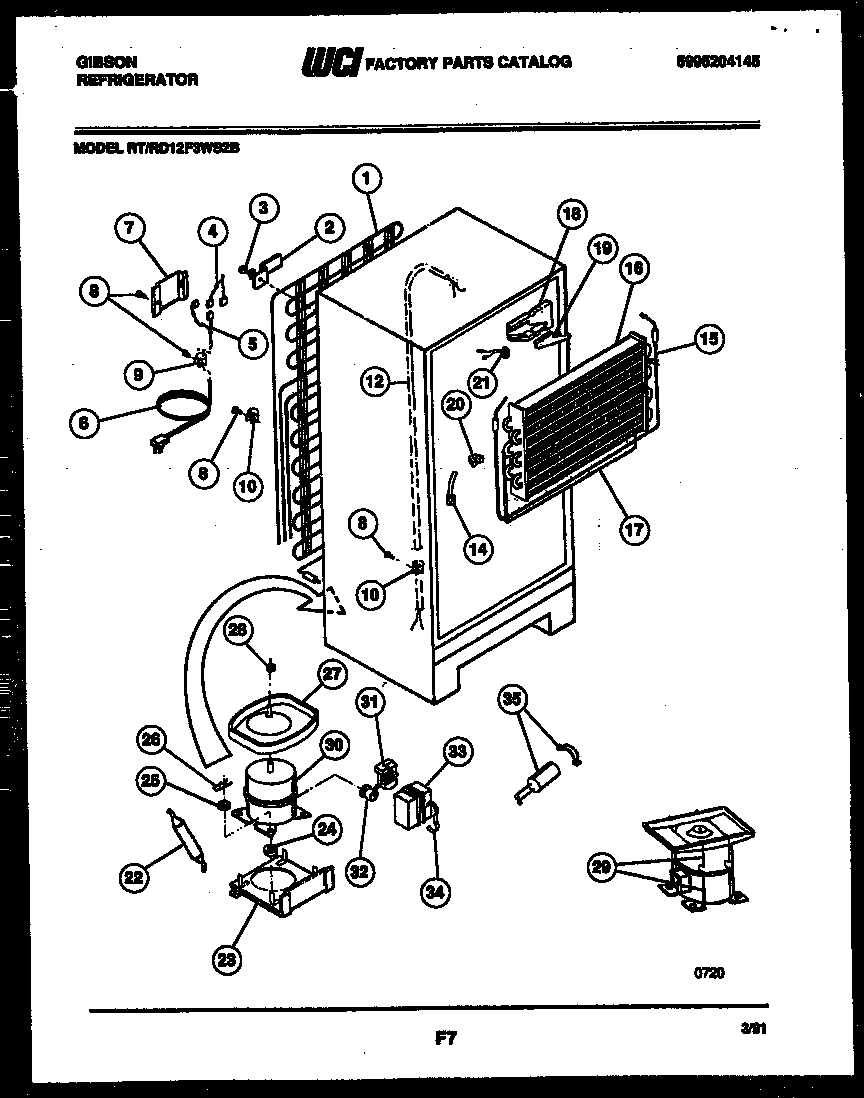

RT12F3WS2B 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

RT12F3WS2B 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

RT12F3WS2B 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*44824HOT TUBE REPAIR KIT-SERVICE
*44824STRAP CAPACITOR
1WCI 5308004174
2BRACKET-MTG (4)
35308000039 Frigidaire Refrigerator Screw
3AWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
4WCI 3019094
5WIRING HARNESS, COMPRESSOR,
6CORD-ELECTRIC POWER
7WCI 5303001197
85304455651 Frigidaire Refrigerator Screw
95303001199 Frigidaire Refrigerator Wiring Harness Clamp
105308000133 Frigidaire Refrigerator Clamp
12WCI 3201663
145308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
15WCI 5303001362
16WCI 5303272032
17INSULATOR-EVAP, PLASTIC
18INSULATION BLOCK, RH
19INSULATION PLUG, RH
20INSULATION BLOCK, LH
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
225303305677 Frigidaire Replacement Filter Dryer Filters
23WCI 5308009596
24218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WASHER-COMPR MTG
26CLIP – COMPRESSOR MTG
27A5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
27PAN-DEFROST DRAIN, ORIG/SVCE COMPR
28Nut,lock `1/4-20 ,drain pan mtg
29PAN RETAINER KIT, SERVICE
30COMPRESSOR WITH ELECTRICALS
31RELAY-TL
32WCI 5303272031
345303006412 Frigidaire Refrigerator Cover Mounting Strap
35WCI 5303018427
