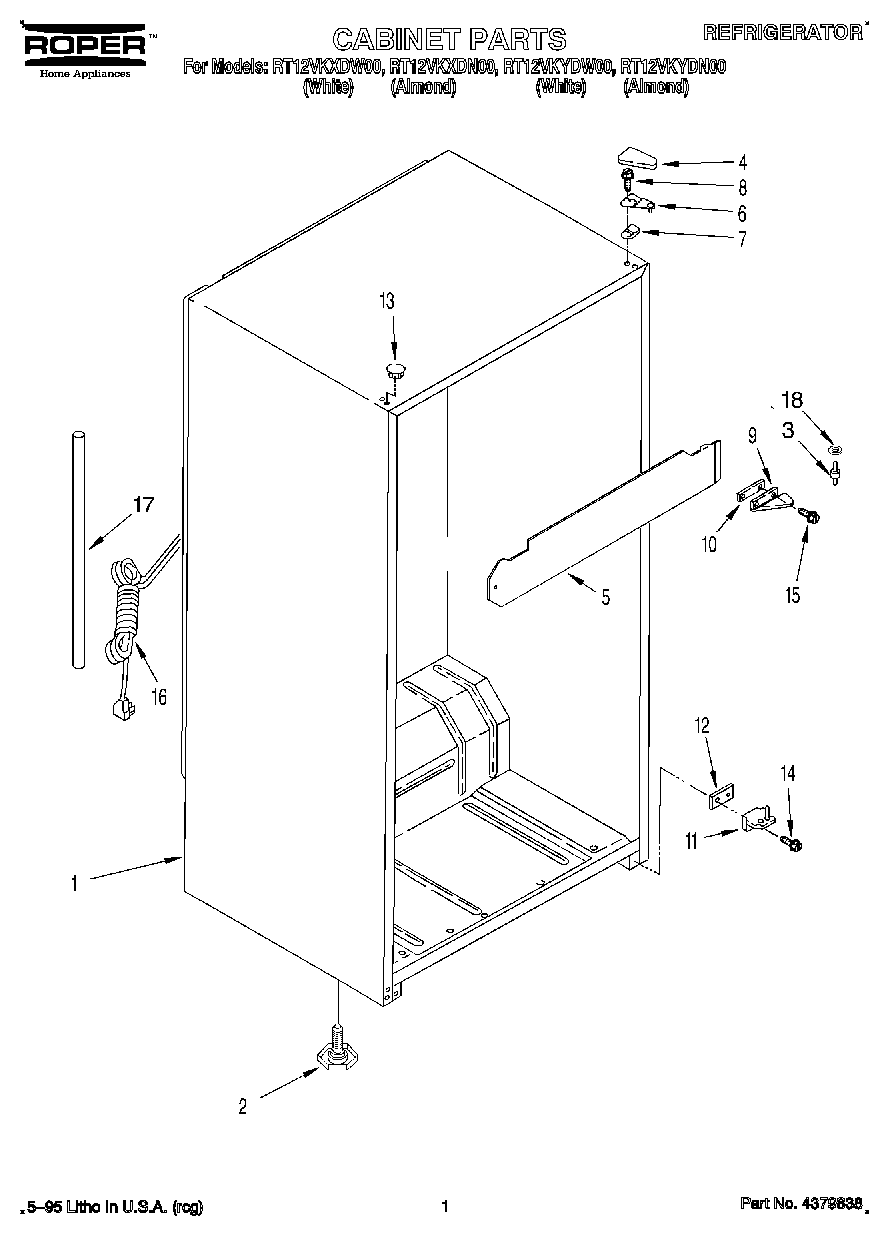

RT12VKXDN00 01 – CABINET

Products

PositionProduct
1Cabinet (Not A Serviceable Part)
2W11117769 Whirlpool Refrigerator Leveler
3Pin, Center Hinge
43-80838-003 Whirlpool Refrigerator Cover
5Center Rail
5Center Rail (Almond)
6Hinge, Top (Almond Model)
6Hinge, Top (White Model)
74390489 Whirlpool Refrigerator Shim
8Screw
9Center Hinge (Almond Model)
9Center Hinge
10Shim, Center Hinge
11Bottom Hinge (White Model)
11Bottom Hinge (Almond Model)
12Shim, Bottom Hinge
13WP2189000 Whirlpool Refrigerator Handle Plug
15WP999367 Whirlpool Refrigerator Screw
16Cord, Service
17Tube Cover, Heat Exchanger
18W10851331 Whirlpool Refrigerator Washer
