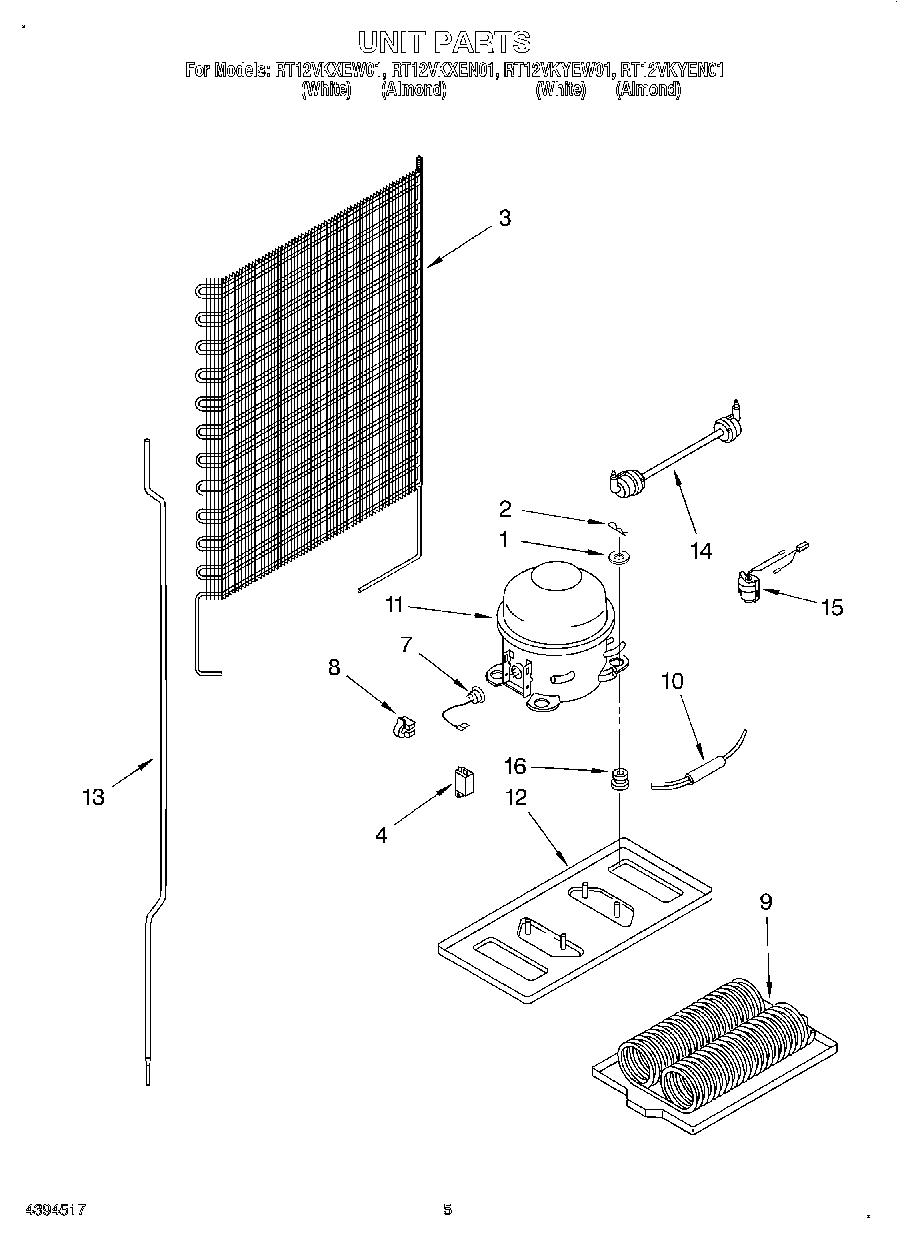

| 1 | Washer |
| 2 | Clip, Hitch Pin |
| 3 | Condenser |
| 4 | WPW10662129 Whirlpool Refrigerator Run Capacitor |
| 7 | 2183409 Whirlpool Refrigerator Overload |
| 8 | Relay |
| 9 | Evaporator |
| 10 | W10843121 Whirlpool Refrigerator Tube |
| 11 | W10309989 Whirlpool Refrigerator Compressor |
| 12 | Unit Mounting Plate |
| 13 | Exchanger, Heat |
| 14 | Heater, Defrost |
| 15 | Bi-Metal, Defrost |
| 16 | Grommet, Mounting Compressor |
