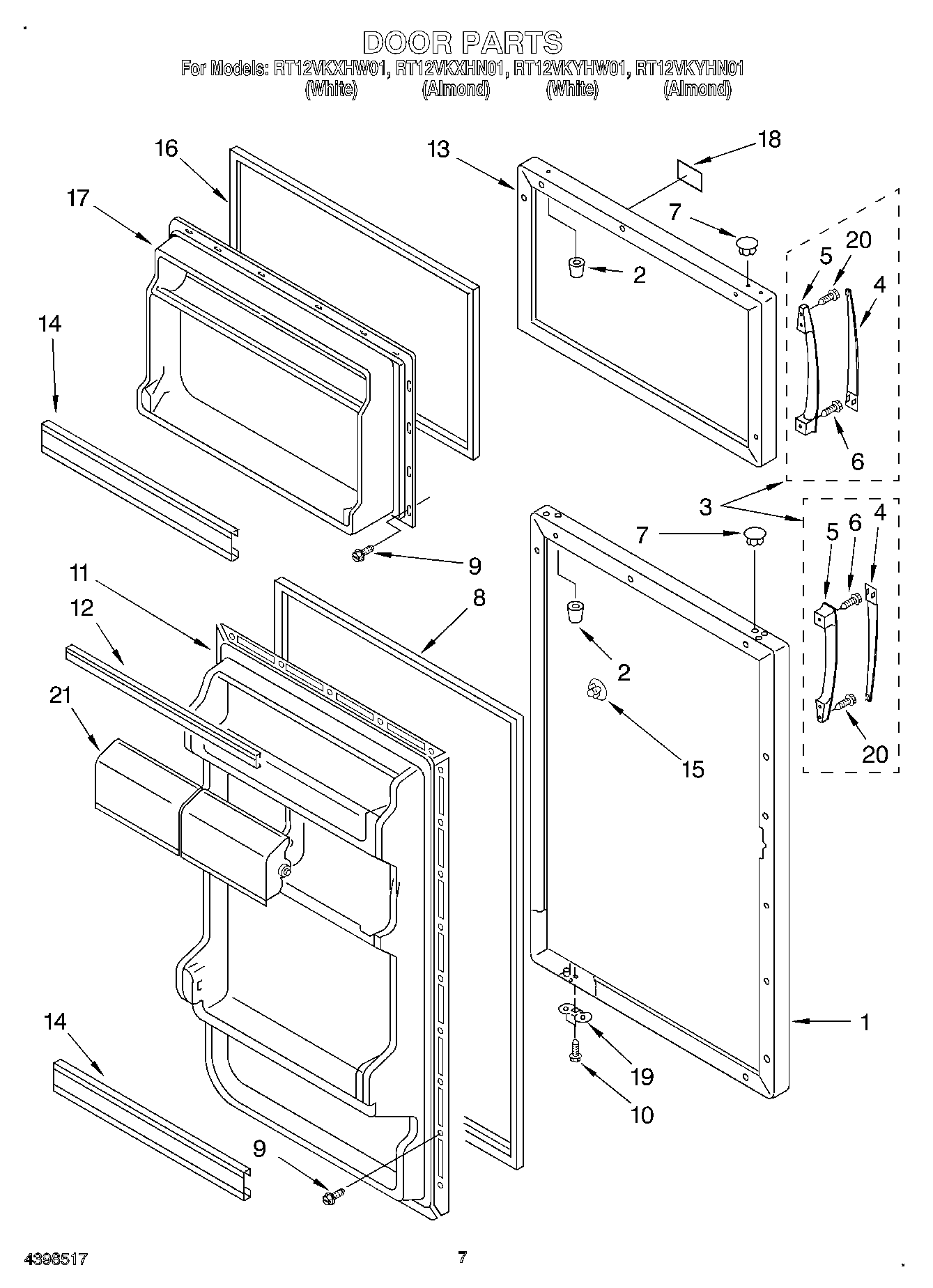

RT12VKXHN01 04 – DOOR, LIT/OPTIONAL

Products

Position	Product
	Literature Parts (Energy Label)
	Literature Parts (Owner`s Manual)
1	Refrigerator Door Panel (Almond)
1	Refrigerator Door Panel (White)
2	4390731 Whirlpool Refrigerator Hinge Bushing
3	Handle Kit (Almond)
3	Handle Kit (White)
4	Insert, Handle (Almond)
4	Insert, Handle (White)
5	Handle (White)
5	Handle (Almond)
6	Screw
7	Hole Plug (White)
7	Hole Plug (Almond)
8	WP4390534 Whirlpool Refrigerator Door Gasket
9	4390598 Whirlpool Refrigerator Screw
10	Screw
11	Exterior Door Panel (Includes Insulation)
12	Trim, Door Shelf
13	Freezer Door Panel (White)
13	Freezer Door Panel (Almond)
14	Trim, Door Shelf
15	WP2189000 Whirlpool Refrigerator Handle Plug
16	Door Gasket, Magnetic (Almond Model)
16	WP4390530 Whirlpool Refrigerator Door Gasket
17	Interior Door Panel (Freezer)
18	Nameplate
19	Bracket, Door Stop
20	WP3-24004-109 Whirlpool Refrigerator Screw
21	350930 Whirlpool White Spray Paint
21	350942 Whirlpool Spray Paint
21	Almond (Uncut)
21	WP72107 Whirlpool Touchup
21	799344 Whirlpool Refrigerator Paint
21	72017 Whirlpool Appliance Touch-Up Paint White
21	350956 Whirlpool Spray Assembly
21	Compartment Door
