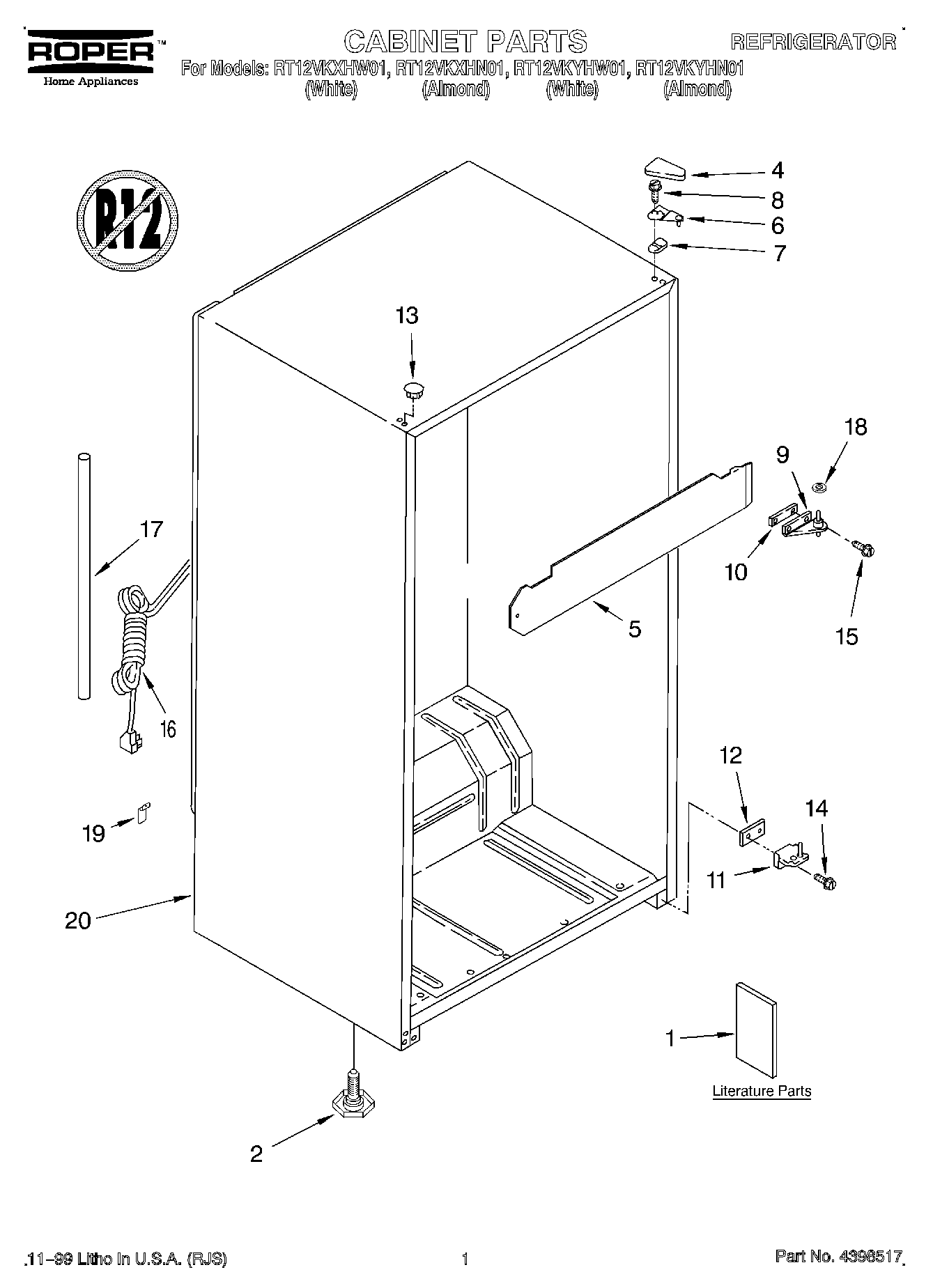

RT12VKXHW01 01 – CABINET, LITERATUREadmin2025-04-26T12:50:26+00:00RT12VKXHW01 01 – CABINET, LITERATURE ProductsPositionProduct1Literature Parts (Energy Label)1Literature Parts (Owner`s Manual)2W11117769 Whirlpool Refrigerator Leveler43-80838-003 Whirlpool Refrigerator Cover5Center Rail6Top, Hinge74390489 Whirlpool Refrigerator Shim8WP8204624 Whirlpool Bolt9Center Hinge10Shim, Center Hinge11Bottom Hinge (Almond Model)11Bottom Hinge (White Model)12Shim, Bottom Hinge13WP2189000 Whirlpool Refrigerator Handle Plug13Hole Plug (Almond)15WP999367 Whirlpool Refrigerator Screw16Cord, Service17Tube Cover, Heat Exchanger18Washer, Door Adjust19Clip20Cabinet (Not A Serviceable Part)
