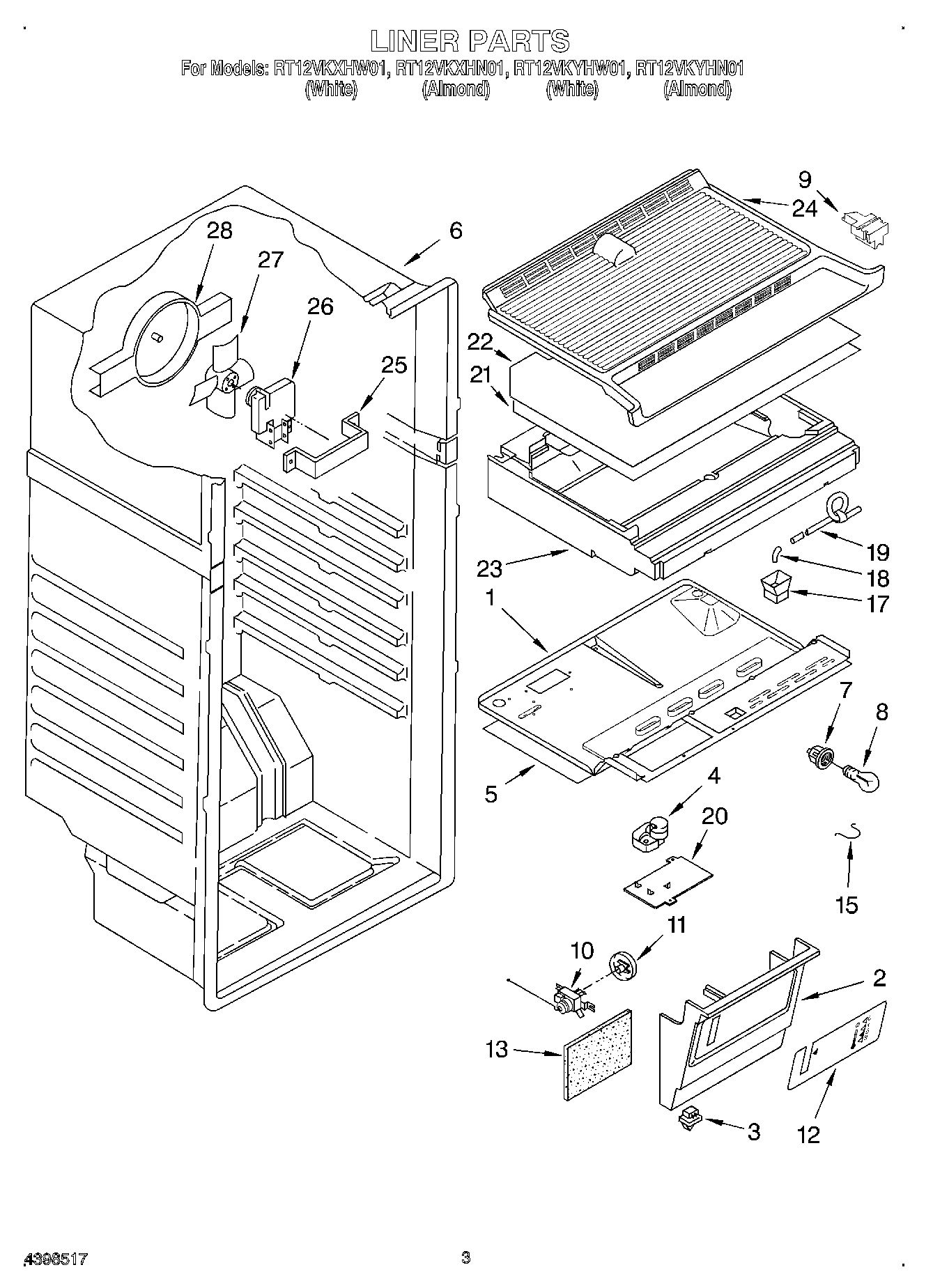

| 1 | Bottom, Compartment Separator |
| 2 | Box, Control |
| 3 | W11384469 Whirlpool Door Switch |
| 4 | Timer, Defrost |
| 5 | Heat Shield |
| 6 | Liner (Not A Serviceable Part) |
| 7 | Socket, Light |
| 8 | RANGE ONLY 40W 120V APPL BULB |
| 9 | Plug, Evaporator |
| 10 | Thermostat |
| 11 | Knob, Thermostat |
| 12 | Insert |
| 13 | Insulation |
| 15 | Clip |
| 17 | Drain Cup |
| 18 | Elbow, Drain |
| 19 | Drain Tube |
| 20 | Plate, Defrost Timer |
| 21 | Shield, Heater (Aluminum) |
| 22 | Cover, Evaporator Housing |
| 23 | Insulation, Compartment |
| 24 | Separator, Compartment (Top) |
| 25 | Bracket, Motor |
| 26 | Motor, Fan |
| 27 | Blade, Fan |
| 28 | Scroll, Fan |
