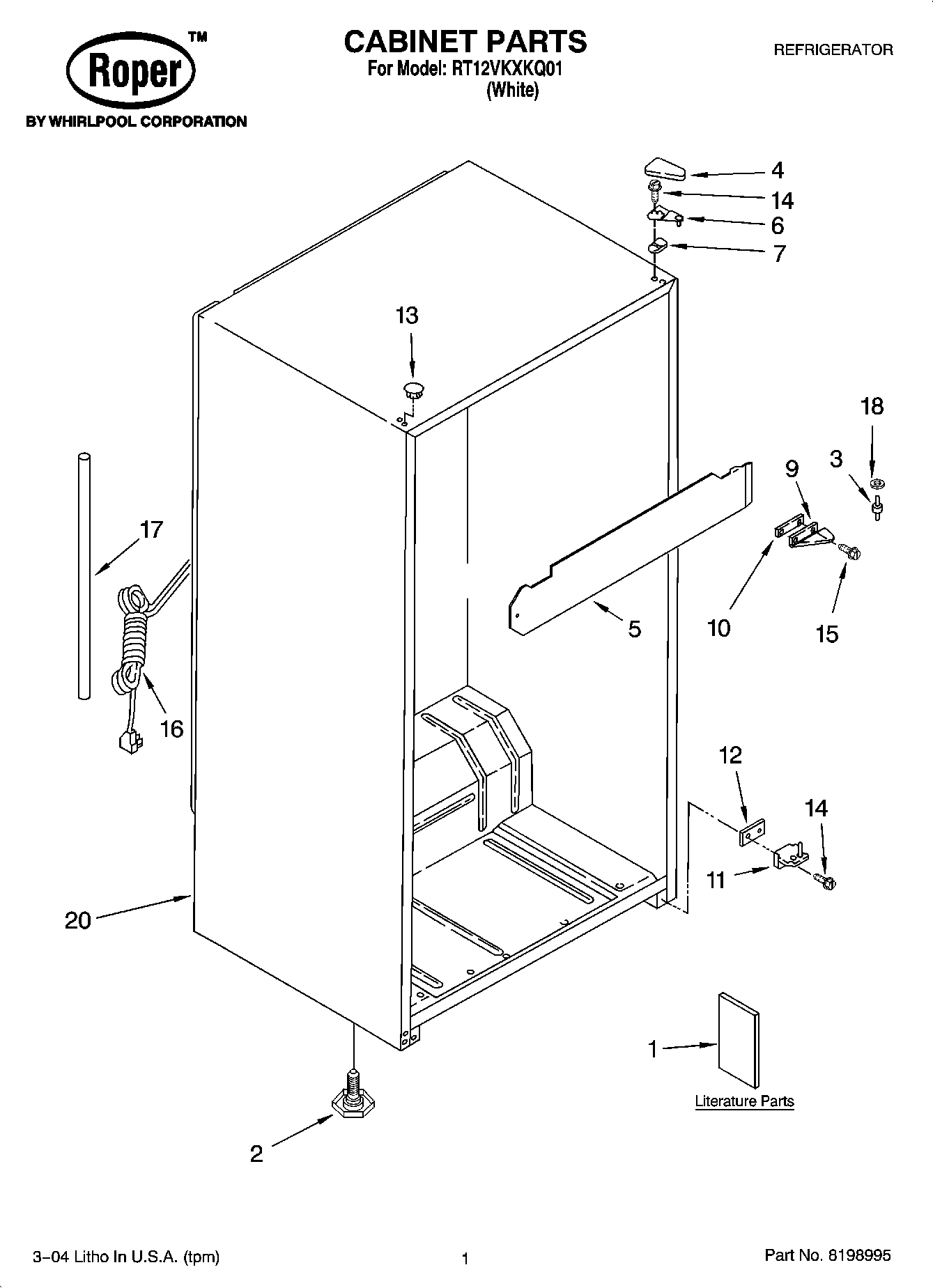

RT12VKXKQ01 01 – CABINET PARTS

RT12VKXKQ01 01 – CABINET PARTS

Written by

in

RT12VKXKQ01 01 – CABINET PARTS

Products

PositionProduct
1Literature Parts (Owner`s Manual)
1Literature Parts (Energy Label)
2W11117769 Whirlpool Refrigerator Leveler
3Pin, Center Hinge
43-80838-003 Whirlpool Refrigerator Cover
5Center Rail
6Top, Hinge (White)
74390489 Whirlpool Refrigerator Shim
9Center Hinge (White)
10Shim, Center Hinge
11Bottom Hinge (White)
12Shim, Bottom Hinge
13Hole Plug (White)
15WP999367 Whirlpool Refrigerator Screw
16Cord, Service
17Tube Insulation, Heat Exchanger
18Washer, Door Adjust
20Cabinet (Not A Serviceable Part)
