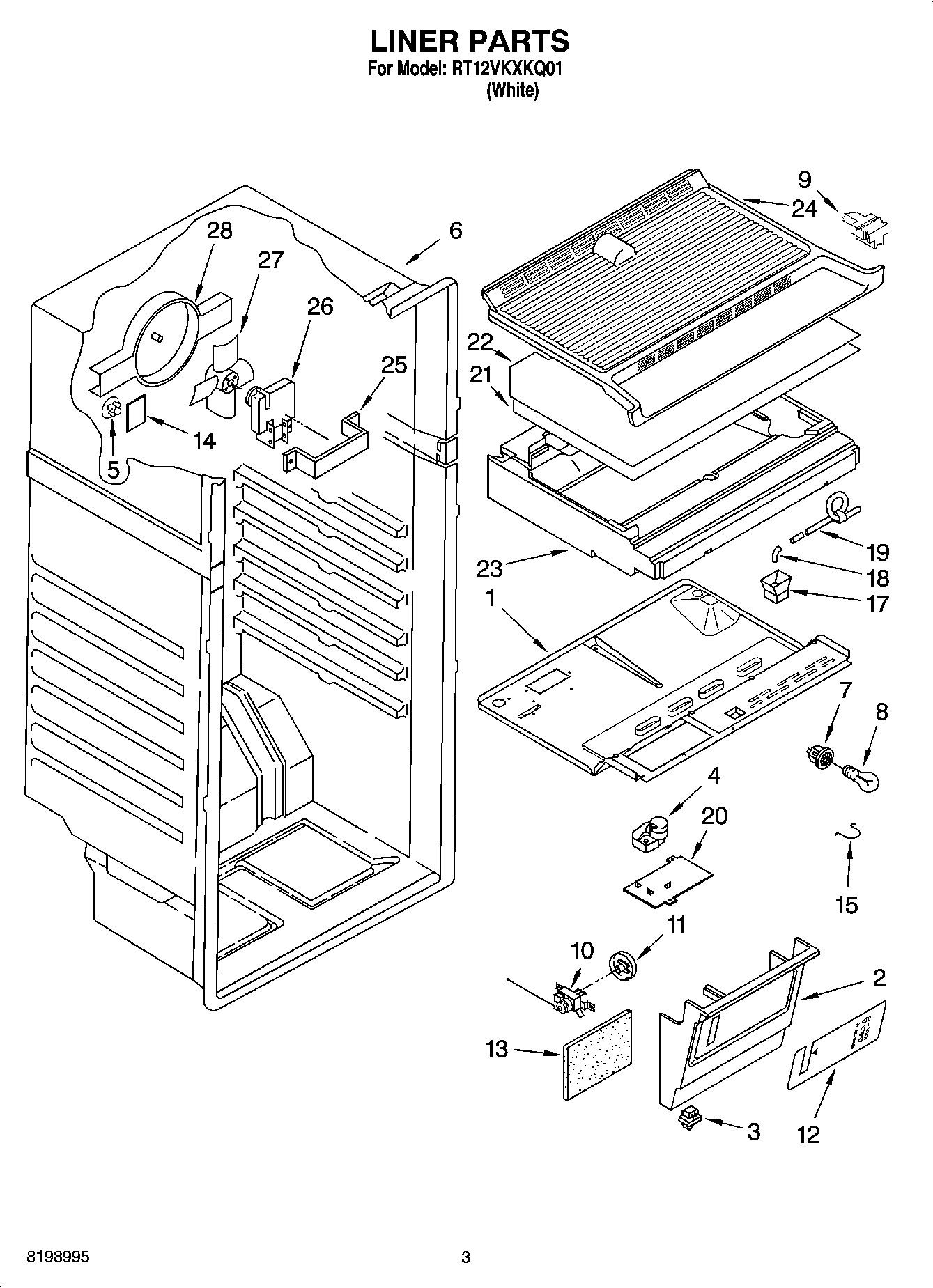

RT12VKXKQ01 02 – LINER PARTS

Products

Position	Product
1	Bottom, Compartment Separator
2	Box, Control
3	W11384469 Whirlpool Door Switch
4	Timer, Defrost
5	WP2189000 Whirlpool Refrigerator Handle Plug
6	Liner (Not A Servicable Part)
7	Lamp, Socket
8	RANGE ONLY 40W 120V APPL BULB
9	Plug, Evaporator
10	Thermostat
11	Knob, Thermostat
12	Insert
13	Insulation
14	1-60123-001 Whirlpool Refrigerator Cover
15	Clip
17	Drain Cup
18	Elbow, Drain
19	Drain Tube
20	Plate, Defrost Timer
21	Shield, Heater (Aluminum)
22	Cover, Evaporator Housing
23	Insulation, Compartment
24	Separator, Compartment (Top)
25	Bracket, Motor
26	Motor, Fan
27	Blade, Fan
28	Scroll, Fan
