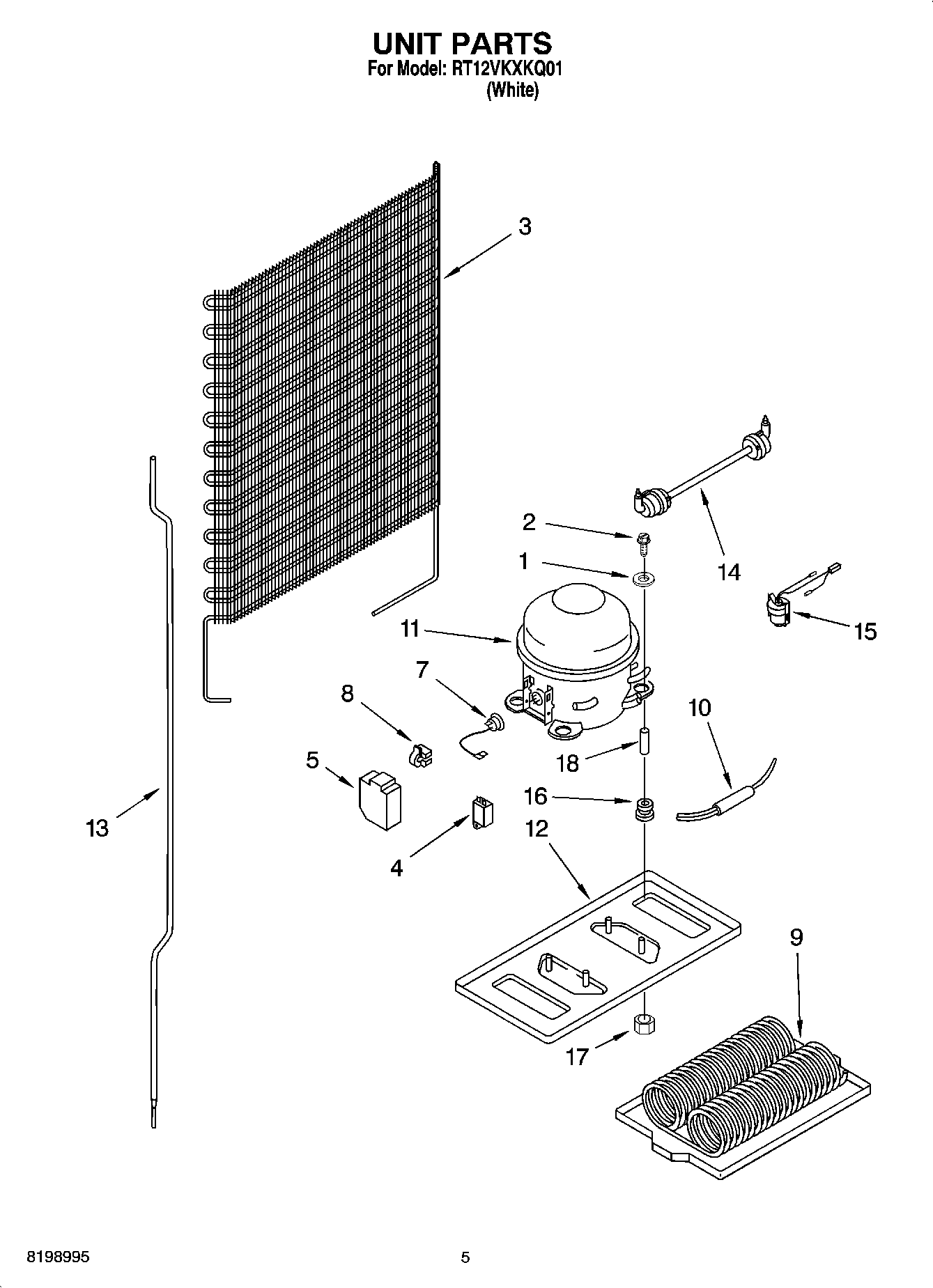

RT12VKXKQ01 03 – UNIT PARTS

Products

Position	Product
1	Washer
2	Screw, Compressor Mounting
3	Condenser
4	WPW10662129 Whirlpool Refrigerator Run Capacitor
5	4356777 Whirlpool Term Cover
7	WP2214067 Whirlpool Refrigerator Overload Relay
8	Relay
9	Evaporator
10	W10843121 Whirlpool Refrigerator Tube
11	W10309989 Whirlpool Refrigerator Compressor
12	Unit Mounting Plate
13	Exchanger, Heat
14	Heater, Defrost
15	Bi-Metal, Defrost
16	Grommet, Mounting Compressor
17	Nut
18	4356846 Whirlpool Refrigerator Sleeve
18	REFRIGERANT CHARGE 3.0 oz. (R-134A)
