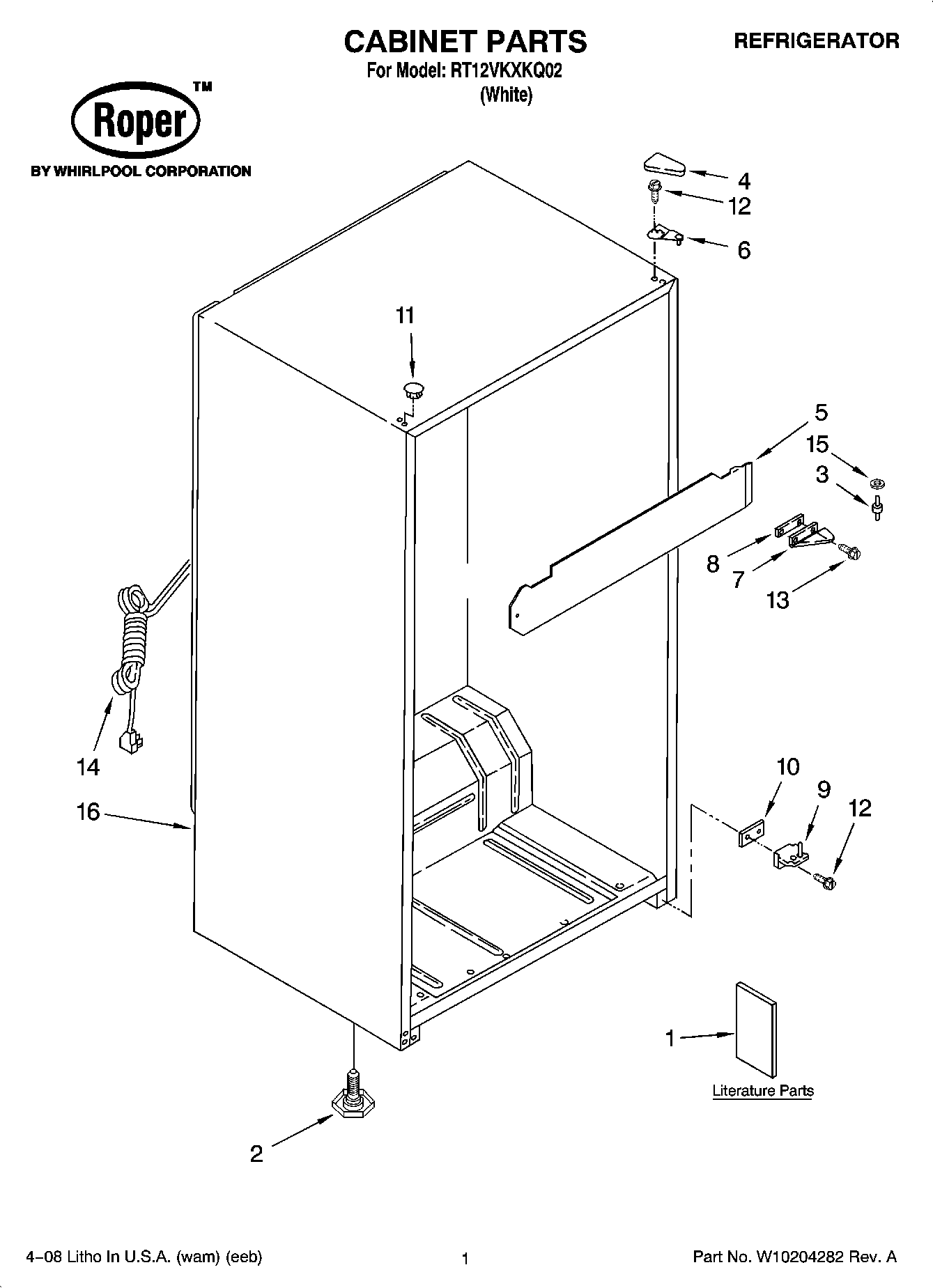

RT12VKXKQ02 01 – CABINET PARTS

Products

PositionProduct
1Energy Label
1Owner`s Manual
2W11117769 Whirlpool Refrigerator Leveler
3Pin, Center Hinge
43-80838-003 Whirlpool Refrigerator Cover
5Center Rail
6Top Hinge (White)
7Center Hinge (White)
8Shim, Center Hinge
9Bottom Hinge (White)
10Shim, Bottom Hinge
11Hole Plug (White)
13WP999367 Whirlpool Refrigerator Screw
14Cord, Service
15W10851331 Whirlpool Refrigerator Washer
16Cabinet, (Not A Serviceable Part)
