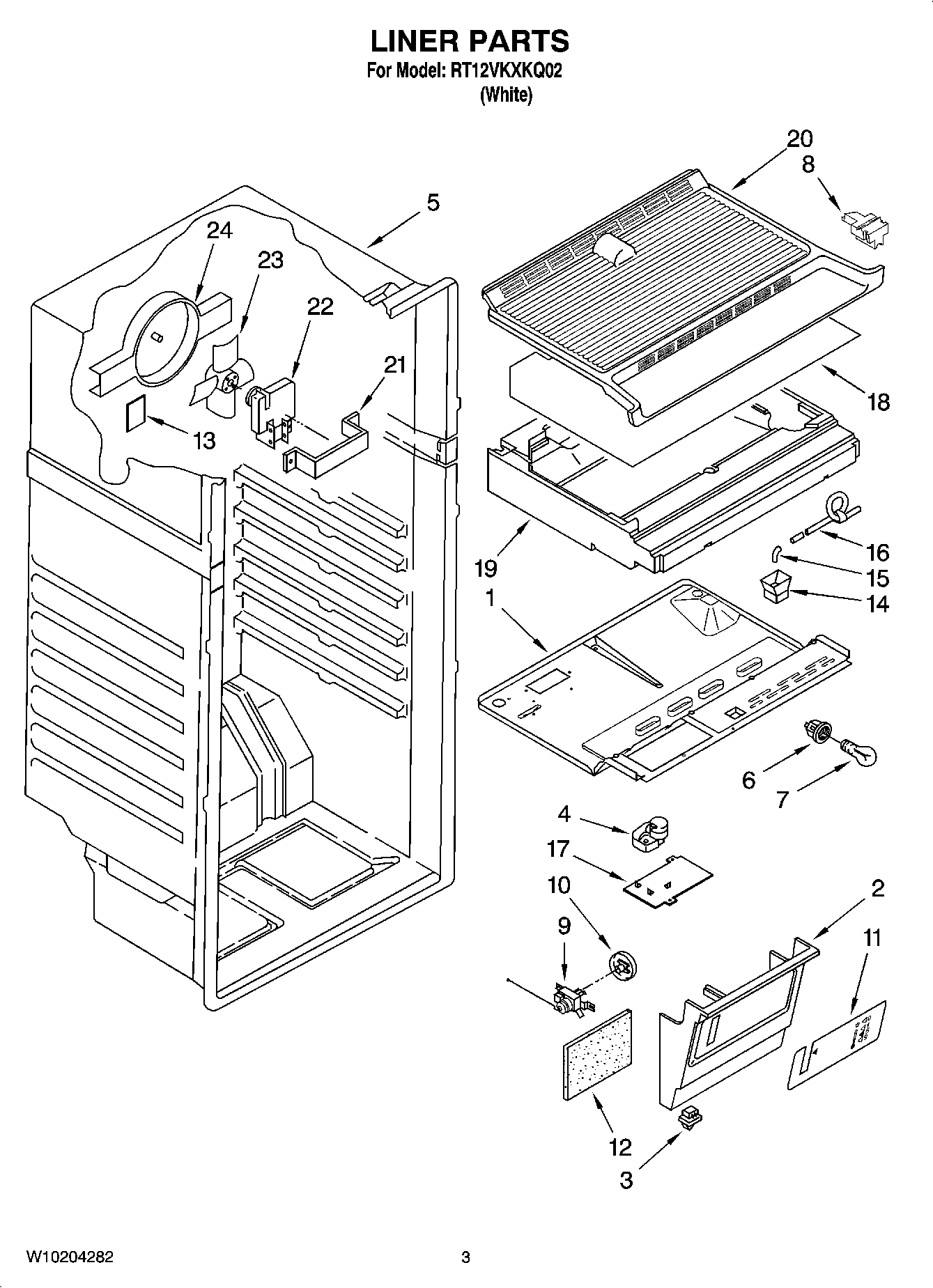

RT12VKXKQ02 02 – LINER PARTS

Products

Position	Product
1	Bottom, Compartment Separator
2	Box, Control
3	W11384469 Whirlpool Door Switch
4	Timer, Defrost
5	Liner (Not A Servicable Part)
6	Lamp, Socket
7	RANGE ONLY 40W 120V APPL BULB
8	Plug, Evaporator
9	Thermostat
10	Knob, Thermostat
11	Insert
12	Insulation
13	1-60123-001 Whirlpool Refrigerator Cover
14	Drain Cup
15	Elbow, Drain
16	Drain Tube
17	Plate, Defrost Timer
18	Cover, Evaporator Housing
19	Insulation, Compartment
20	Separator, Compartment (Top)
21	Bracket, Motor
22	Motor, Fan
23	Blade, Fan
24	Scroll, Fan
